48 S650 Operation & Maintenance Manual
INSTRUMENT PANEL IDENTIFICATION (CONT’D)

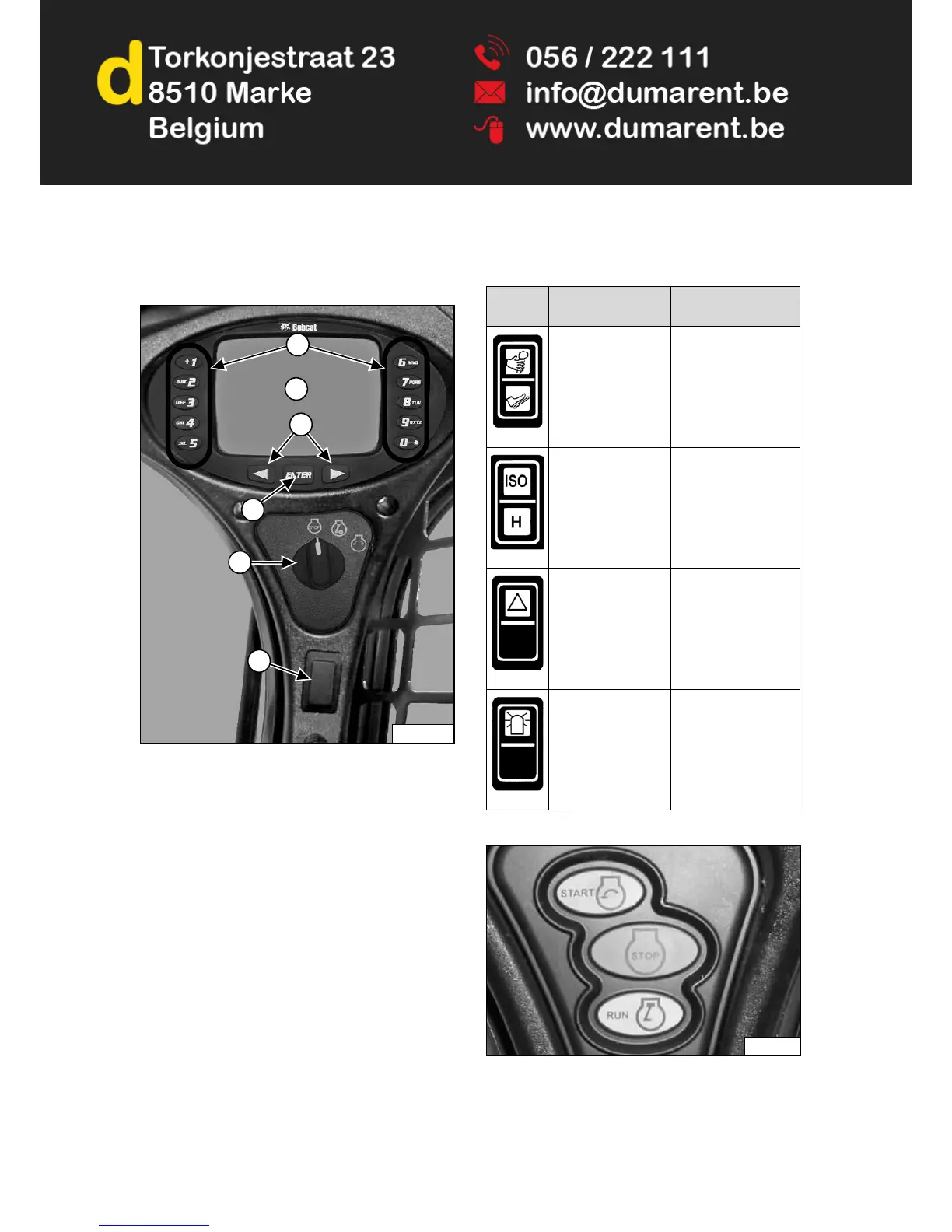

Right Panel (Deluxe Instrumentation Panel)
Figure 15
This machine may be equipped with a Deluxe
Instrumentation Panel [Figure 15].
1. Keypad (1 through 0): The keypad has two
functions:
- To enter a number code (password) to allow starting
the engine.
- To enter a number as directed for further use of the
display screen.
2. Display Screen: The Display Screen is where all
system setup, monitoring and error conditions are
displayed.
3. Scroll Buttons: Used to scroll through display screen
choices.
4. ENTER Button: Used to make selections on the
display screen.
5. Key Switch: Used to turn the loaders electrical
system on and off, and to start and stop the engine.
The switch location (Item 6) [Figure 15] can have
different functions depending on machine configuration.
See the following table for more information.
Figure 16
Earlier models used a push button switch assembly
[Figure 16] instead of a key switch.
P-90212J
6
2
4
1
3
5
REF.
DESCRIPTION
FUNCTION /
OPERATION
ADVANCED
CONTROL SYSTEM
(ACS) (Option)
Press the top to select
Hand Controls; bottom
to select Foot
Controls.
SELECTABLE
JOYSTICK
CONTROLS (SJC)
(Option)
Press the top to select
‘ISO’ Control Pattern;
bottom to select ‘H’
Control Pattern.
FOUR-WAY
FLASHER LIGHTS
(Option)
Press the top to turn
lights ON; bottom to
turn OFF.
ROTATING BEACON
(Option)
or
STROBE LIGHT
(Option)
Press the top to turn
light ON; bottom to
turn OFF.
P-90214B
