64 S650 Operation & Maintenance Manual

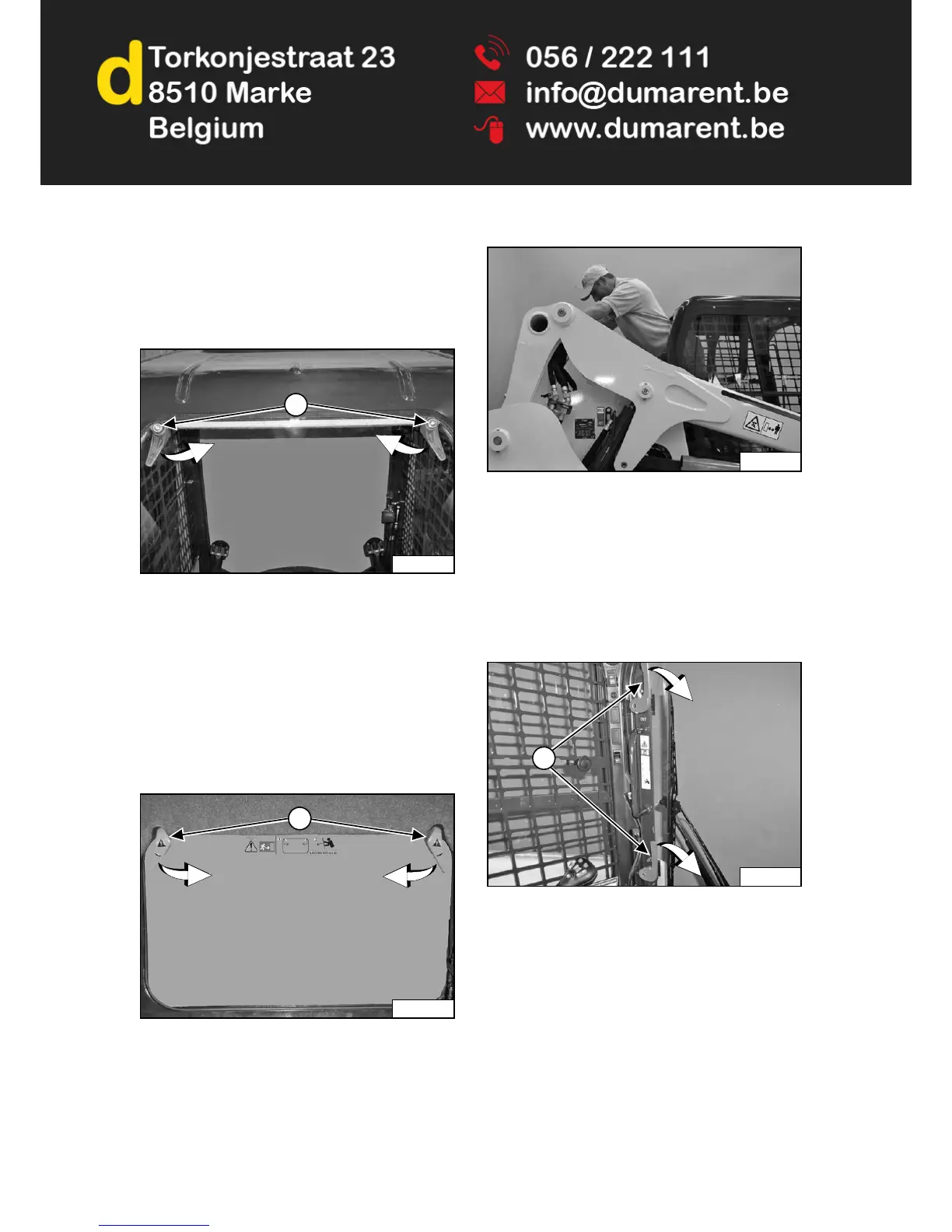

EMERGENCY EXIT
The front opening on the operator cab and rear window
provide exits.
External Access
Figure 41
The rear window can be removed from outside the loader
using a T40 TORX® driver. Turn both screws (Item 1)
[Figure 41] in until the latches disengage from the
window frame. Pull the top of the window away from the
cab and lift up to remove.
Rear Window
NOTE: Use this procedure to remove the rear window
only under emergency conditions. Damage to
machine may occur.
Figure 42
Turn both latches (Item 1) [Figure 42] in until they
disengage from the window frame.
Push the rear window out of the rear of the operator cab.
Figure 43
Exit through the rear of the operator cab [Figure 43].
Front Door
This machine may be equipped with a Front Door.
NOTE: Use this procedure to remove the front door
only under emergency conditions. Damage to
machine may occur.
Figure 44
Turn both latches (Item 1) [Figure 44] down until they
disengage from the door frame.
Push the door out of the operator cab door frame.
Exit through the opening.
P-85724
1
P-85309A
1
P-90563D
P-90725
1
