EMERGENCY EXIT (CONT’D)
Front Door (Cont’d)
Front Door Reassembly
Reassemble the front door using the following
instructions if the door was opened using the emergency
exit procedure.

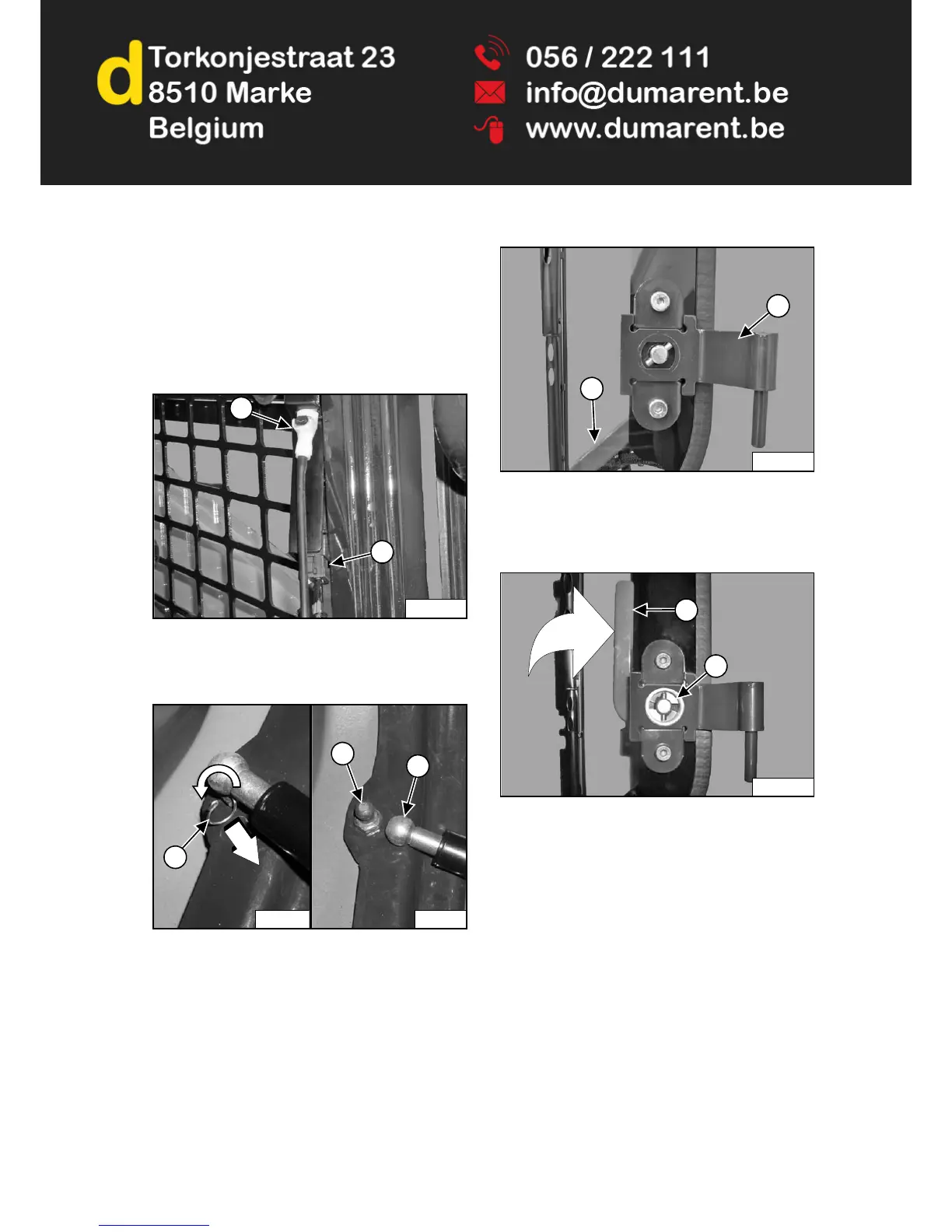

Figure 45
Disconnect electrical connector (Item 2) and washer fluid
hose (Item 1) [Figure 45].
Figure 46
Rotate and pull the clip (Item 1) out of the gas spring
socket. Pull the gas spring socket (Item 3) straight off the
ball stud fitting (Item 2) [Figure 46].
Remove the door hinges from the loader.
Figure 47
Orient the latches as shown (Item 1) and install the door
hinges (Item 2) [Figure 47] on the door. (Bottom hinge
shown)
Figure 48
Install cast washers (Item 2) on door hinges taking care
to match rectangular surfaces. Hold cast washer firmly
against door and rotate latch (Item 1) [Figure 48] up to
lock cast washer into place. (Bottom hinge shown)
Install door on loader.
Install the gas spring socket on the ball stud fitting. Install
the clip into the hole in the gas spring socket. Rotate the
clip to lock into place [Figure 46].
Connect electrical connector (Item 2) and washer fluid
hose (Item 1) [Figure 45].
