68 S650 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER (CONT’D)

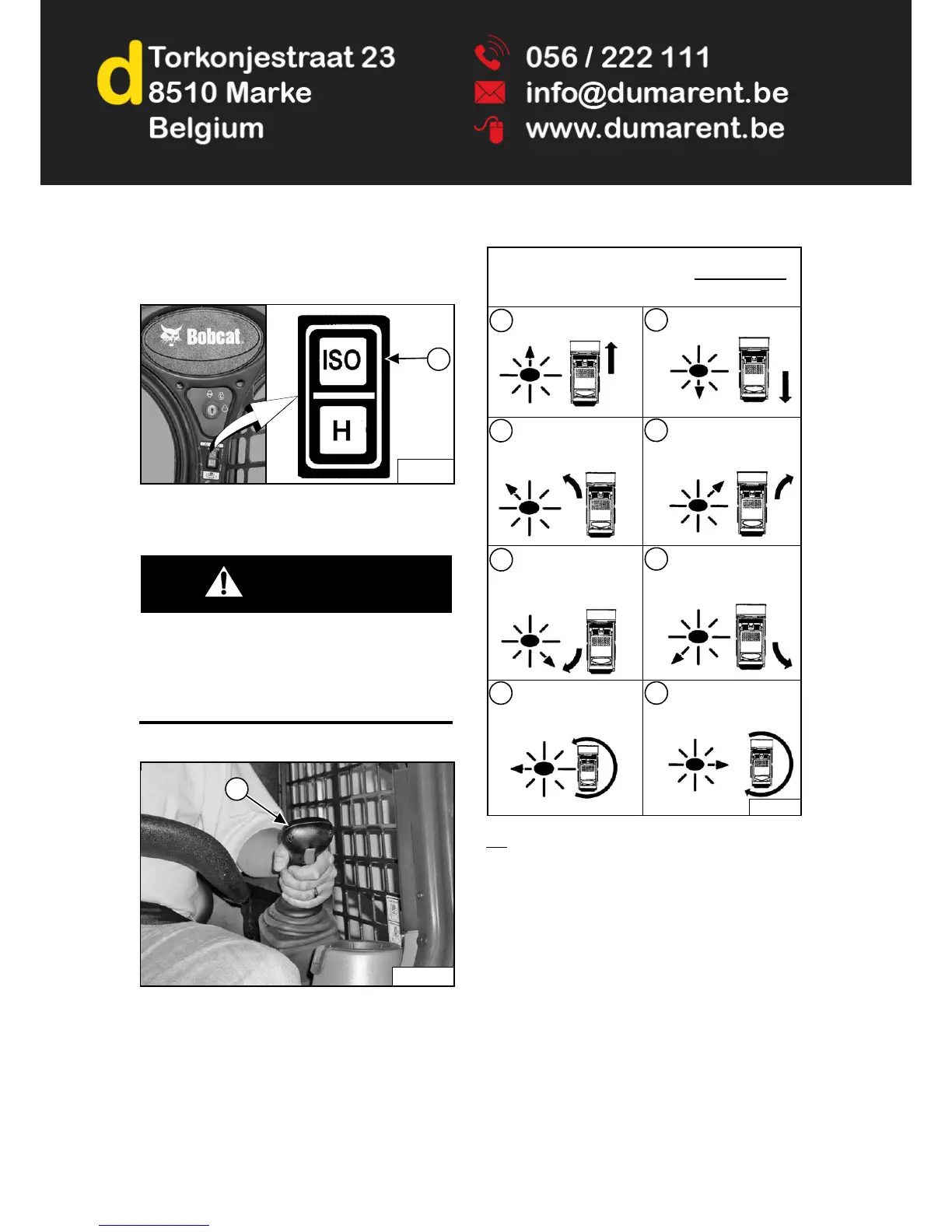

Operation (SJC) In ‘ISO’ Control Pattern
Figure 52
Select the ‘ISO’ control pattern by pressing the top of the
switch (Item 1) [Figure 52].
WARNING
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure 53
The joystick that controls drive and steering is on the left
side in front of the seat (Item 1) [Figure 53].
Move the joystick smoothly. Avoid sudden starting and
stopping.
Figure 54
Left
Joystick Functions (Drive And Steering) [Figure 54].
1. Forward Travel - Move joystick forward.
2. Backward Travel - Move joystick backward.
3. Forward Left Turn - Move joystick forward and to the
left.
4. Forward Right Turn - Move joystick forward and to
the right.
5. Backward Left Turn - Move joystick backward and to
the right.
6. Backward Right Turn - Move joystick backward and
to the left.
7. Left Fast Turn - Move joystick to the left.
8. Right Fast Turn - Move joystick to the right.
P-85307I
B-15993I
1
P-90675
1
B-21970B
1
2
3
4
5
6
7
SJC in ‘ISO’
Control Pattern
Left Joystick
FORWARD
FORWARD
LEFT TURN
BACKWARD
FORWARD
RIGHT TURN
BACKWARD
LEFT TURN
BACKWARD
RIGHT TURN
LEFT FAST
TURN
RIGHT FAST
TURN
8
