69 S650 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER (CONT’D)
Operation (SJC) In ‘H’ Control Pattern

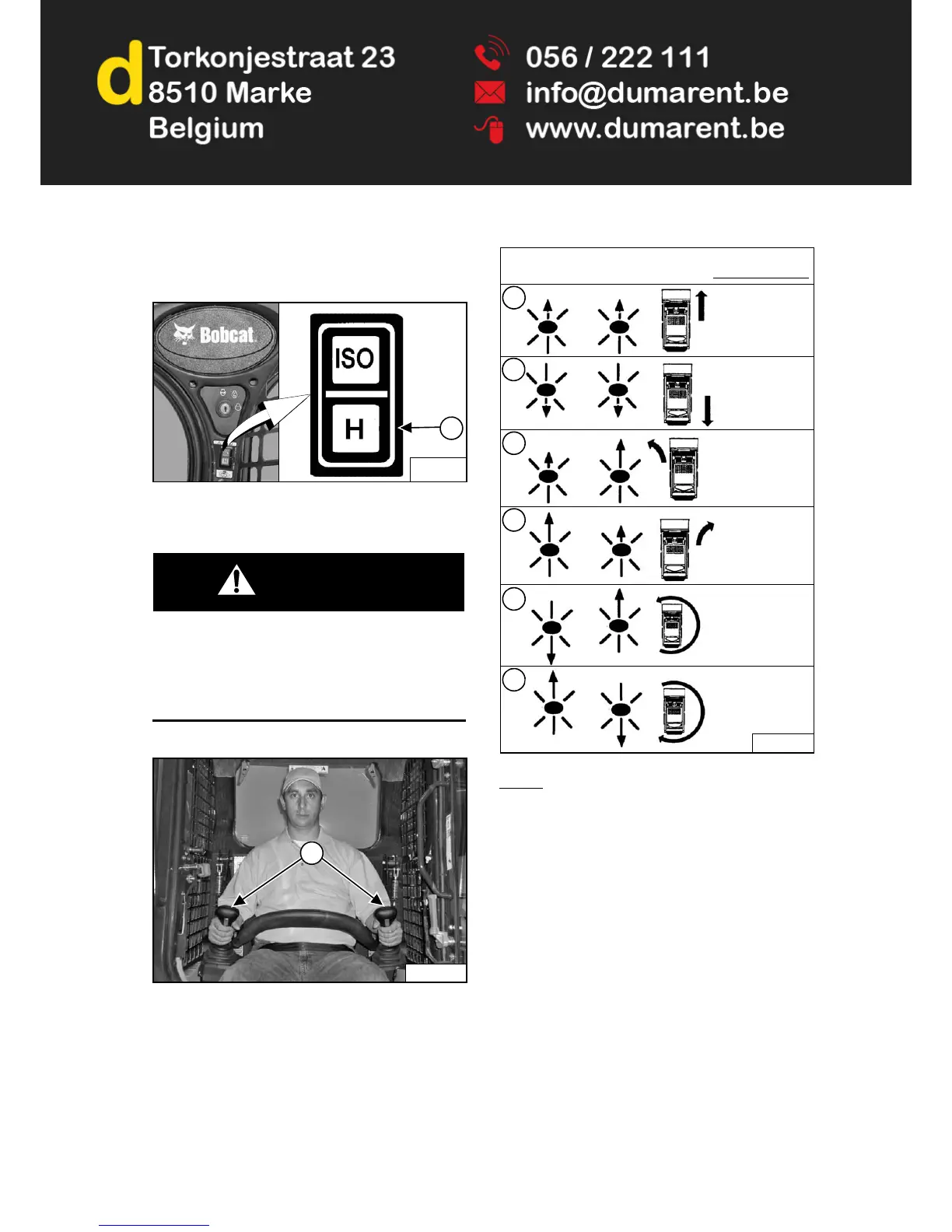

Figure 55
Select the ‘H’ control pattern by pressing the bottom of
the switch (Item 1) [Figure 55].
WARNING
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure 56
Both joysticks control drive and steering and are located
on the left and right side in front of the seat (Item 1)
[Figure 56].
Move the joysticks smoothly. Avoid sudden starting and
stopping.
Figure 57
Joystick
Functions (Drive And Steering) [Figure 57]
1. Forward Travel - Move both joysticks forward.
2. Backward Travel - Move both joysticks backward.
3. Forward Left Turn - Move the right joystick farther
forward than the left joystick.
4. Forward Right Turn - Move the left joystick farther
forward than the right joystick.
5. Left Fast Turn - Move the left joystick backward and
the right joystick forward.
6. Right Fast Turn - Move the left joystick forward and
the right joystick backward.
STOPPING THE LOADER
Using The Control Levers Or Joysticks
When the steering levers or joysticks are moved to the
neutral position, the hydrostatic transmission will act as a
service brake to stop the loader.
P-85307I
B-15993I
1
P-85448D
1
B-22029A
1
2
3
4
5
6
N
N
NN
N
N
N
N
N
N
N
N
SJC in ‘H’
Control Pattern
Left
Joystick
Right
Joystick
FORWARD
BACKWARD
LEFT
TURN
RIGHT
TURN
LEFT
FAST
TURN
RIGHT
FAST
TURN
