74 S650 Operation & Maintenance Manual
DRIVE RESPONSE (CONT’D)
Operation (Cont’d)

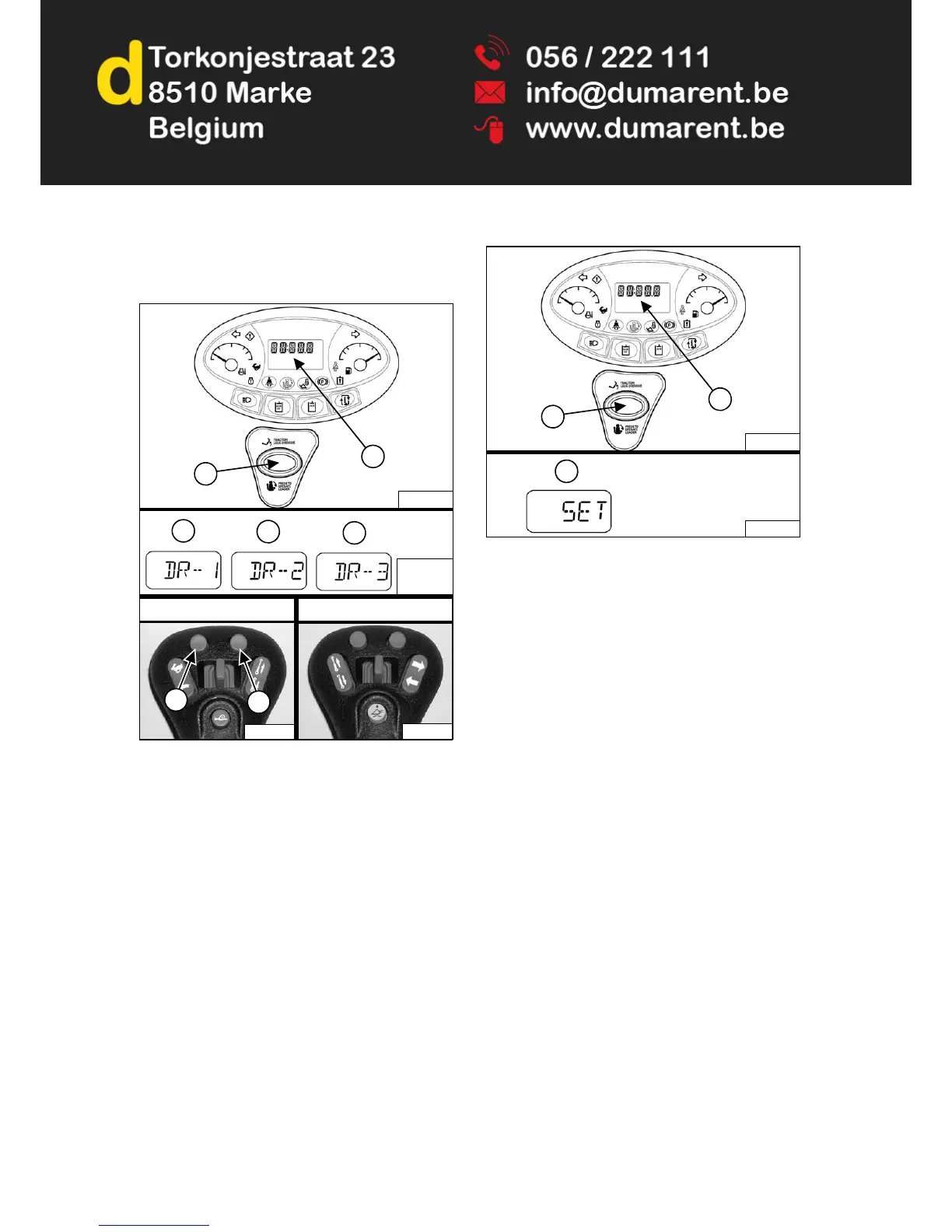

Figure 65
Press and hold the PRESS TO OPERATE LOADER
button (Item 1) for three seconds to adjust the loaders
drive response setting. The current drive response
setting will appear in the data display (Item 2)
[Figure 65].
Press the upper left or upper right button on the left
joystick to adjust the setting. Adjustments to the drive
response will be effective immediately. Press the upper
left button (Item 6) on the left joystick to scroll down
through the three drive response settings (Items 3, 4 and
5). Press the upper right button (Item 7) on the left
joystick to scroll up through the three drive response
settings (Items 3, 4 and 5) [Figure 65].
Figure 66
Saving The Drive Response Setting:
The current drive response setting can be saved by
pressing and holding the PRESS TO OPERATE
LOADER button (Item 1) for three seconds. [SET] (Item
3) will appear in the data display (Item 2) [Figure 66] and
the machine will exit from the drive response adjustment
menu.
OR
Press the PRESS TO OPERATE LOADER button to exit
from the drive response adjustment menu without saving
the current setting.
The current steering drift compensation setting (See
STEERING DRIFT COMPENSATION on Page 75.) will
appear in the data display (Item 2) [Figure 66] and the
upper left and upper right buttons on the left joystick will
no longer make changes to drive response.
NOTE: The last displayed drive response setting will
remain in effect until the machine is turned
OFF. The machine will revert back to the last
saved drive response setting the next time it
is started.
Adjustments to steering drift compensation can now be
made (See STEERING DRIFT COMPENSATION on
Page 75.)
OR
Press the PRESS TO OPERATE LOADER button again
to exit from the steering drift compensation adjustment
menu.
