82 S650 Operation & Maintenance Manual
HYDRAULIC CONTROLS (CONT’D)

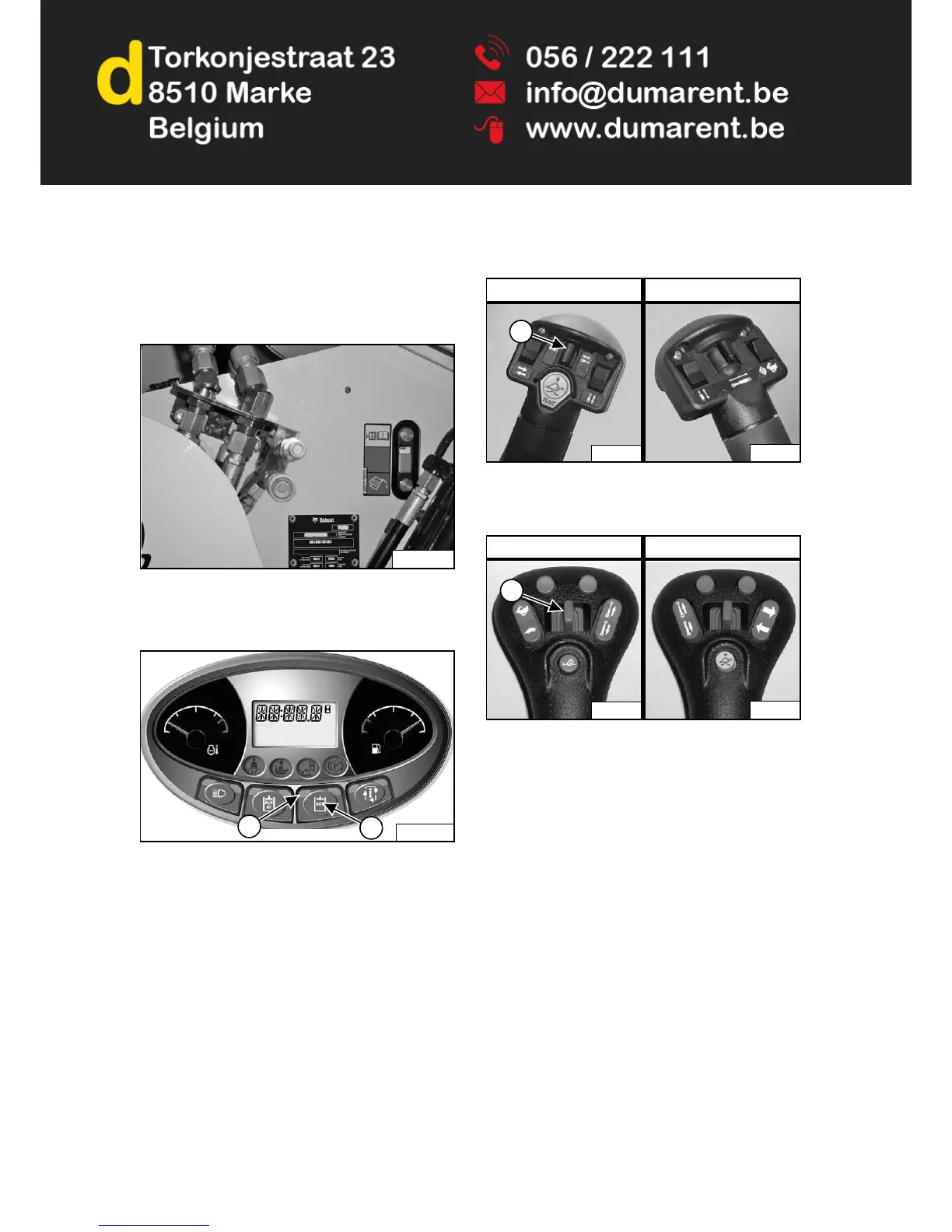

REAR Auxiliary Hydraulics Operation
This machine may be equipped with Rear Auxiliary
Hydraulics.
Figure 84
The switches on the left hand lever or joystick control the
rear auxiliary hydraulics.
Figure 85
Press the auxiliary hydraulics button (Item 1) [Figure 85]
once to activate the auxiliary hydraulics.
The light (Item 2) [Figure 85] will be ON.
Standard, ACS And AHC (If Equipped)
Figure 86
SJC (If Equipped)
Figure 87
Push the rear auxiliary hydraulic switch (Item 1)
[Figure 86] or [Figure 87] to the right or left to change
direction of the auxiliary hydraulic oil flow to the rear
quick couplers [Figure 84]. (EXAMPLE: Raise and lower
rear stabilisers.)
To deactivate the auxiliary hydraulics, press the auxiliary
hydraulics button (Item 1) [Figure 85] again.
The light (Item 2) [Figure 85] will be OFF.
NOTE: When the operator is seated and raises the
seat bar, the Auxiliary Hydraulic System
(Front and Rear) will deactivate.
P100013B
P-76460C
1
2
P16537C
1
P-31833A
Left Handle Right Handle
P-24820A
1
P-24802A
Left Joystick Right Joystick
