89 S650 Operation & Maintenance Manual
PRE-STARTING PROCEDURE (CONT’D)
Seat Adjustment
Suspension Seat

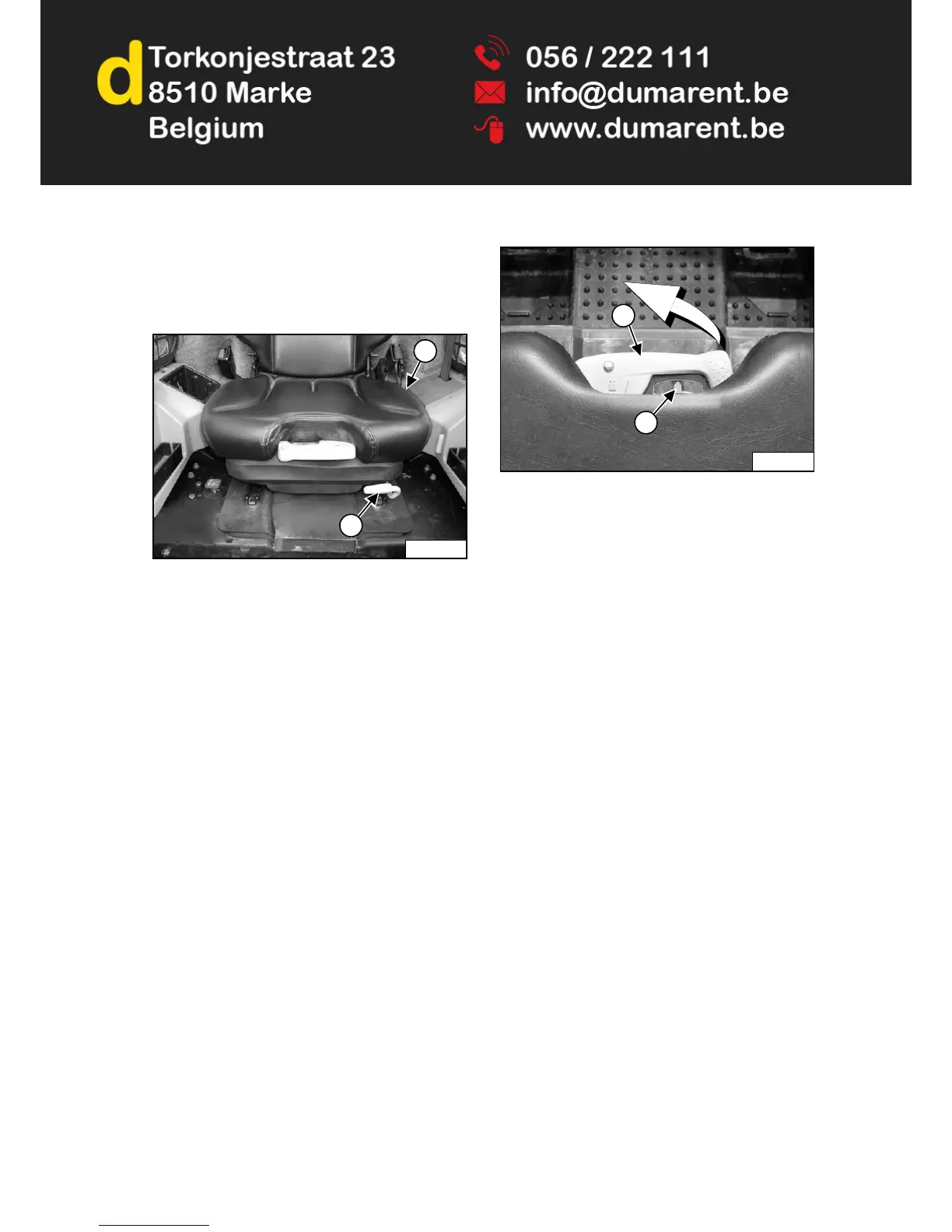

Figure 101
Pull the lever (Item 1) [Figure 101] up to adjust the angle
of the seat back.
Pull the lever (Item 2) [Figure 101] up to adjust the seat
position for comfortable operation of the loader controls.
Figure 102
The lever (Item 1) is used to adjust the suspension
response of the seat depending on the operator’s weight.
The optimum setting is achieved with the needle (Item 2)
[Figure 102] centred in the gauge with the operator
normally seated.
Pivot the lever out fully to adjust the setting. Pump lever
between middle and upper positions to move the needle
to the right. Pump lever between middle and lower
positions to move the needle to the left. Return lever to
the middle position and pivot lever back fully to lock in
setting.
P-85275
2
1
P-90024A
1
2
