42 T870 Operation & Maintenance Manual
INSTRUMENT PANEL IDENTIFICATION (CONT’D)

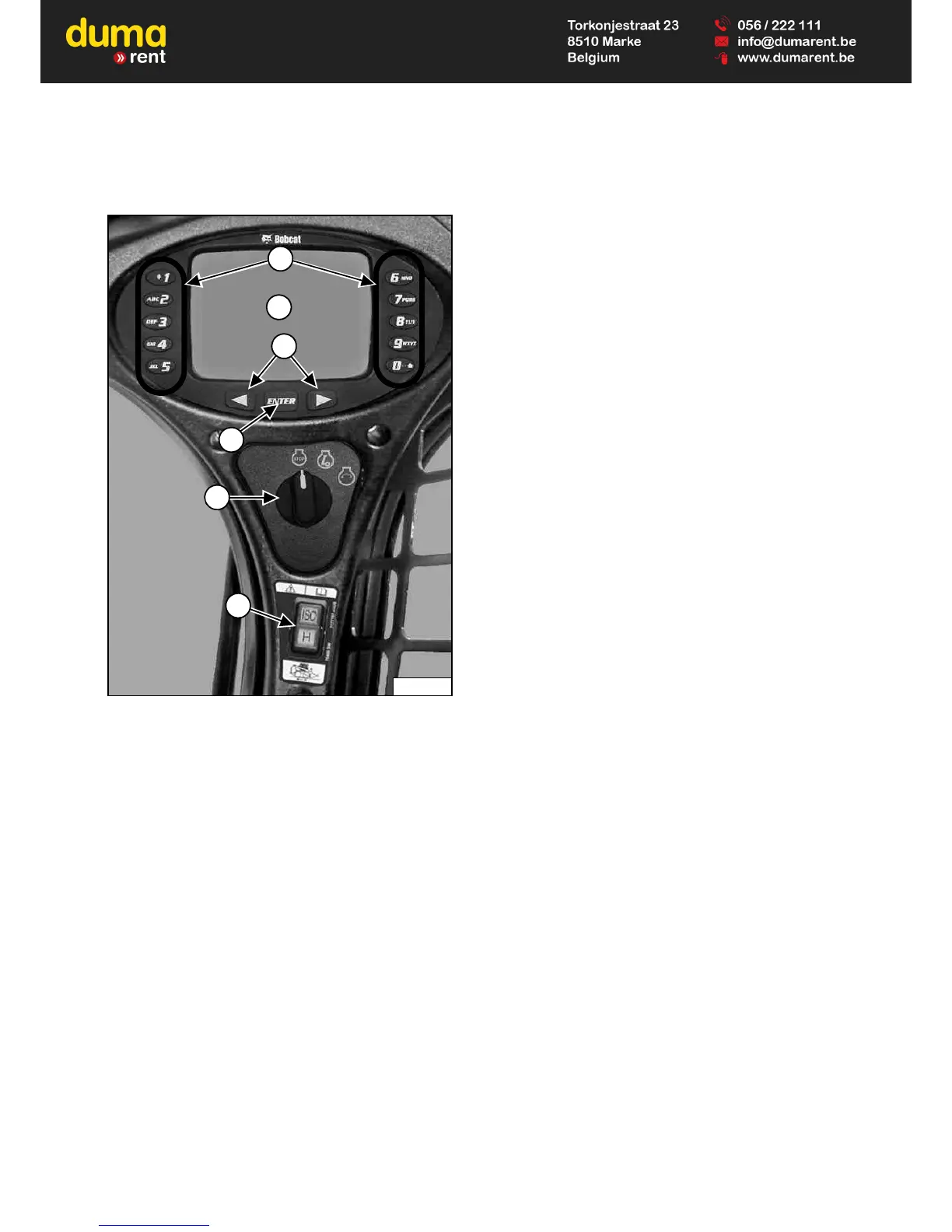

Right Panel (Deluxe Instrumentation Panel)
Figure 15
This machine may be equipped with a Deluxe
Instrumentation Panel
[Figure 15].
1. Keypad (keys 1 through 0): The keypad has two
functions:
- To enter a number code (password) to allow starting
the engine.
- To enter a number as directed for further use of the
display screen.
2. Display Screen: The display screen is where all
system setup, monitoring, and error conditions are
displayed.
3. Scroll Buttons: Used to scroll through display screen
choices.
4. ENTER Button: Used to make selections on the
display screen.
5. Key Switch: Used to turn the loaders electrical
system on and off, and to start and stop the engine.
6. Selectable Joystick Controls (SJC) Control
Pattern Switch: Press the top to select ‘ISO’ Control
Pattern; bottom to select ‘H’ Control Pattern.
