27
09665-07.2012-Gb
10 I Disassembly of the compressor
ATTENTION In order to prevent any mix-up during reassembly, mark the cylinder cover and
the valve plates belonging together clearly and in a wipe-resistant fashion!
3

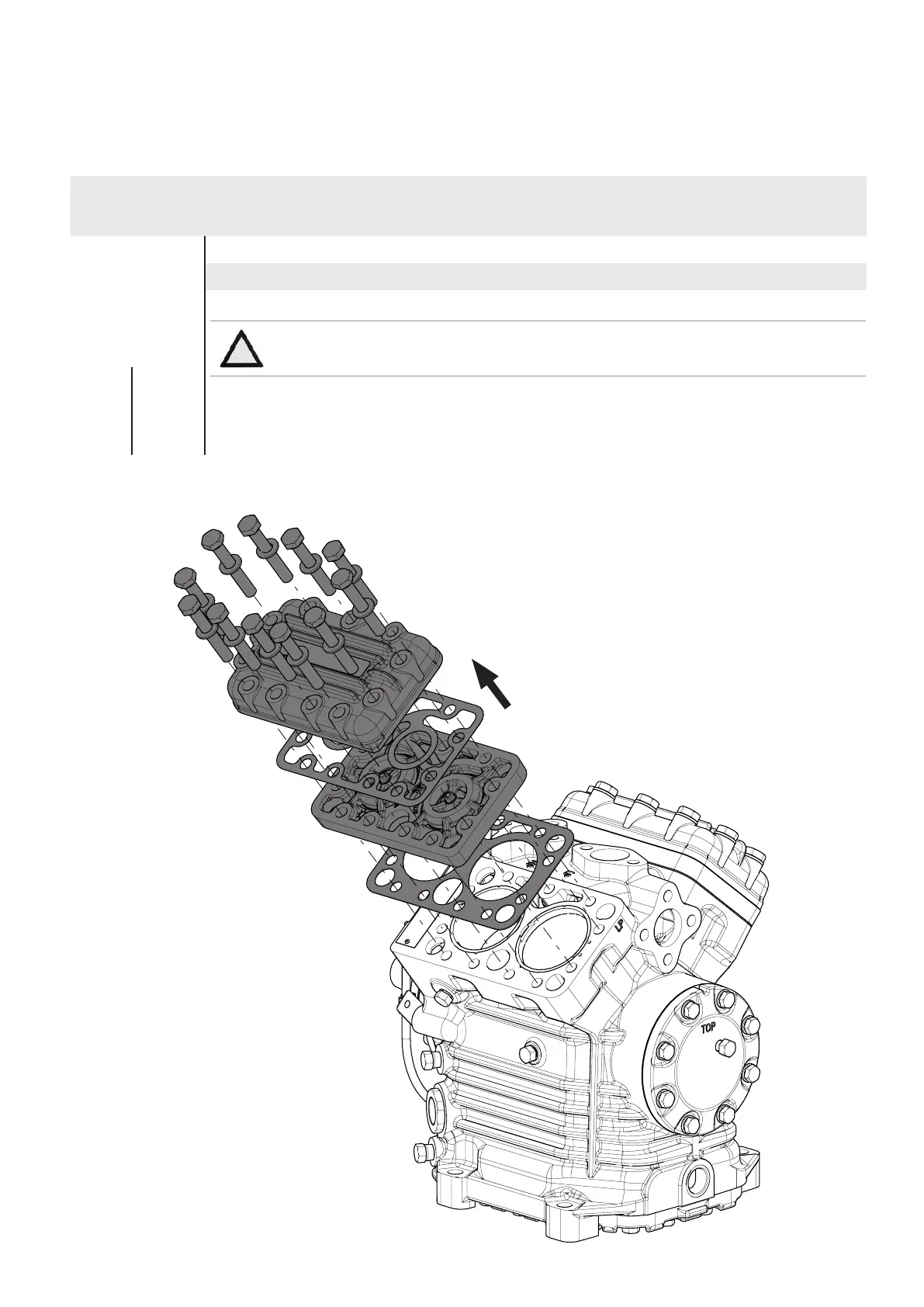

Removal of the cylinder cover and valve plates
Position in parts
list
N / TK K
Parts list position: 170, 2000 (N / TK versions), 1940, 2900 (K version)
Tools: Spanner SW 17
Working course
180, 181
170, 70
60, 50
1950, 180
1940, 1430
1920, 1910
- Loosen screws at the cylinder cover and unscrew, remove the washers
- Remove the cylinder cover and the upper gasket of the valve plate
- Remove the valve plate and the lower gasket of the valve plate
