BOCK FK40 - Removal of the Shaft Seal

28
09665-07.2021-Gb
10 I Disassembly of the compressor
4

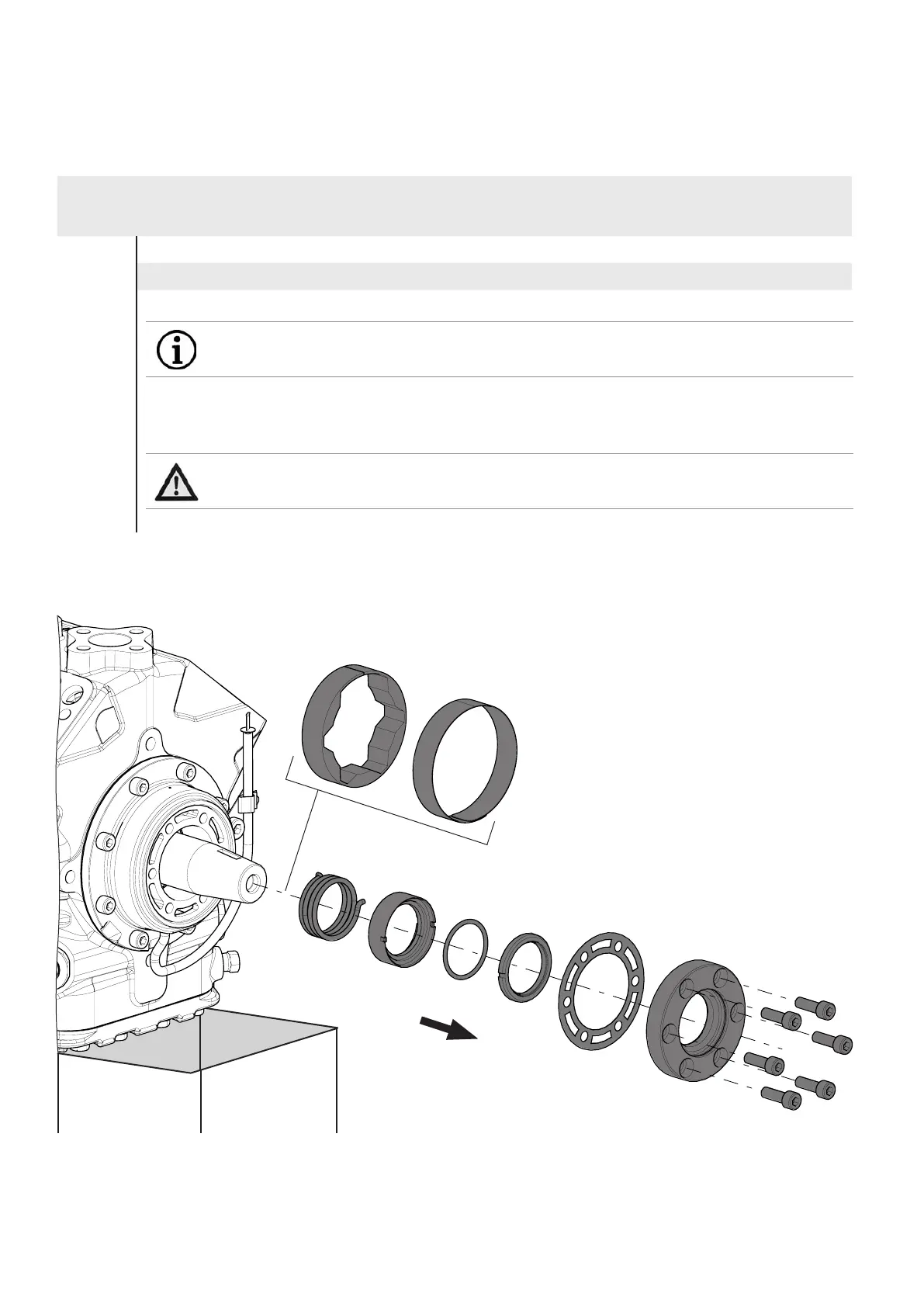

Removal of the shaft seal
Position in
parts list
Parts list position: 2010
Tools: Allen key 6 mm
Working course
2110
750
2010
- Place the oil collection container under the shaft seal area
- Remove the leak oil collection device from the bearing ange (until version ID 014)
- Unscrew the cylinder screws
- Remove the shaft seal cover, the guide ring, the O-ring and the spring
INFO For a detailed description for the old version (until version ID 014) see also the section on
the removal of the shaft seal on page 16!
CAUTION Danger of injury!
The shaft seal cover is under spring tension! It may jump out by itself.
Clamping ring with oil felt
