10 I Disassembly of the compressor
10
Remove pistons and connecting rods
Position in
parts list
Parts list position: 2040 opt. 2045 or 2030 opt. 2035 together with 2100
Tools: Needle-nosed pliers
Working course
2100, 2030
280
270
2100

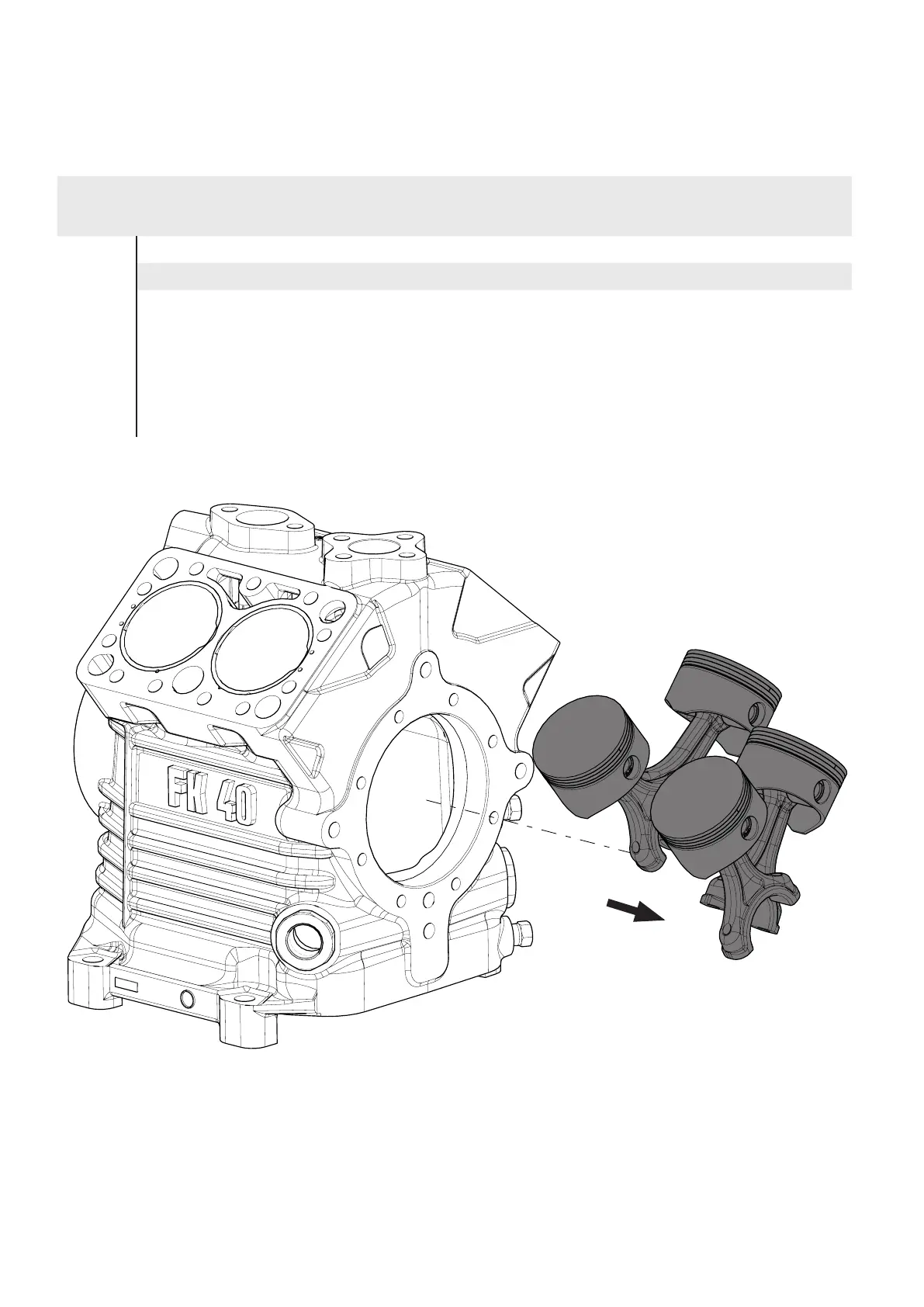

- Mark corresponding pistons of cylinder bore
- Remove the piston / connecting rod in direction of baseplate
- Remove circlips of the piston pins with needle-nosed pliers
- Push the piston pins out of the pistons and remove pistons
- In order to prevent mix-ups, fasten the connecting rod caps to the connecting rods again
