10 I Disassembly of the compressor
11
Removal of the remaining parts
Position in
parts list
Parts list position: -
Tools: Spanner SW 13, 14, 30 or 36.
For the decompression valve: Bock special tool item No. 09524 (up to A015*), socket wrench SW 22 (from A017*)
Working course
570
590
520
521
100

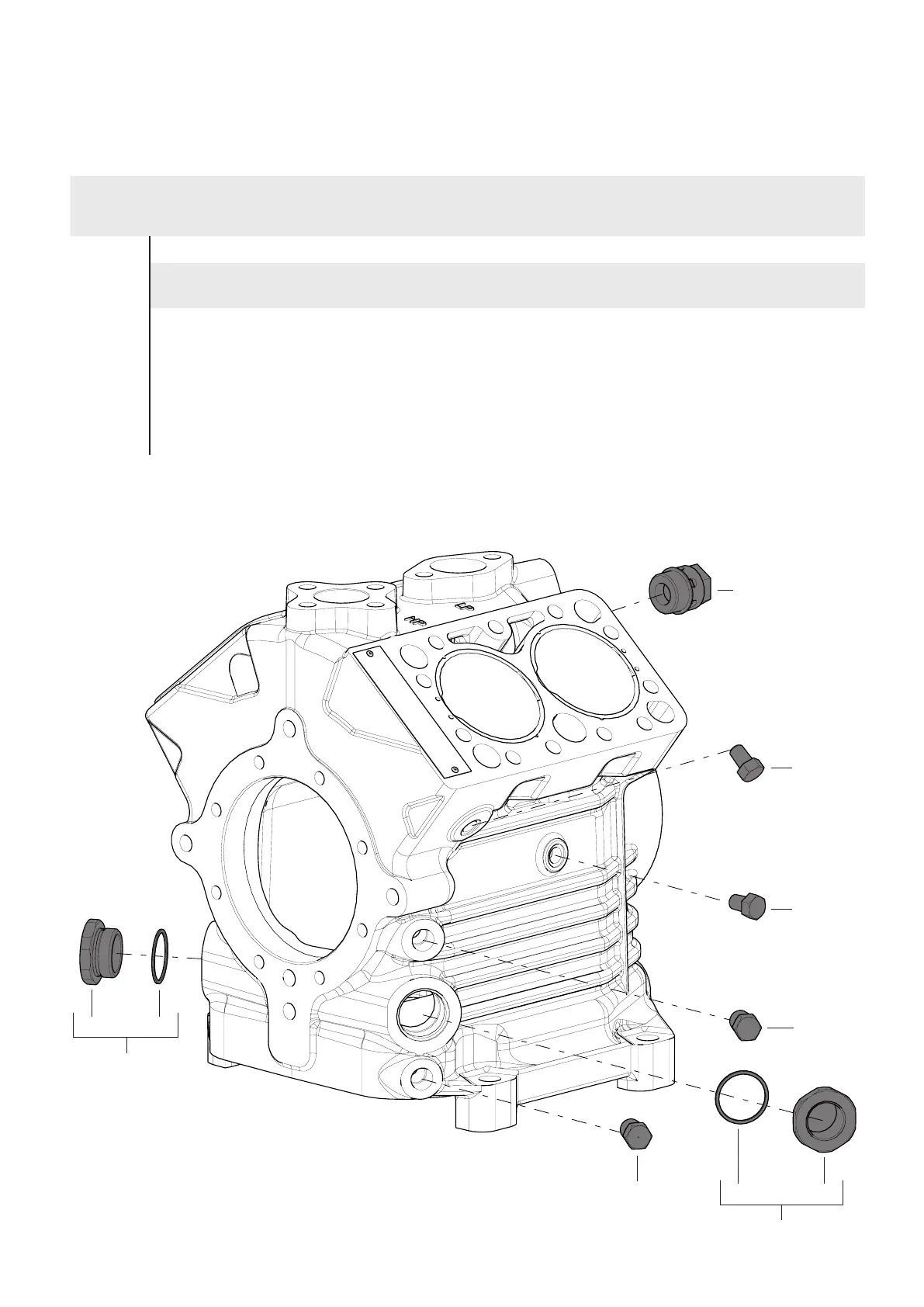

- Dismount the sight glass
- Remove O-ring
- Remove the 1/8‘‘ NPTF plugs
- Remove the 1/4‘‘ NPTF plugs
- Unscrew the decompression valve
520
521
521
570 590
2080
100
*) see the last four sites of the machine number
590 570
2080
520
