BOCK FK40 - Installation of the Baseplate

51
09665-07.2012-Gb
12 I Assembly of compressor
10

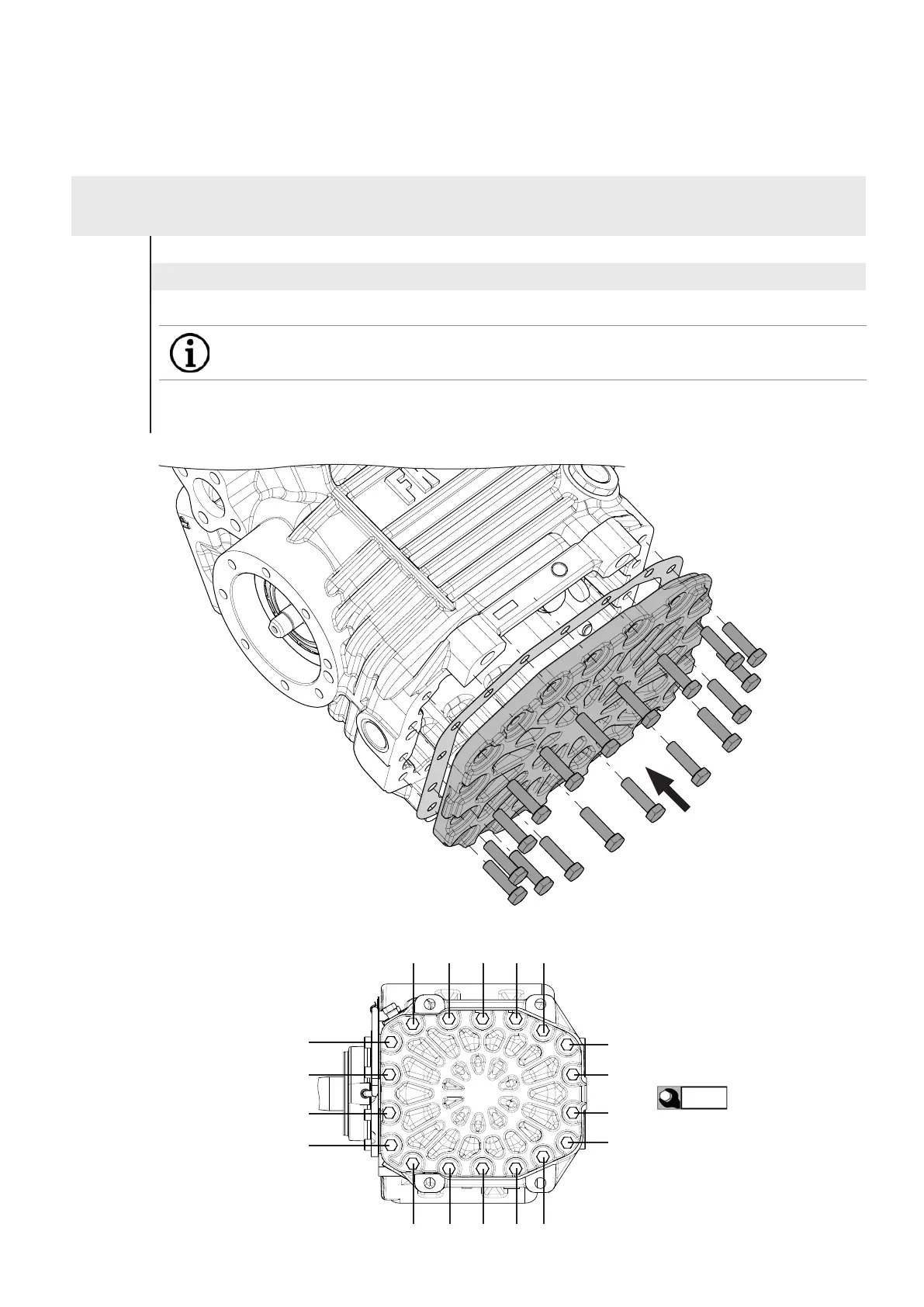

Installation of the baseplate
Position in
parts list
Parts list position: 20, 30, 40
Tools: Spanner SW 13
Working course
20, 30
40
- Install the baseplate with gasket
- Tighten the screws (M8x30) crosswise
11
14
18
15
12
13
17
16
10
42
6
3
95
17
8
34 Nm
INFO Observe the tightening torques!
Pay attention to the tightening sequence of the screws!
