BCB 810 Mid-Width Bench
Assembly Instructions
Page 5

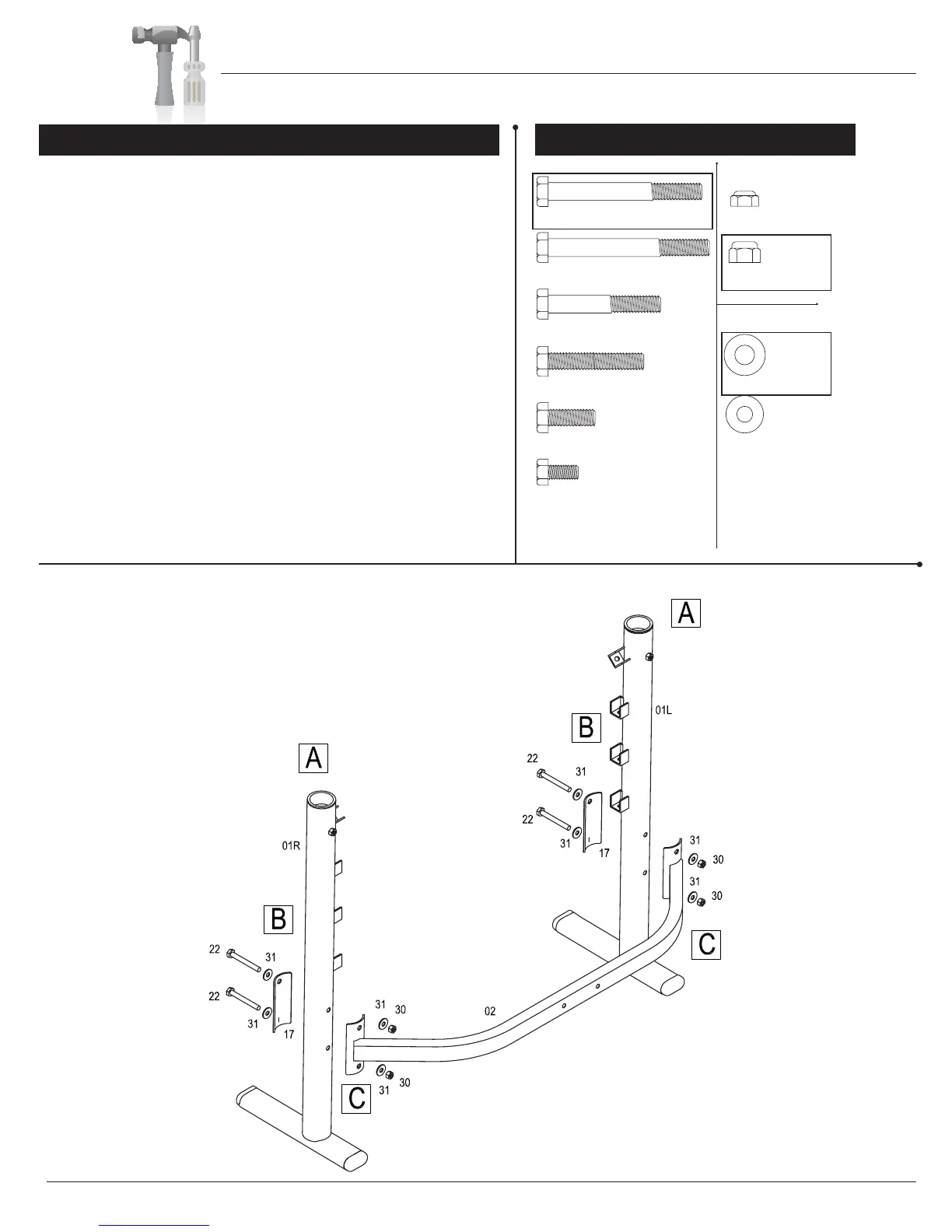

A. With the help of an assistant, stand the two Upright Assemblies
(#01R & #01L) on a level oor as illustrated.
B. Slide two Hex Bolts (#22) through two Washers (#31), one
Reinforcement Plate (#17) and then through the Left Upright
Assembly (#01L) as illustrated. Repeat this step on the
opposite side.
C.
Attach the Rear Cross Brace (#02) to the two Upright Assemblies
(#01L & #01R) using a total of four Washers (#31) and four
Lock Nuts (#30). Firmly tighten all nuts and bolts but be careful
not to overtighten them.
A s s e m b l y S t e p 1
Please note: This
diagram is designed to
help you easily identify
the hardware type and
quantity you will need
to complete each step.
#24 Hex Bolt (M10x60 mm)
#26 Hex Bolt (M10x50 mm)
#27 Hex Bolt (M10x25 mm)
#28 Hex Bolt (M8x15 mm)
Bolts Nuts
Washers
#22 Hex Bolt (M10x80 mm)
[ 4 Pieces]
#29 Lock Nut (M6)
#30 Lock Nut (M10)
[4 Pieces]
#31 Washer (M10)
[8 Pieces]
#32 Washer (M8)
#23 Hex Bolt (M10x85 mm)
Hardware Required
