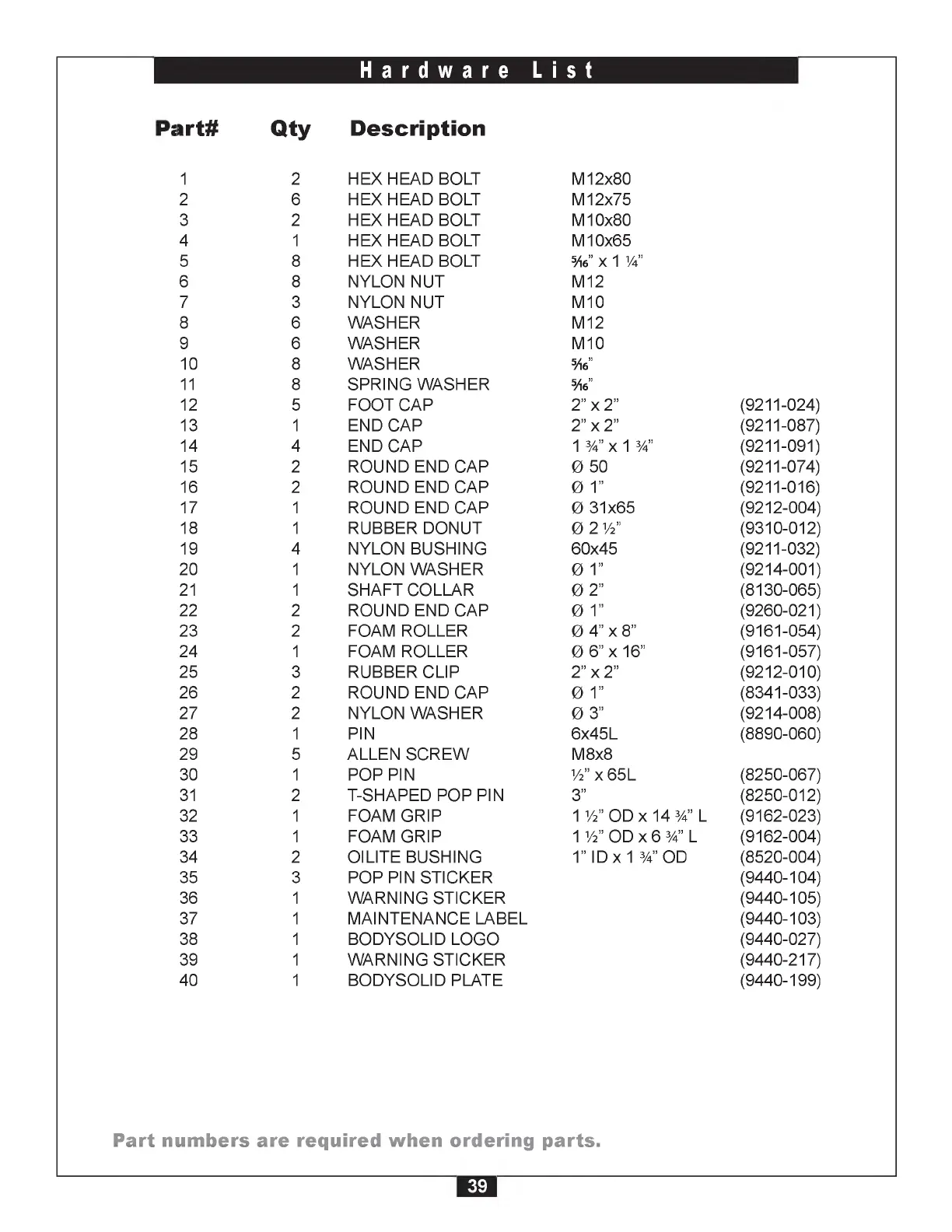

Body Solid GCEC-340 - Page 39

Hardware List
irt# Qty
Description
1 2 HEX HEAD BOLT M12x80
2 6 HEX HEAD BOLT M12x75
3 2 HEX HEAD BOLT M10x80
4 1 HEX HEAD BOLT M10x65
5 8 HEX HEAD BOLT
5/W’ x 1 W
6 8 NYLON NUT M12
7 3 NYLON NUT M10
8 6 WASHER M12
9 6 WASHER M10
10 8 WASHER
5/W’
11 8
SPRING WASHER 5/W’
12 5 FOOT CAP 2” x 2” (9211-024)
13 1 END CAP 2” x 2” (9211-087)
14 4 END CAP 1 %” x 1 %” (9211-091)
15 2 ROUND END CAP
0 50
(9211-074)
16 2 ROUND END CAP
0 1”
(9211-016)
17 1 ROUND END CAP 0 31x65 (9212-004)
18 1 RUBBER DONUT 0 2 W” (9310-012)
19 4 NYLON BUSHING 60x45 (9211-032)
20 1 NYLON WASHER
0 1”
(9214-001)
21 1 SHAFT COLLAR
0 2”
(8130-065)
22 2 ROUND END CAP
0 1”
(9260-021)
23 2 FOAM ROLLER 0 4” x 8” (9161-054)
24 1 FOAM ROLLER 0 6” x 16” (9161-057)
25 3 RUBBER CLIP 2” x 2” (9212-010)
26 2 ROUND END CAP
0 1”
(8341-033)
27 2 NYLON WASHER
0 3”
(9214-008)
28 1 PIN 6x45L (8890-060)
29 5 ALLEN SCREW M8x8
30 1 POP PIN W” x 65 L (8250-067)
31 2 T-SHAPED POP PIN 3” (8250-012)
32 1 FOAM GRIP 1 W” OD x 14 %” L (9162-023)
33 1 FOAM GRIP 1 W” OD x 6 %” L (9162-004)
34 2
OILITE BUSHING
1” ID x 1 %” OD (8520-004)
35 3 POP PIN STICKER (9440-104)
36 1 WARNING STICKER (9440-105)
37 1 MAINTENANCE LABEL (9440-103)
38 1 BODYSOLID LOGO (9440-027)
39 1 WARNING STICKER (9440-217)
40 1 BODYSOLID PLATE (9440-199)
Part numbers are required when ordering parts.
