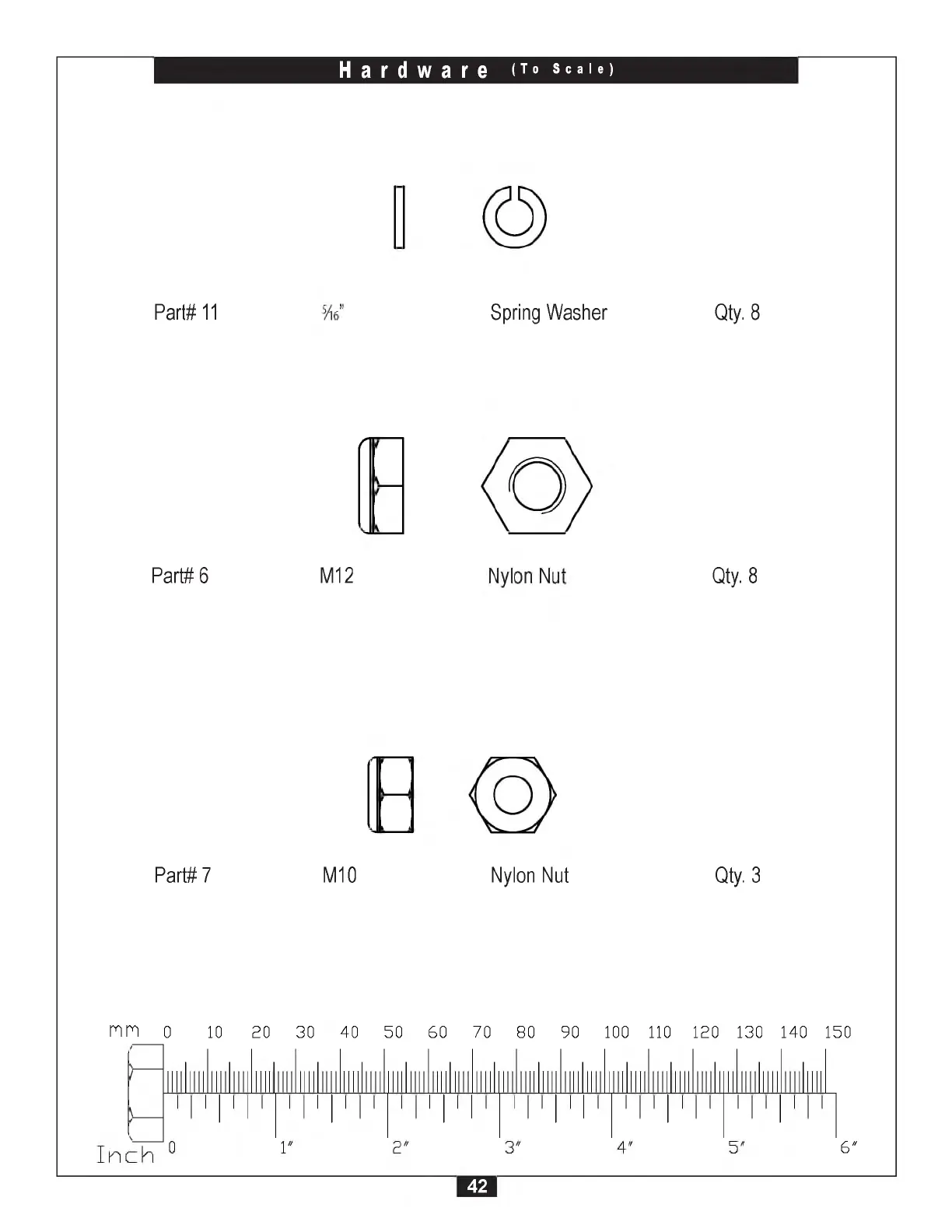

Hardware (To Scale)
Parts 11 SpringW asher Qty. 8
Part# 6
M12
Qty. 8
Part# 7 M10
Nylon Nut
Qty. 3
r
mm 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
6 "
42
