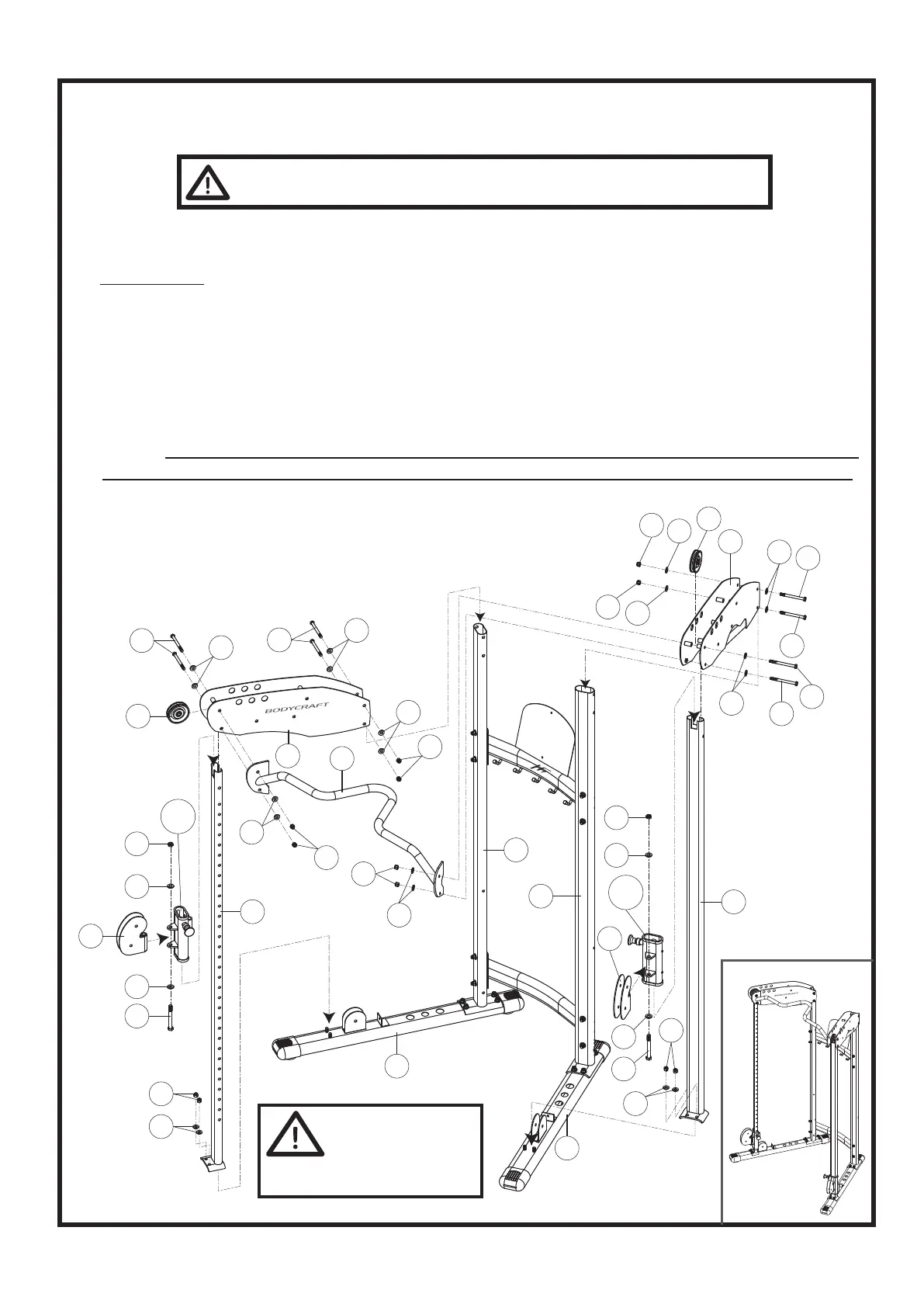

STEP 2 Assemble Top Frame
6
67
36
50
61
61
49
62
17
15R
16L
63
6R
7
1R
1L
17
61
67
69
63
69
51
63
63
69
63
3L
36
6L
63
63
69
63
51
63
50
69
51
2R
4
4
61
62
49
68
68
50
Step 2
Assembled
View
BEFORE TIGHTENING
THE #8 & #9 CROSS
SUPPORTS CONFIRM
UPRIGHTS ARE VERTICAL
AND NOT SLIGHTLY SLANTED.
TWO PEOPLE ARE REQUIRED TO ASSEMBLE THIS STEP.
DO NOT TIGHTEN BOLTS UNTIL THE END OF THIS STEP.
1. Slide Pulley Height Adjusters (15R & 16L) onto the Upright Frames (2R & 3L).
2. Attach Upright Frames (2R & 3L) to the Base Frame Legs (1R & 1L) using four
pre-installed 3/8" Chromed Washers (62), and 3/8" Chromed Nylon Nuts (68).
3. Attach two Rotating Pulley Holders (17) to the Right & Left Pulley Height Adjusters
(15R & 16L) using two 1/2" X 4-1/4" Hex Bolts (49), four 1/2" Washers (61), and two
1/2" Nylon Nuts (67). (NOTE: Feed the Bolt from the bottom up.)
4. Attach Top Frames (6R & 6L) to Rear Upright Frames (4) using two 3/8" X 4" Black Hex
Bolts (51), four 3/8" Black Washers (63), two 3/8" Black Nylon Nuts (69). Do Not
Tighten.
5. NOTE: To ease assembly, install Bolts and Washers in this step from the outside of the Top
Frames in, making sure to install Chin Bar (7) before installing washers and nuts as shown.
Assemble Top Frames (6R & 6L) to Upright Frames (2R & 3L) along with Chin-Up Bar
(7) and Pulley (36) using four 3/8" X 4-1/4" Hex Bolts (50),
eight 3/8" Black Washers (63), four 3/8" Black Nylon Nuts
(69).
6. Tighten all bolts starting from the
bottom and working up.
