2.2 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
L NOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

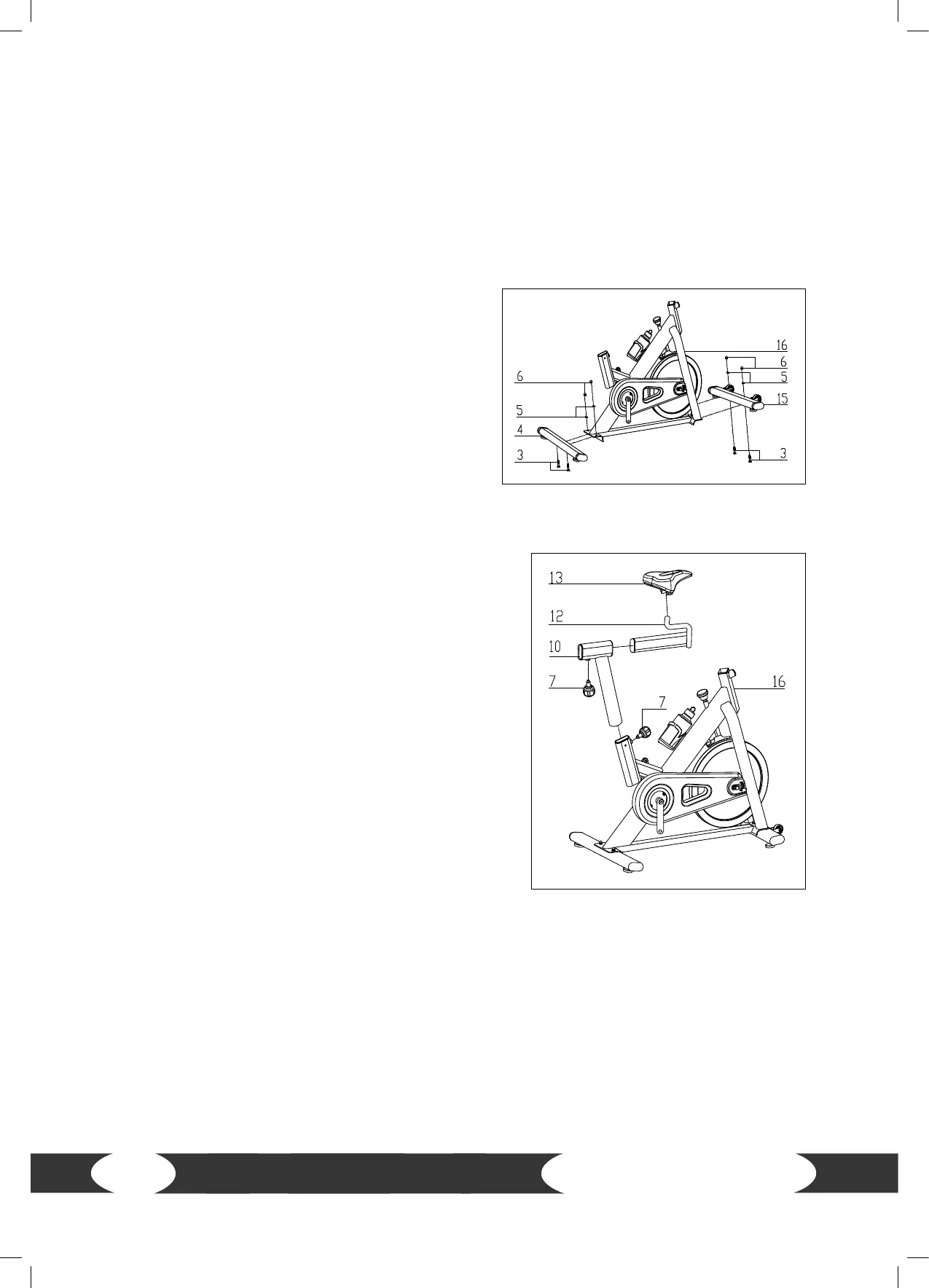

Step 1: Assembly of the Front and Rear Stabilizer
1. Mount the front stabilizer (15) to the main
frame (16) with two carriage bolts (3), two at
washers (5) and two domed nuts (6).
2. Mount the rear stabilizer (4) to the main
frame (16) with two carriage bolts (3), two at
washers (5) and two domed nuts (6).
Step 2: Assembly of the Seat Post and the Seat
1. Slide the seat post (12) into the vertical seat post
(10).
2. Align the holes at the desired position and x them
in place with an adjustment knob (7).
3. Mount the seat (13) to the seat post (12).
4. Insert the vertical seat post (10) into the main
frame (16) and line up the holes.
5. Secure the desired seat position with an
adjustment knob (7).
