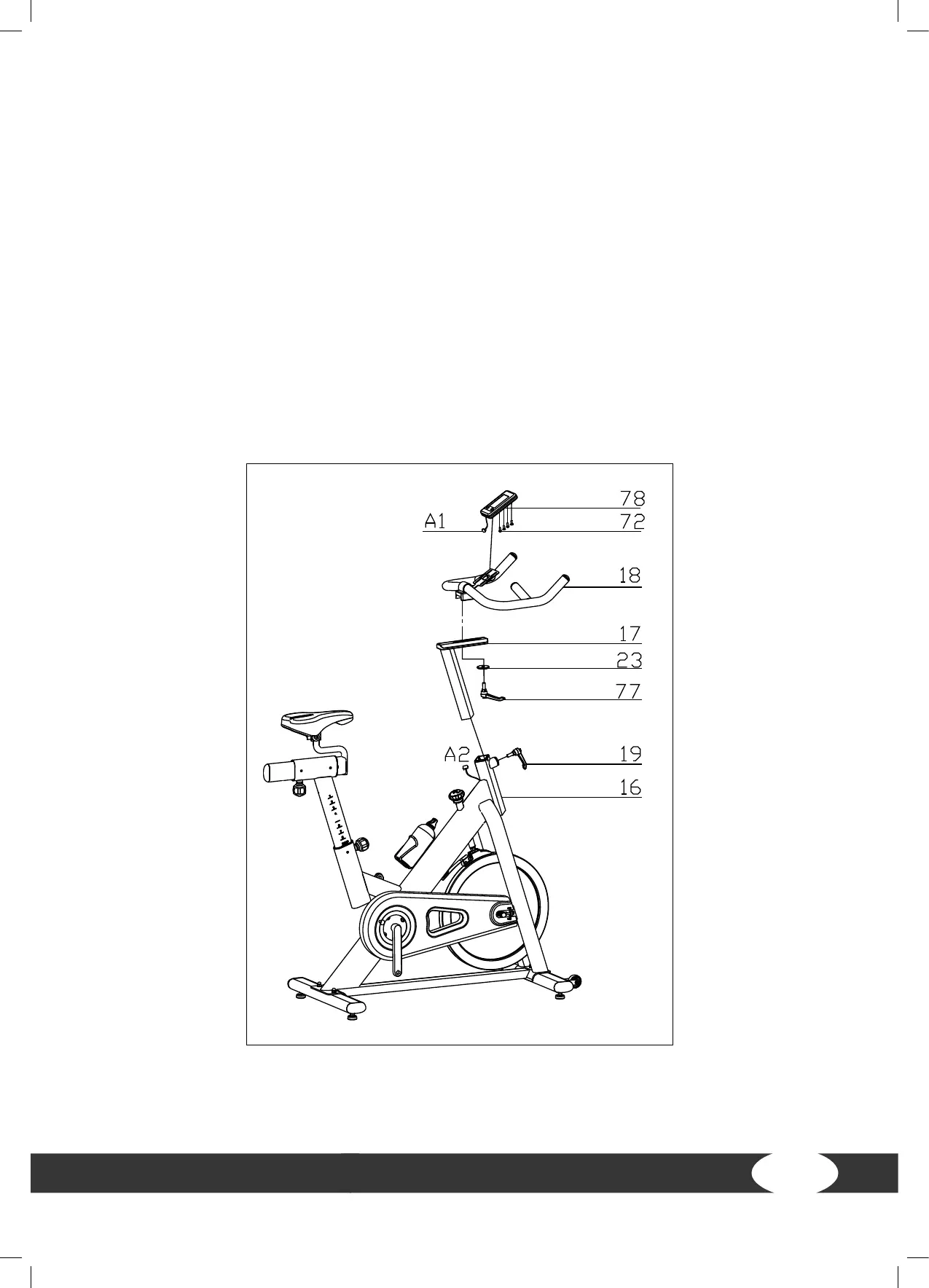

Step 3: Assembly of the Handlebar Post, the Handlebar and the Computer
1. Slide the handlebar post (17) into the handlebar post housing on the main frame (16).
2. Loosen the L shaped knob (19) and pull it back.
3. Select the desired height.
4. Release the L shaped knob (19) and retighten the knurled portion.
5. Mount the computer (78) onto the computer holder on the handlebar (18) with four bolts (72).
6. Mount the handlebar (18) onto the handlebar post (17) with an L shaped knob (77) and one at
washer (23).
7. Connect the cables A1 and A2 with one another.
8. Tighten all screw joints.
→
The assembly of the equipment is now completed.
