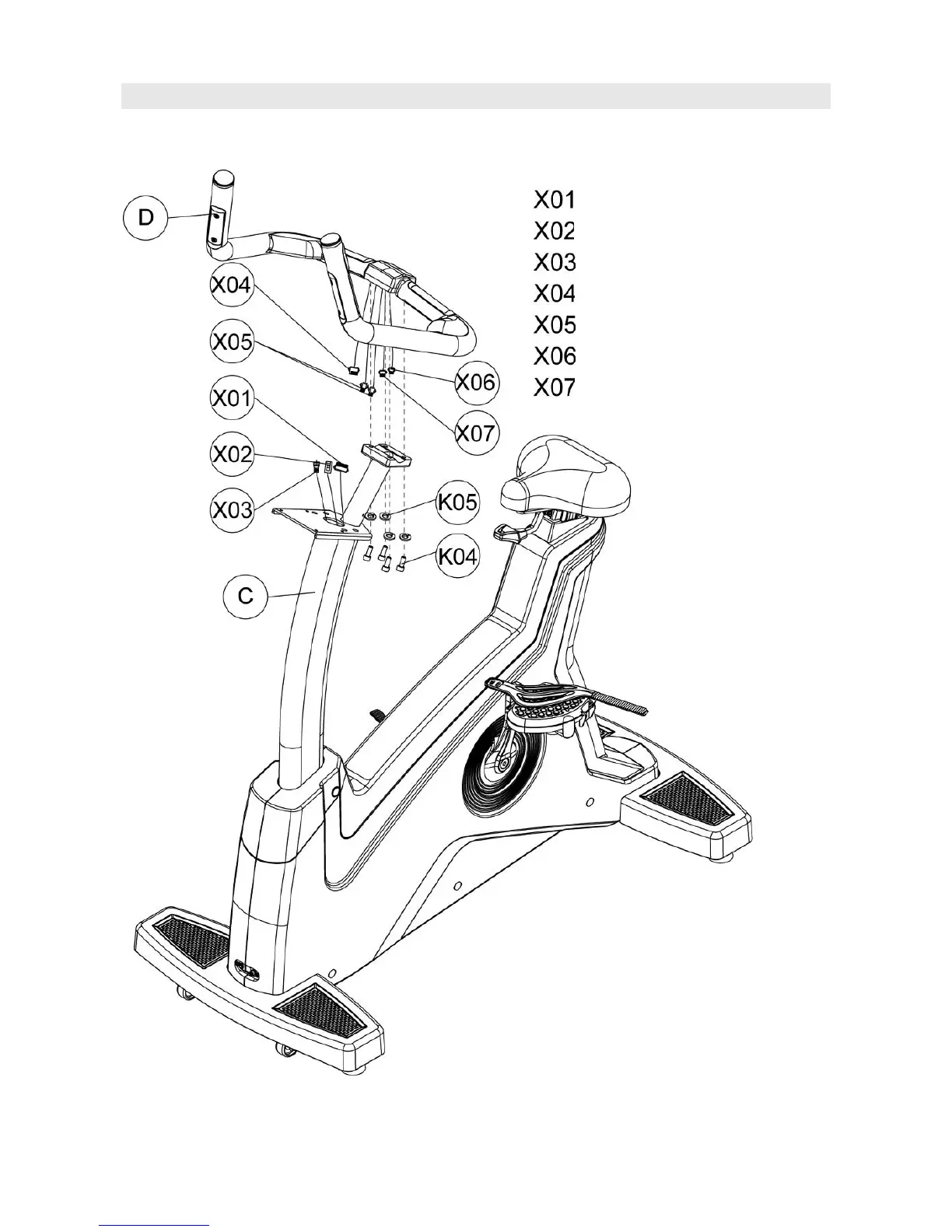

 STEP 4 ASSEMBLE CONTROL TUBE AND HANDLE BAR TUBE
Pull out the wires in handle bar tube(D) and make it through control tube(C), then tighten
handle bar tube(D) on control tube(C) with hex screw(K04), spring washer(K05).
: Lower control wire
: Network cable
: TV cable lower
: Lower hand grip pulse wire
: Lower hand grip pulse wire
: Hand grip instant key connecting wire lower
: Hand grip instant key connecting wire lower
