Part No. Description I'd Part No. Description I'd
61 Crank axle 1 136 Flat washer D28xD6.5x2.0T 2
62 Belt 1 137 Flat washer D18*D8.5*1.2T 2
63 Screw ST4*1.41*15L 5 138 Allen spanner 1
64 Computer 1 139 Spanner 1
65 Handle pulse 2

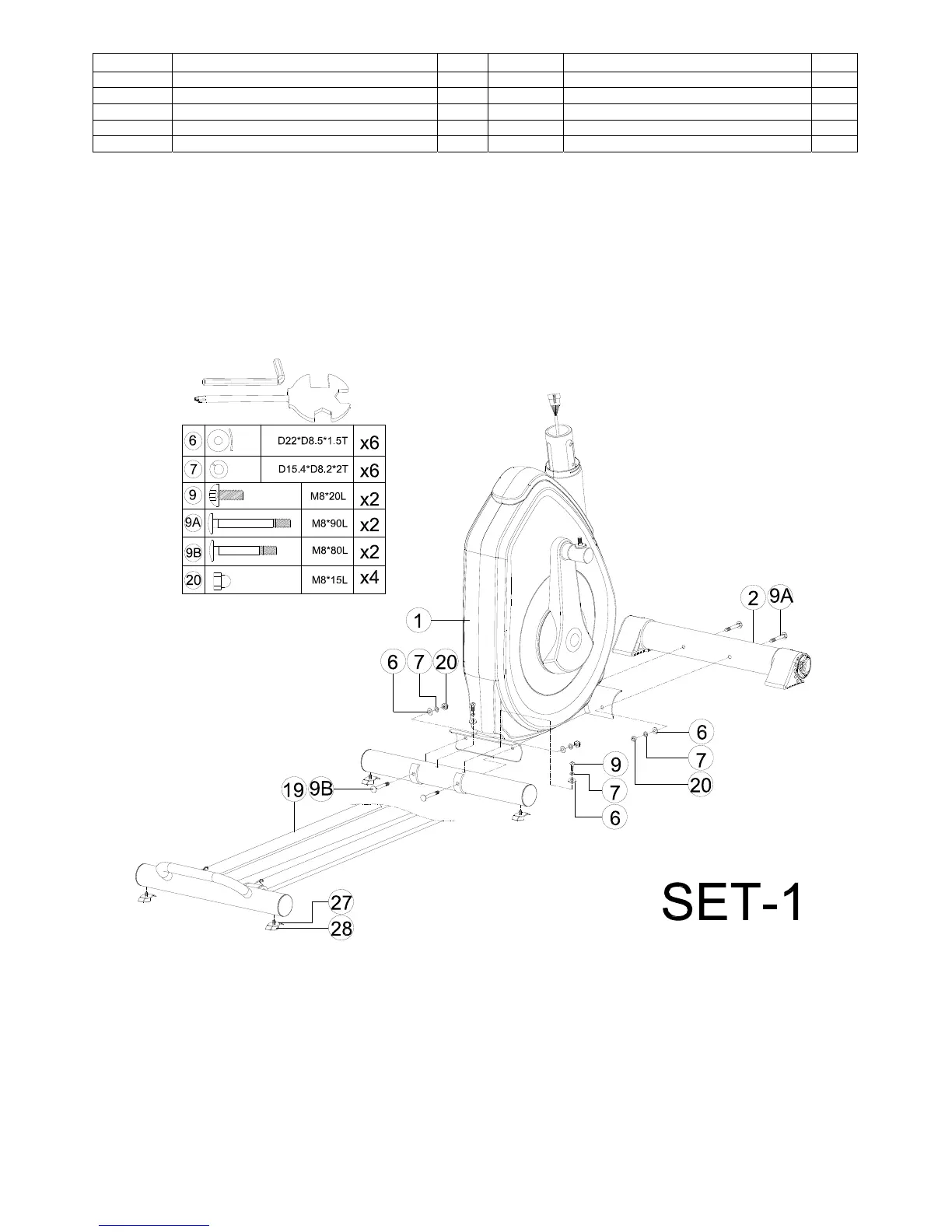

Assembly drawing:
Step 1
1) Assemble the Lock sheet（27）and Adjustable round wheel（28）to the rear stabilizer(19).
2) Assemble the rear stabilizer (19) to the frame (1) by the Allen bolt (9), square neck bolt (9B), the curved washer (6), the
spring washer (7) and the domed nut (20).
3) Fix the rear stabilizer (19) to the frame (1) by the Allen bolt (9B), the curved washer (6) and the spring washer (7).
4) Assemble the front stabilizer (2) to the main frame (1) by the square neck bolt (9A), the curved washer (6), the spring
washer (7) and the domed nut (20).
