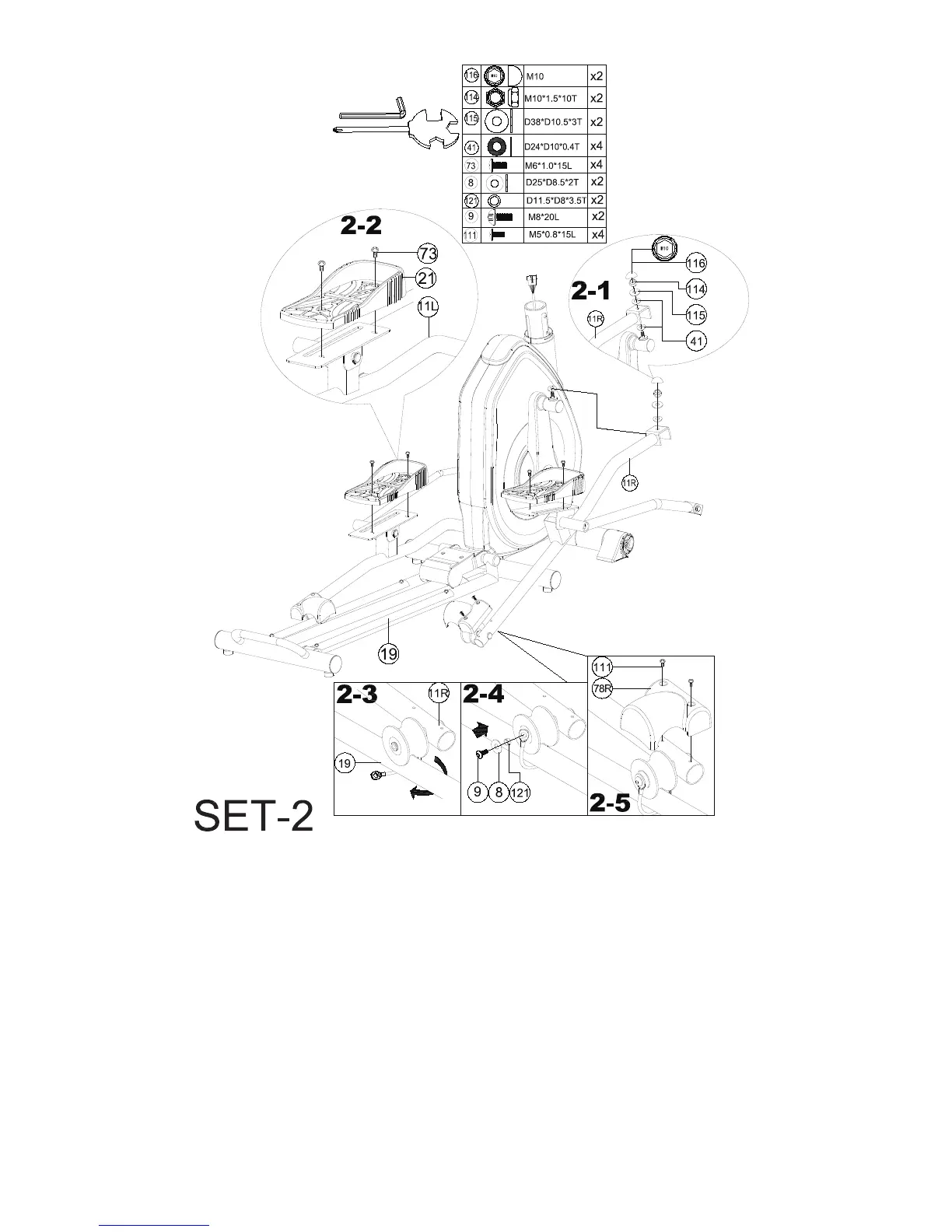

1) Assemble the supporting tube for pedal (11L&11R) to the rolling axle by the screw cap (116), Nylon nut (114), Flat
washer(115)and the plastic flat washer (41) shown as fig.2-1.
2) Assemble the pedal (21) to the supporting tube for pedal (11L&11R) by the bolt (73) shown as fig.2-2.
)3
Using the cable for wheel (122) to let the wheel (38) tied onto t he sliding beam from rear stabilizer (19) shown as
fig.2-3. Please follow the assembly instruction as the fig shown.
.4-2.gif sa nwohs )121( recaps eht ,)8( rehsaw talf eht ,)9( tlob nellA eht yb )221( leehw rof elbac eht gnixiF)4
5) Assemble the cover for wheel (78L&78R) to the supporting tube for pedal (11L&11R) by the bolt (111) shown as fig. 2-5.
