Bodyworx E400 - Page 9

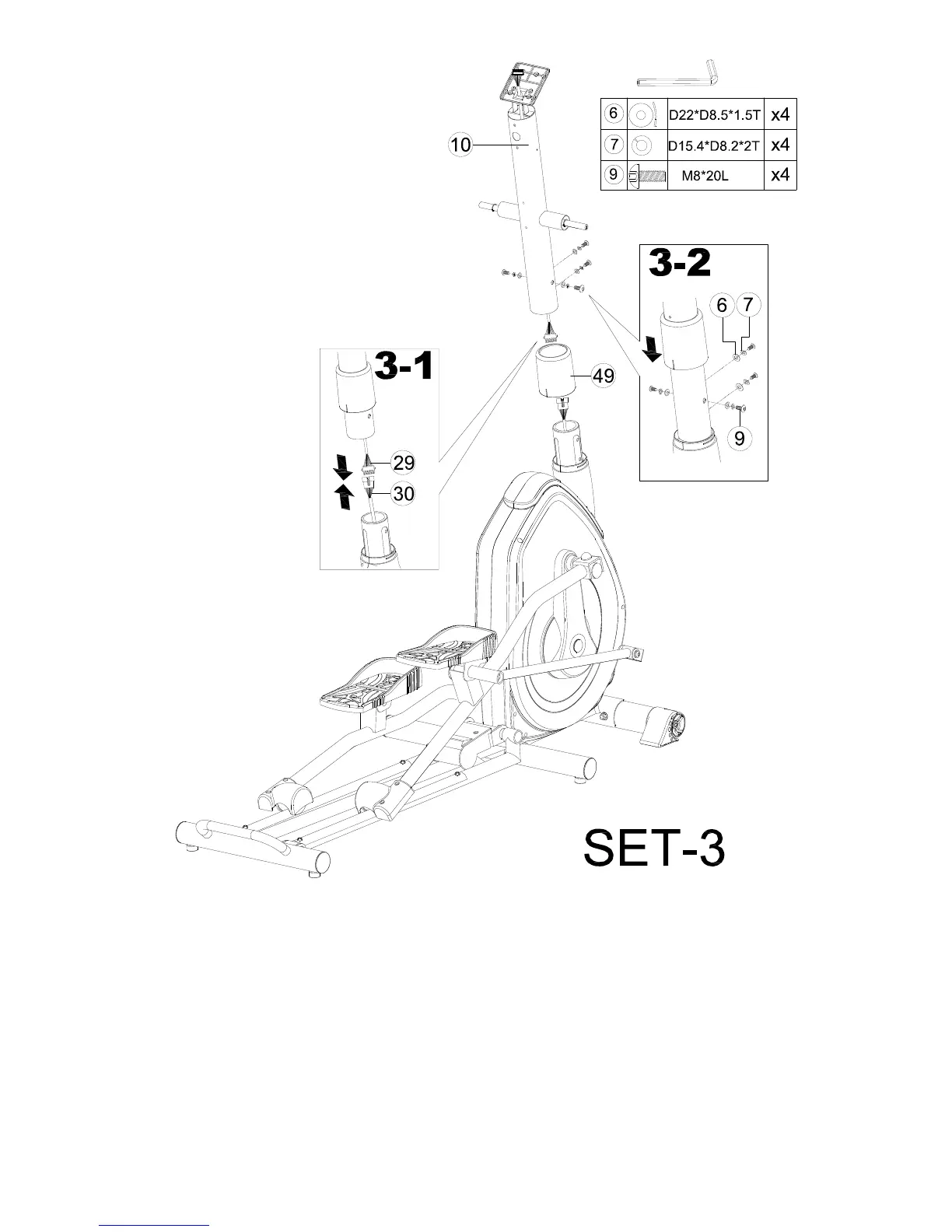

Step 3
1) Assemble the handlebar post cover (49) to the handlebar post (10).
2) Connect the upper computer cable (29) and the lower computer cable (30) shown as fig.3-1.
3) Assemble the handlebar post (10) to the main frame (1) by the curved washer (6), the spring washer (7), and the Allen bolt
(9).
