Boeing 747 - Page 37

3
1
2
3
2
1
3
2
1
BB
A
A
AND LET THE TEMPERATURE OF THE PART DECREASE TO AMBIENT IN STILL AIR.
B-B
A-A
EDM NOTCH
BD C
(25)
(51)
2.0
1.0
(3.3)
0.13
4.0
0.95
(101)
(110.2)
4.34
(24.1)
1.0
(25)
A
1. HEAT IN A FURNACE AT 1650 DEGREES FAHRENHEIT FOR 35 MINUTES
OR IN A SALT BATH OF EQUAL TEMPERATURE FOR 25 MINUTES.
TOLERANCE: ______INCHES
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS ARE IN PARENTHESES)
MATERIAL: 433OM OR 434OM STEEL BAR. THIS MATERIAL MUST BE NORMALIZED.
2. AT THE END OF THE HEAT TIME, REMOVE THE PART FROM THE FURNACE (OR SALT BATH)
TO NORMALIZE, FOLLOW THESE STEPS:
_____ NOTES:
EDM NOTCH - 0.25 (6.3) LONG X 0.040 (1.02) DEEP
- MAXIMUM WIDTH = 0.030 (0.76)
ETCH OR STEEL STAMP THE STEP IDENTIFICATION LETTER AS SHOWN
X.XX = ± 0.1
X.X
= ± 0.25
X = ± 0.5
___________MILLIMETERS
NDT4107
X.XXX = ± 0.005
X.XX = ± 0.010
X.X = ± 0.020
SURFACE FINISH: 63 RA OR BETTER IS NECESSARY
ETCH OR STEEL STAMP THE REFERENCE STANDARD PART NUMBER NDT4107 AS SHOWN
2130636 S0000459160_V1

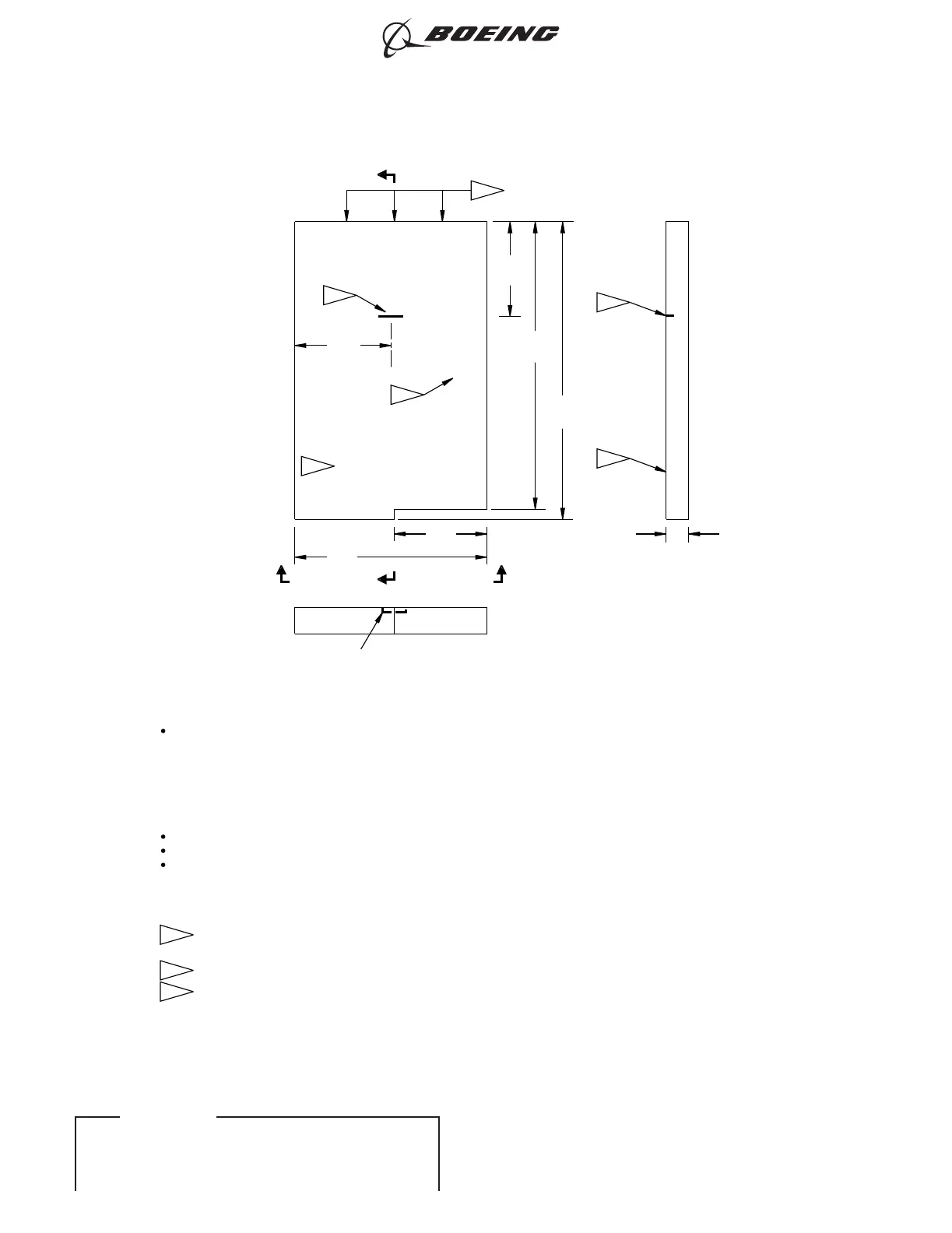

Reference Standard NDT4107
Figure 2
747
NONDESTRUCTIVE TEST MANUAL
PART 4 54-30-06
Page 7
Nov 15/2015D6-7170
