17. Spare parts list
17.1 Assembly body duct support

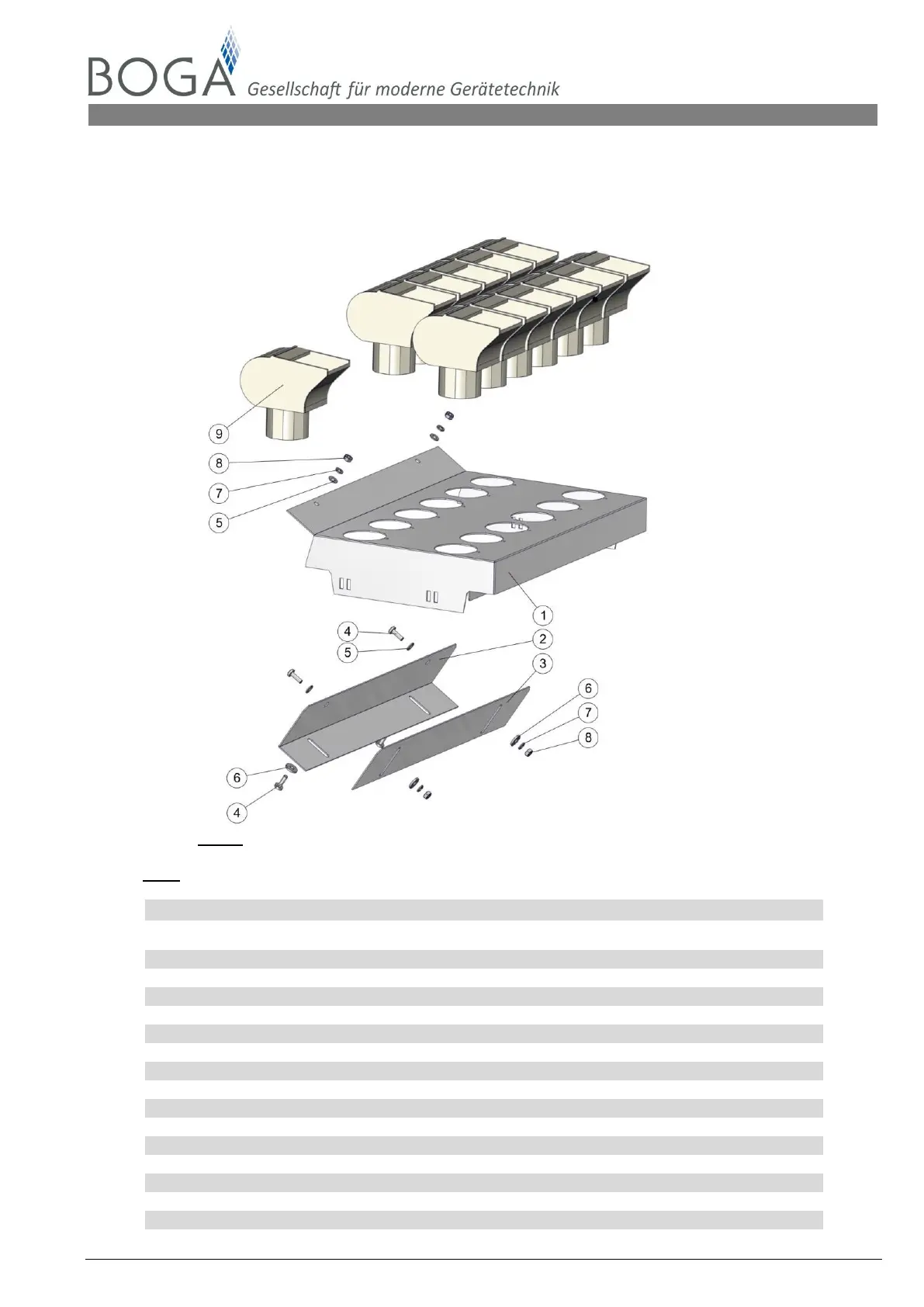

fig. 40 - Assembly body duct support
Tab.: 17.1
Pos.
Description
Item No.
NKBD-
6
NKBD
-12
NKBD
-18
NKBD
-24
NKBD
-30
NKBD
-36
NKBD
-42
1
Body duct support 6x
1737
-
-
-
-
-
-
1
Body duct support 12x
-
1738
-
1738
1738
-
1738
1
Body duct support 18x
-
-
1739
-
1739
1739
1739
2
Folded sheet duct support 6x
1718
-
-
-
-
-
-
2
Folded sheet duct support 12x
-
1719
-
1719
1719
-
1719
2
Folded sheet duct support 18x
-
-
1720
-
1720
1720
1720
3
Elbow extension duct support 6x
1721
-
-
-
-
-
-
3
Elbow extension duct support 12x
-
1722
-
1722
1722
-
1722
3
Elbow extension duct support 18x
-
-
1723
-
1723
1723
1723
4
Lensehead screw DIN-7985-A2-M4x12
1465
1465
1465
1465
1465
1465
1465
5
Disk DIN-125-A2-4,3
1532
1532
1532
1532
1532
1532
1532
6
Disk DIN-7349-A2-4,3
1493
1493
1493
1493
1493
1493
1493
7
Spring ring DIN-127-A2-B4
1998
1998
1998
1998
1998
1998
1998
8
Hexagon nut DIN-934-A2-M4
1531
1531
1531
1531
1531
1531
1531
9
Exhaust hood, big outlet
9033
9033
9033
9033
9033
9033
9033
