Bogen ADP1 User Manual

5
Wiring
Phone Connection

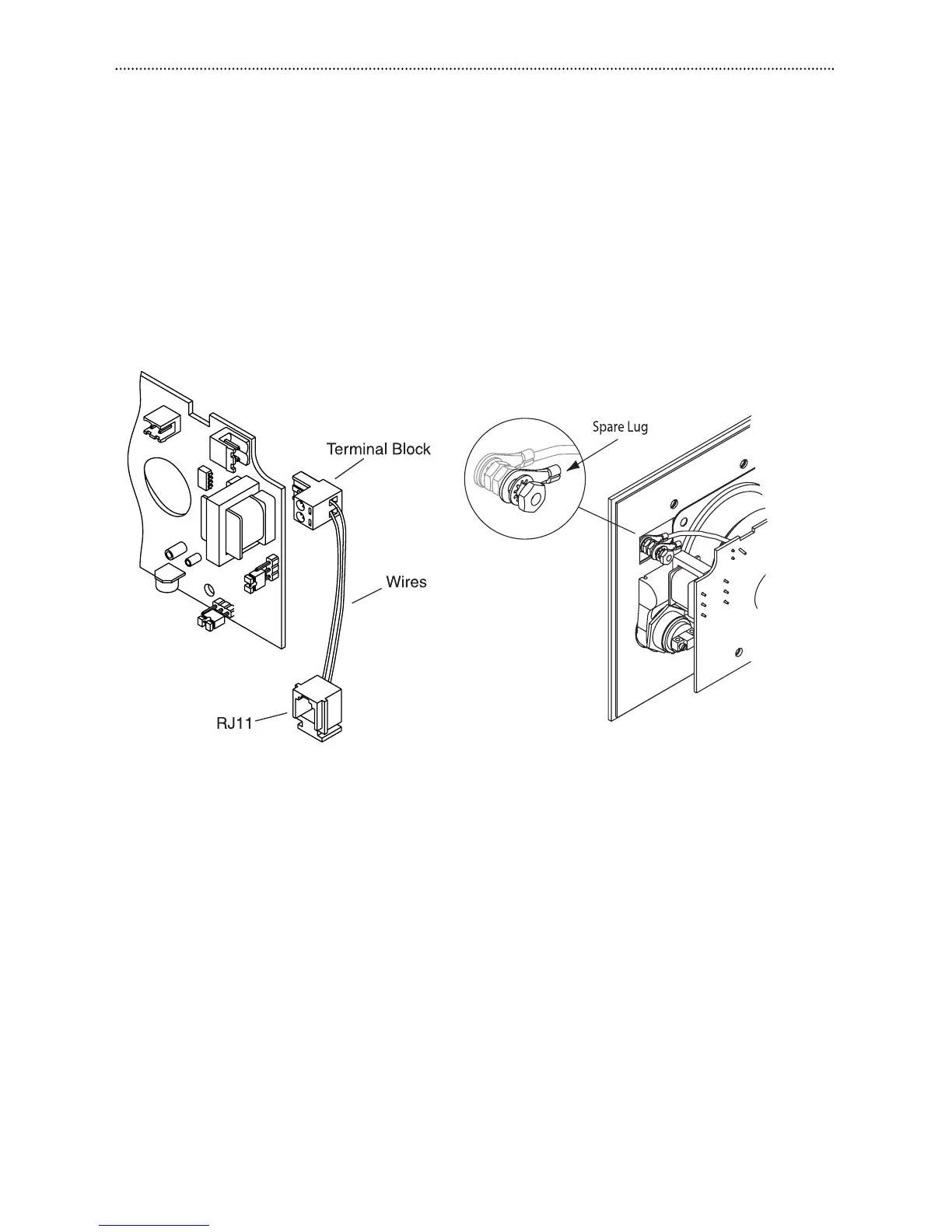

The ADP1 comes with an RJ11 wired to the pluggable terminal block. Connect the ADP1
to the phone system’s analog station line programmed for ring down operation using the
RJ11 or directly to the screw terminals depending on how the lines are terminated.The
connections to the terminal block are not polarity sensitive.
Surge Protection
To increase surge protection, connect a protective Earth Ground to the spare lug
provided. A ring lug is provided to which the protective ground lead is crimped.
Reassemble the lug to post as shown.

Bogen ADP1 Specifications

Power and Connectivity

power requirement	18V DC / 20 mA minimum
ring voltage	40V AC RMS minimum
ringer equivalence number	0.7A

Dimensions and Weight

unit dimensions without bezel	5" W x 5" H x 1[3]/4" D
unit dimensions with bezel	6[1]/4" W x 6[1]/4" H x 1[3]/4" D
product weight	4 lb.
