DRZ35 Installation

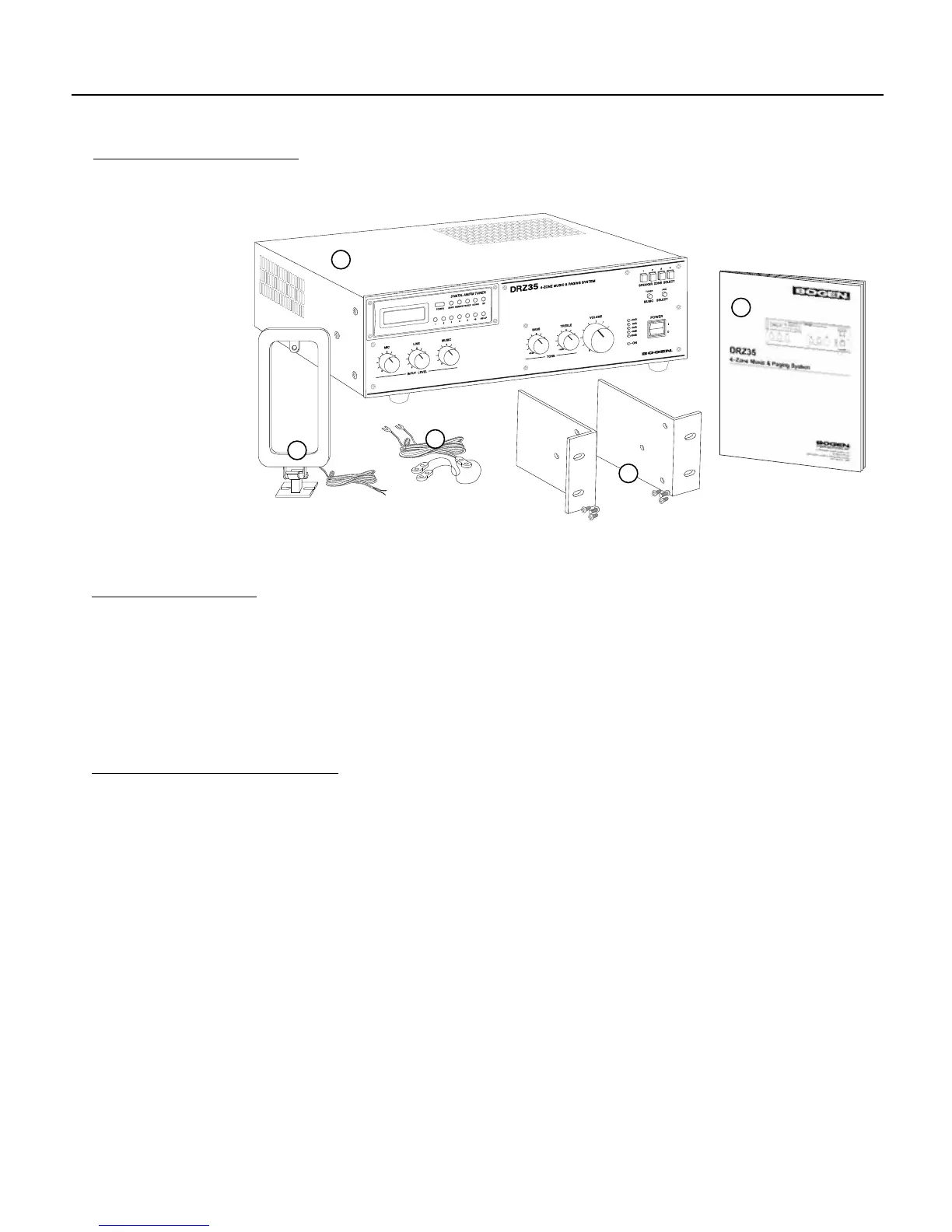

1. DRZ35 4-Zone Music & Paging Unit
2. Rack Mounting Brackets with screws
3. FM Dipole Antenna
4. AM Loop Antenna
5. Instruction Manual
PACKAGE CONTENTS
RACK MOUNTING
When assembling equipment in a rack, the DRZ35 should either be on the bottom of the rack or above any equipment
that does not produce heat to ensure a source of cool air to the bottom of the unit. Provide at least 1 RU (Rack Unit)
of space above and below the DRZ35 so that cool air is available to the unit. Rack mounting brackets are provided
with the unit. To attach rack mounting brackets to the DRZ35, first remove and discard the three screws located toward
the front on each side of the unit. Using the screws included with the rack brackets, attach the brackets to each side
of the unit.
SHELF / TABLE MOUNTING
When placing the DRZ35 on a shelf or table, the unit should ideally stand alone with no equipment on top of or beneath it.
If the DRZ35 must be stacked with other equipment, care must be taken to ensure that the DRZ35, which is passively
cooled, be allowed a minimum clearance of 1/2” for the bottom (set by height of the unitʼs feet) and a minimum of 1” from
the top to other obstructions. Be sure that any equipment situated below the unit produces little heat. The sides of the
DRZ35 have no specific clearance area requirements. These are minimum acceptable clearances, however the more
space provided, both top and bottom, the better. Rubber feet must be installed on the unit to allow it to be placed on
a shelf or tabletop.
1
2
3
4
5
