Product Features:
• 8 independently assignable inputs
• Dual-bus design with Main/AUX output selector
for each input
• Pluggable terminal strip connections
• Separate Auxiliary input
• Balanced inputs and outputs
• Direct bus connection for cascading multiple mixers
• MIC/Line switch for each input and Main output
• Gain/Trim Control for each input
• Low Cut Filter for each input
• Switchable Phantom Power for condenser MIC inputs
• Input Level Control knob for each input
• Output Level Control knob for Main and AUX outputs
• Heavy-duty construction
• External power supply included
• Single-rack space design
• Compressor/Limiter (Main output)
• Compressor/Limiter Bypass switch
• Adjustable Threshold and Ratio Controls
• LED Bar Graph Output Meter (Peak or Average)
• Headphone Output
The Bogen CAM8PRO is an 8-input, dual-bus MIC/Line mixer that combines superb performance with a generous array of simple-to-
use features in a single rack space design. It features 8 independently assignable inputs switchable between MIC and Line. Each
input has a trim control, a switchable low cut filter, and a Main/Auxiliary bus output selector. Phantom Power can be universally
applied to all MIC-selected inputs for condenser microphones. The CAM8PRO also features a built-in Compressor/Limiter with
adjustable Threshold and Ratio Controls, a Bar Graph Output Meter that indicates input signal levels, and a headphone jack.

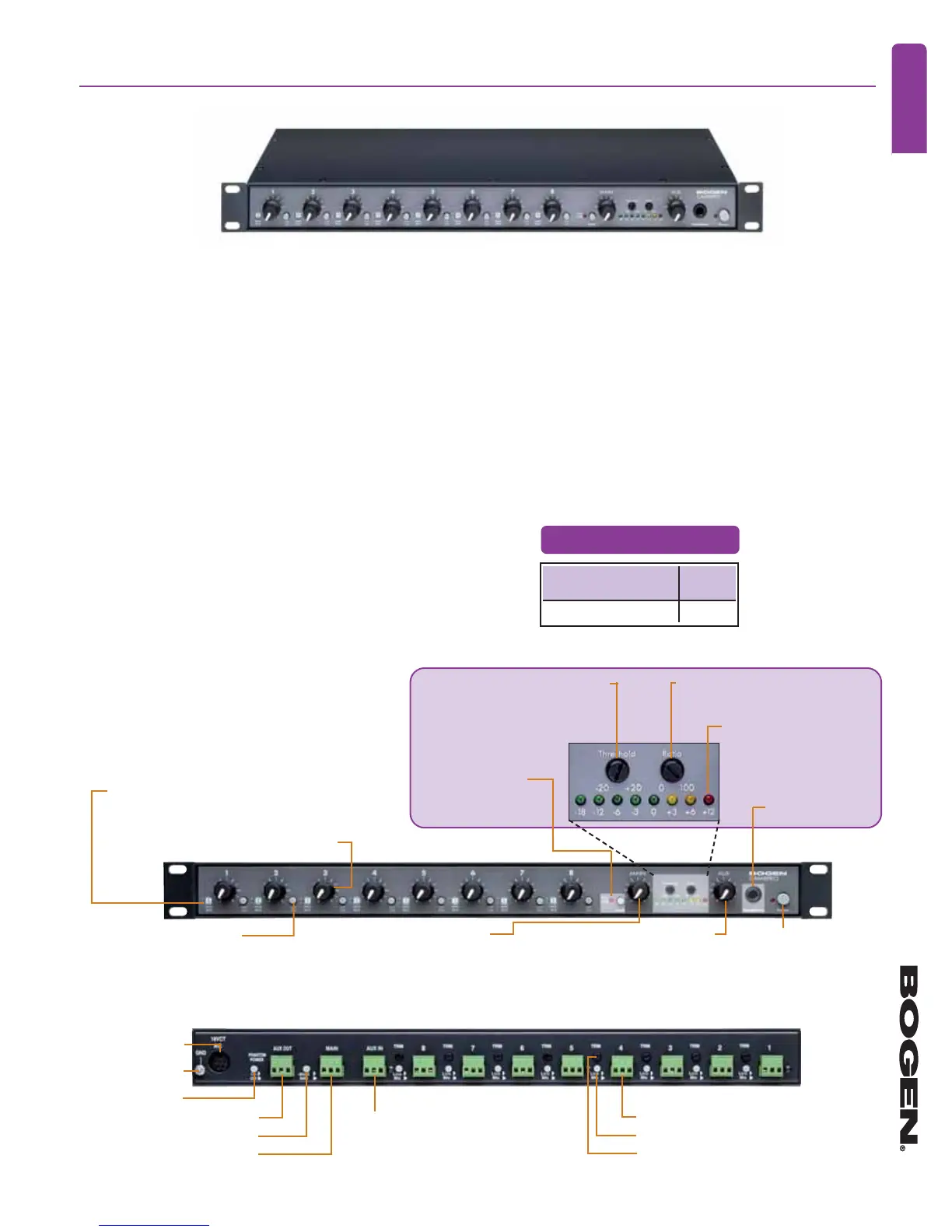

Front Panel
Rear Panel
AC Power Jack
Ground Connection
Phantom Power
Switch
Main/Auxiliary Bus Selector (one per channel)
Allows an input to be routed to Main, AUX, both, or neither.
Main Output Volume Control Knob
Controls the output signal volume of the Main
bus. The Compressor/Limiter only works on
Main bus.
Auxiliary Output Volume Control Knob
Controls the output signal volume of the AUX
bus and headphones.
Threshold Control
Sets signal level (-20 to +20VU; factory setting 0VU)
at which the Compressor/Limiter becomes active.
Headphone Jack
Ratio Control
Sets the amount of compression (0 to 100%; the factory
setting is 100%) of the signal above the threshold.
Compressor/Limiter
Switch & LED
Reduces clipping distortion at the
main output. The brighter the LED,
the more the signal is being
compressed.
LED Bar Graph Output Meter
Displays output level in dB, ranging
from -18 (green) to +12 (red).This
meter can be set to indicate average or
peak level of the Main or AUX bus.
Low Cut Switch (one per channel)
Helps eliminate low frequency noise.
Channel Volume Control Knob
(one per channel)
Power Button
& Indicator LED
Auxiliary Bus Output
Main Output MIC/Line Switch
Main Bus Output
Pluggable Terminal Strips Inputs
Input Pad MIC/Line Switch (one per channel)
Input Gain/Trim Control (one per channel)
Direct Mix Bus Input
Product
Dimensions Weight
19" W x 1-3/4" H x 7-1/2" D 9 lb.
