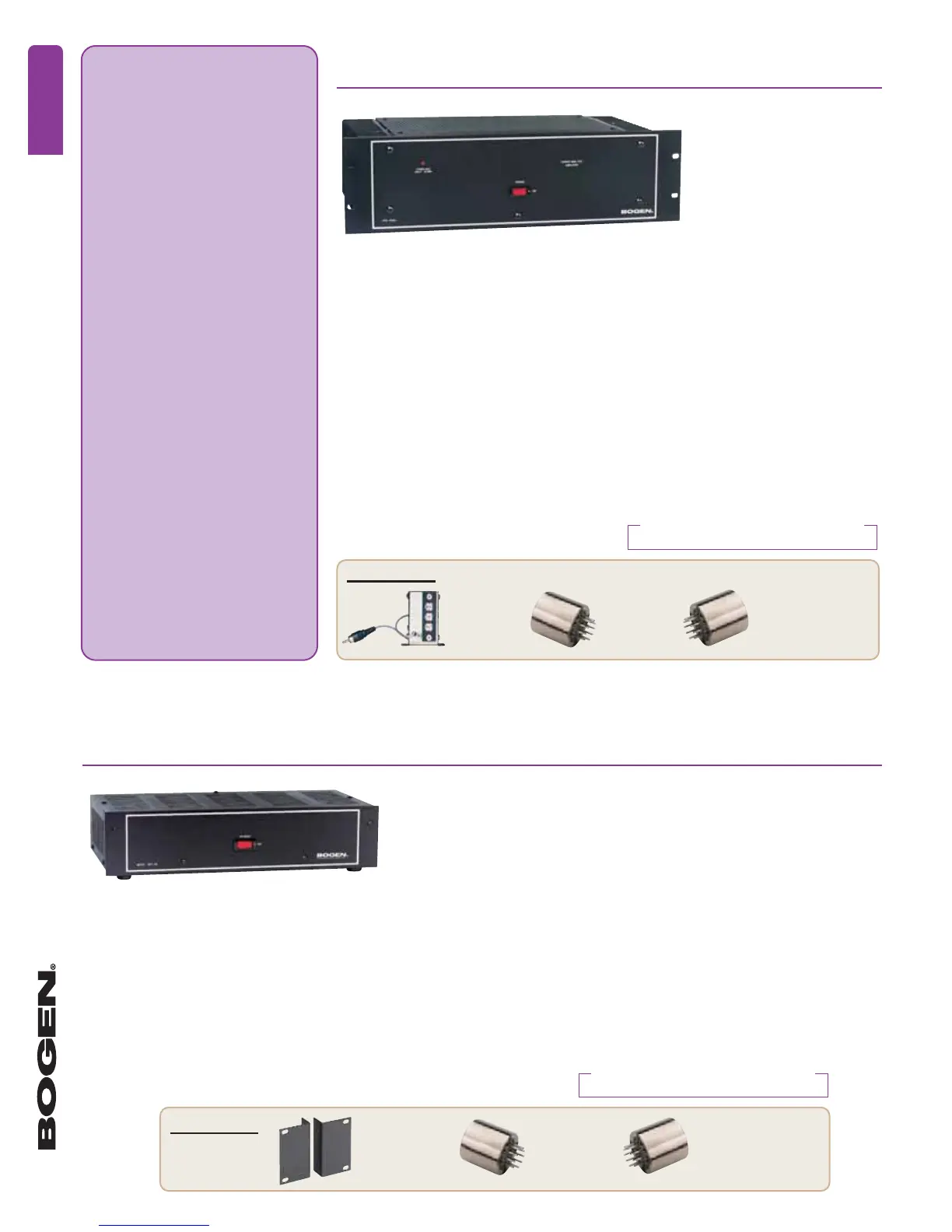

Page #9 background imageLoading...
Page #9 background image
Product Features:
125- and 250-watt models
Convection-cooled
Power MOSFET output circuitry
Thermal protection and automatic
electronic overload protection
Hi-Z unbalanced and Lo-Z balanced or
unbalanced input w/accessory trans-
former (TL600)
Internal Low Cut filter switch
90 dB signal-to-noise
4- and 8-ohm, 25V, 25VCT and 70V outputs
Input sensitivity: Hi-Z, 500 mV; Lo-Z,
150 mV (HTA125A), 150 mV (HTA250A)
Power Consumption: 260W (HTA125A);
520W (HTA250A)
Line bridging (driving multiple amplifiers)
is possible w/ an accessory transformer
(TL100)
19" rack-mount design (3 rack space
s)
Listed to UL Standard 60065
for US and Canada
Technical Specifications, Dimensions,
and Weights can be found on Page 79
Heavy-Duty Operation
The HTA line of amplifiers are designed to
be workhorses. Large heat sinks and huge
transformers allow these amplifiers to sup-
ply continuous, full (RMS) power to loads,
even at high ambient temperatures. The
HTA amplifiers are convection-cooled, so
they provide the ultimate in set-and-
forget operation.
More amazing than the heavy-duty capa-
bility of the HTA amplifiers is the quality of
the output. The frequency response will
remain within +/- 1 dB and have less than
0.5% distortion over the entire audio range
(20 Hz – 20 kHz). What is so special about
this? The output is transformer-coupled.
Few transformer-isolated amplifiers can
even come close to these specifications.
An enormous output transformer using
proprietary coil winding techniques is what
allows the HTA to reach this level of
performance.
A Power MOSFET output stage completes
the extremely reliable and durable per-
formance of these amplifiers. This type of
transistor does not suffer from many of the
failure modes of the more typical transis-
tors (bi-polar types). The result is an
amplifier that can operate reliably at full
power and supply transformer-isolated,
high-quality, full bandwidth (20 Hz –
20 kHz) audio.
HTA125A,
HTA250A
The HTA Series high-performance power amplifiers can safely drive loads continuously
at full (RMS) power. Overload protection includes an electronic shutdown circuit and
a thermal breaker.
Accessories
TL600
600-ohm
Impedance-Matching
Transformer
TL100
1:1 Bridging
Transformer
WMT1A
Matching
Transformer
www.bogen.com
46
AMPLIFIERS
MONO-CHANNEL POWER AMPLIFIERS
MONO-CHANNEL POWER AMPLIFIER
BPA60
Product Features:
60 watts
1 input: Hi-Z unbalanced
Lo-Z balanced input with accessory
transformer
Input level control and
Low Cut filter switch
8-ohm/25V, 16-ohm, 25VCT, and
70V outputs
Sensitivity: 300mV, Hi-Z; 75mV, Lo-Z
Resettable circuit breaker and thermal
protection
Operates with 25V and 70V systems
120V AC, 60 Hz, 180W @ full rated
output
Rack-mountable with accessory
mounting kit: RPK53 (2 rack spaces)
Listed to UL Standard 60065
for US and Canada
Accessories
The BPA60 supplies 60 watts of power amplification for professional
and commercial sound systems requiring continuous high-quality sound.
TL600
600-ohm
Impedance-Matching
Transformer
TL100
1:1 Bridging
Transformer
RPK53
Rack
Panel Kit
Technical Specifications, Dimensions,
and Weights can be found on Page 79
