BOLEX EL - Bolex Animation Motor Installation; Connecting the Animation Motor

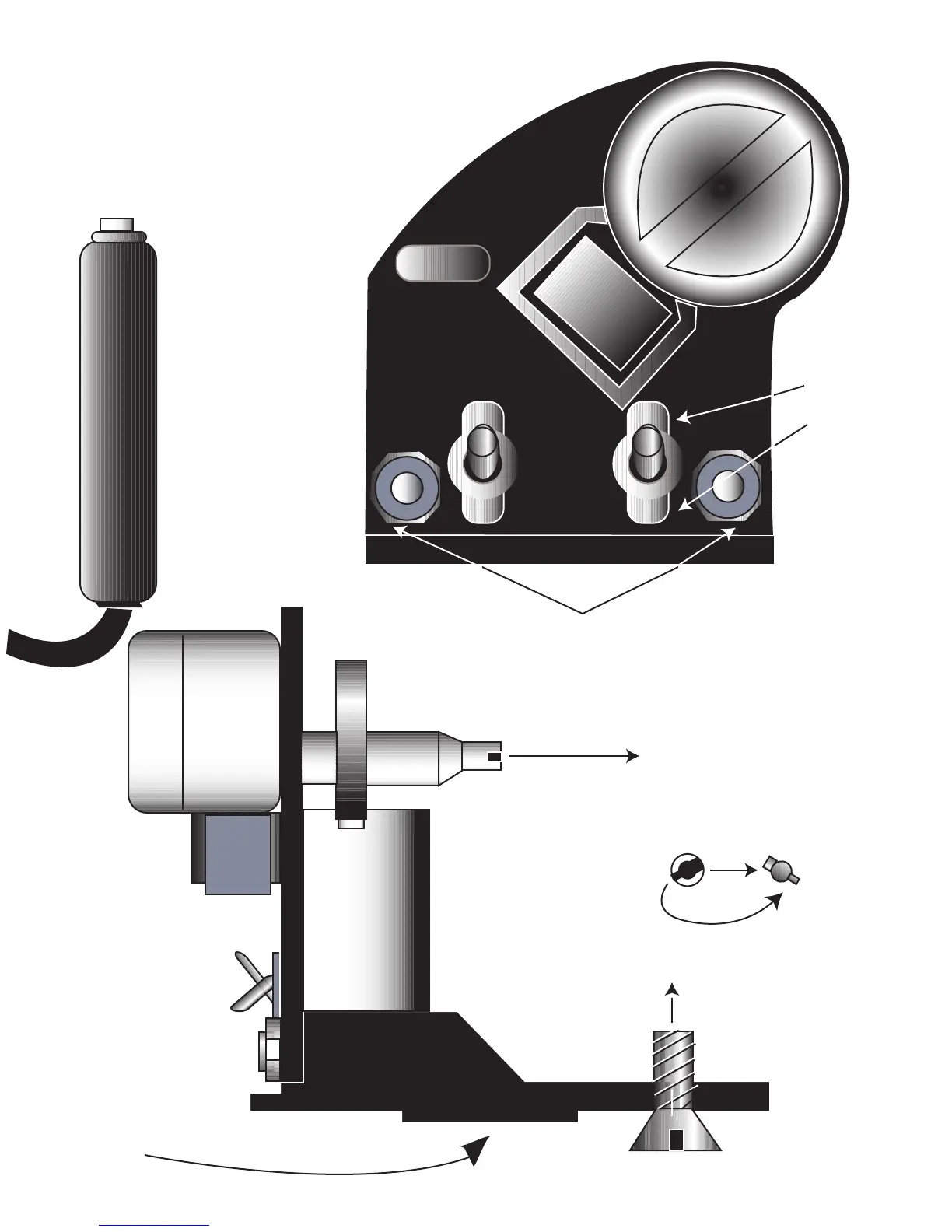

Coupling spindle goes into # 11 on the
Bolex. Check to make sure that the
teeth engage correctly.
Motor mount screw attaches to
underside of Bolex base.
on F
o
f
f



R
Push this button
and be brilliant.
The Bolex 1/2 second
exposure, animation motor
Tripod screw
attaches to the
underside of the
motormount
base.
If your motor makes a grinding noise and the camera
shutter does not turn over, carefully loosen these two
bolts and adjust the motor forwards or backwards
until the binding noise stops and the shutter turns
over freely.... (Hope that you never have to do this...)
forward camera
direction
reverse camera
direction
(SIDE VIEW)
(FRONT VIEW)
