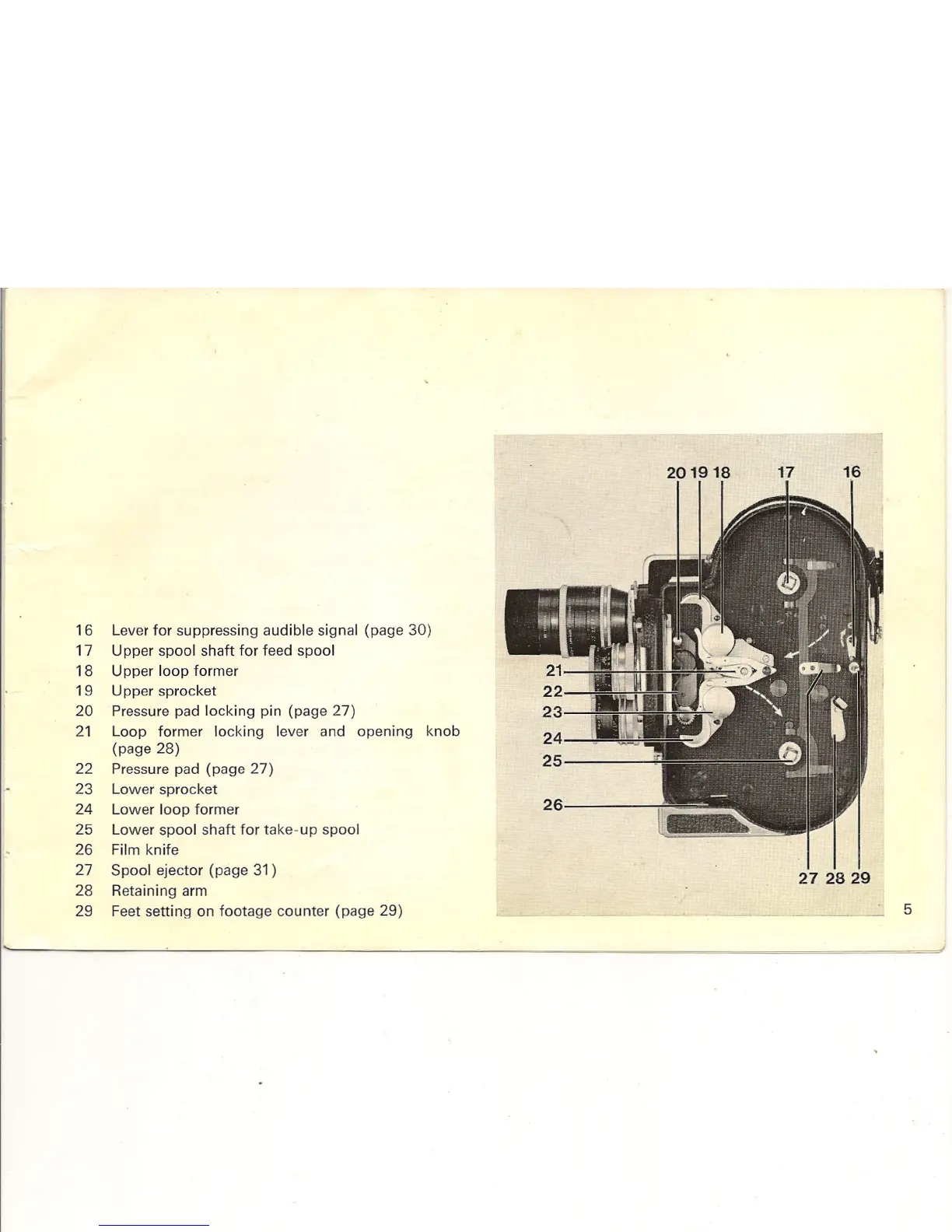

16 Leverfor suppressing audible signal (page 30)
17 Upper spool shaft for feed spool
18 Upper loop former
19 Upper sprocket
20 Pressurepad locking pin (page 27)
21 Loop former locking lever and opening knob
(page 28)
22 Pressurepad (page 27)
23 Lower sprocket
24 Lower loop former
25 Lower spool shaft for take-up spool
26 Film knife
27 Spool ejector (page 31)
28 Retaining arm
29 Feet setting on footage counter (page 29)
201918
16 .
5
17
27 2829
