- 28 -
Installation
• Cut the work surface according to the above drawing.
NOTE
Before sawing, cover the outer edge of the cutout with wide ad-
hesive tape to prevent traces of the saber jig saw on the work
surface.
• Seal the cut surfaces with special temperature-resistant lacquer, silicon, or
cast resin to prevent swelling of the work surface from moisture.
• Place the glass-ceramic hob with the glass side facing down onto a stable
base. Use a suitable base to prevent scratching of the glass-ceramic sur-
face. The hob must not be subjected to any forces.
• Connect the connection cable to the appliance as described in the chapter
Electric Connection.
• Insert the appliance with the operation panel at the front into the cutout.
Make sure that the distance to the cutout is the same on all four sides.
• Mount the hob with the four supplied holders onto the work surface. De-
pending on the thickness of the work surface, the holders can be installed
in two ways (refer to the following gure).

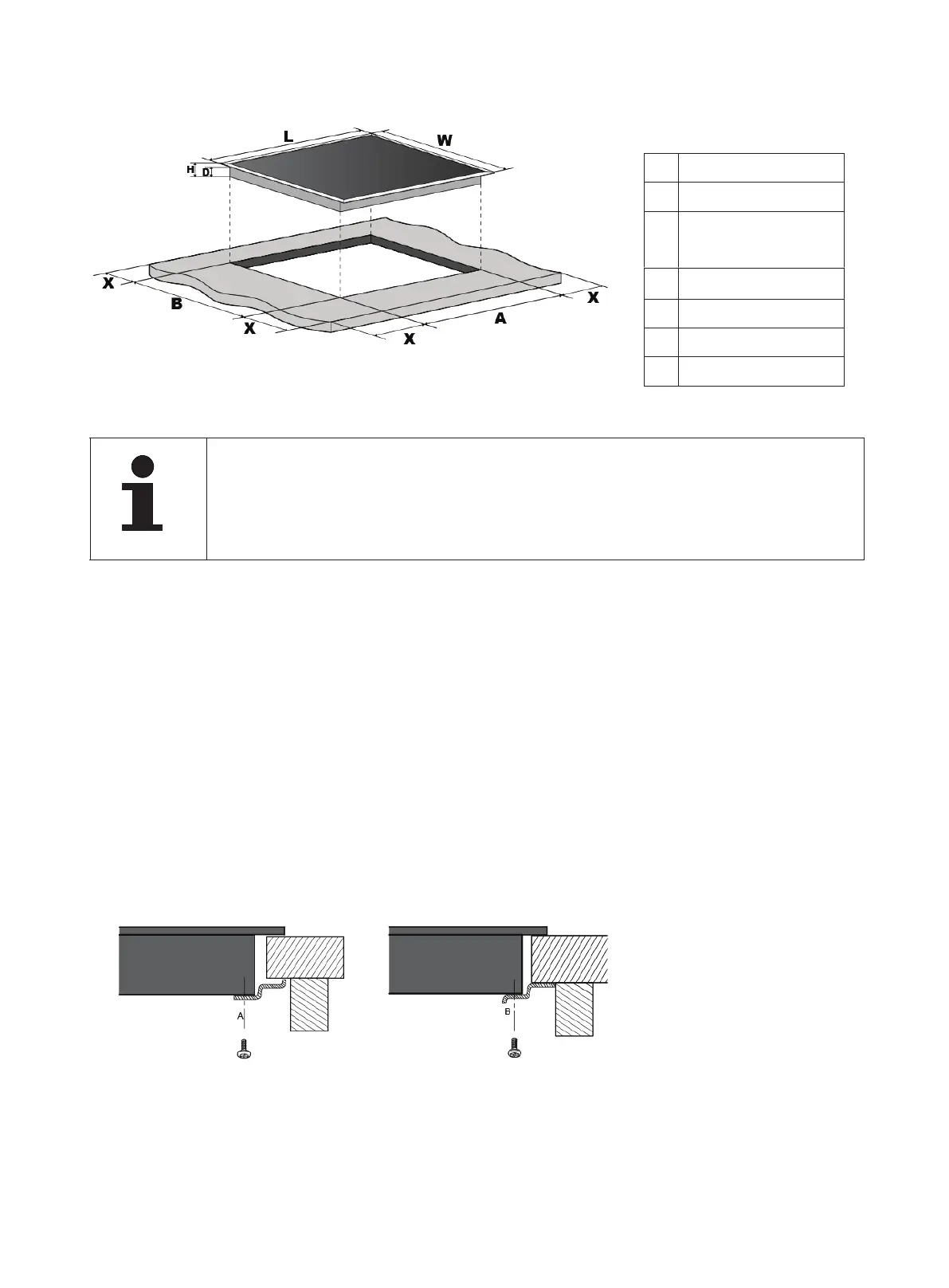

Dimensions:
A 560 mm
B 490 mm
X At least
50 mm
L 590 mm
W 520 mm
H 55 mm
D 51 mm
