19

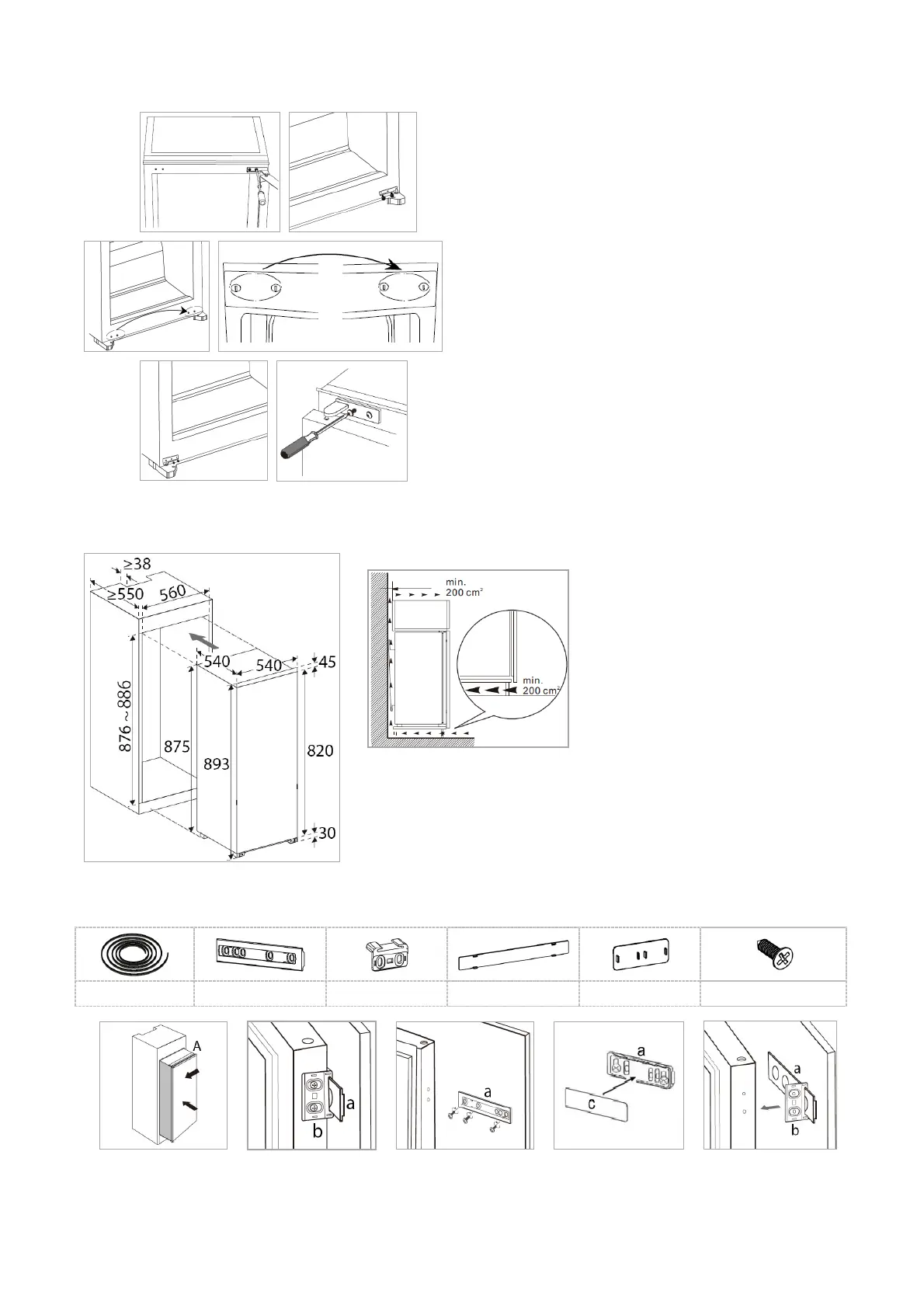

• Dismount the upper door hinge, lift the appliance
door and set the door safely aside.
• Dismount the lower door hinge.
• Place the respective blind caps on the exposed
holes of the upper and lower door hinge.
• Turn over the originally upper door hinge and
install it at the bottom left side.
• Put on the appliance door and fix it in the intend-
ed position.
• Turn over the originally lower door hinge and in-
stall it at the top left side.
Check that the door is aligned vertically and horizon-
tally to ensure proper opening and closing of the
door.
B
BB
Built
uiltuilt
uilt-
--
-in
inin
in
Figures in mm
For ventilation, an exhaust duct of approx. 38 mm depth must be
provided on the appliance back.
The ventilation openings in the furniture base and building must be
min. 200 cm² to ensure that heated air can be freely escape.
Mounting material
Mounting materialMounting material
Mounting material
(R) 1x seal (a) 2x guide rail (b) 2x bracket (c) 2x cover (d) 2x cover (S) min. 15x screws
1
11
1
2
22
2
3
33
3
4
44
4
5
55
5
