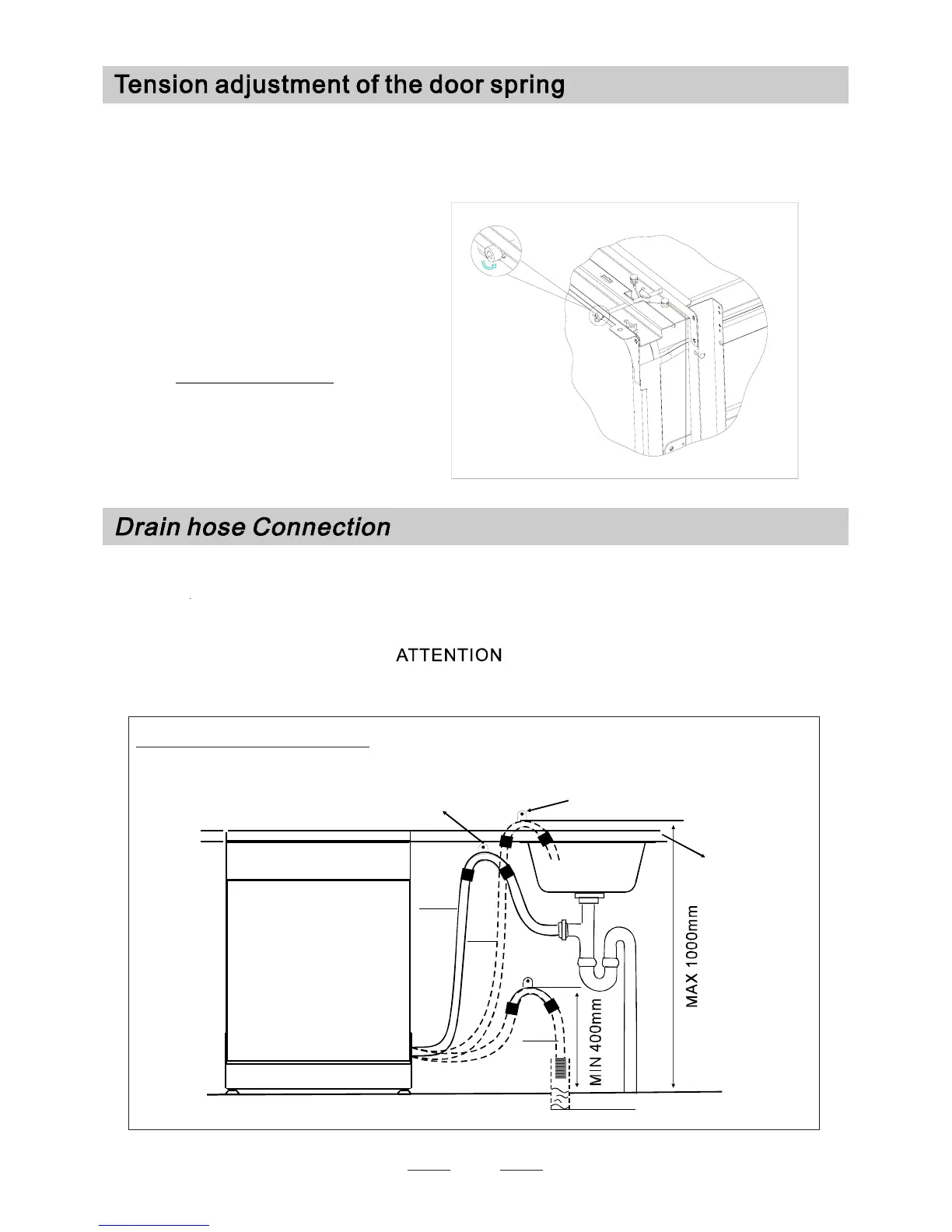

Ten si o n adjus t me nt
of the door spring
ʧʨ
Figure5
The door springs are set at the f act ory t o the proper tensi on f or the ou ter door.
If aesthetic wooden panel are installed, you will have to adjust the door spring
tension. Rotate the adjusting screw to drive the adjustor to strain or relax the
steel cable(see figure 5).
SFMBY
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run int o the sin k, m akin g sure to a void bending or c rimpin g it. Use th e sp eical
plastic support that comes with the appliance (figure 6).
to avoid the back flow of it. : The special plastic hose support must be
solidly fastened to the wall to prevent the drain hose from moving and allowing water
to spill outside the drain.
The top of the hos e must be at
aheightbetween40and100cm.Thefreeendofthehosemustnotbeimmersedin
water
Drain pipe connection
ʧʨ
Figure6
Ĩ 40mm
A
B
C
Counter
Front
Drain pipe
Drain hose hook
Close the drain hose hook to the counter
NOTE
The top of the hose
must be at a height
be tween
40 an d 100cm.
The free end of the
hose must not be
immersed in water.
Adjust the door spring
tension until the door
rema ins b alance in the
fully-opened position.
