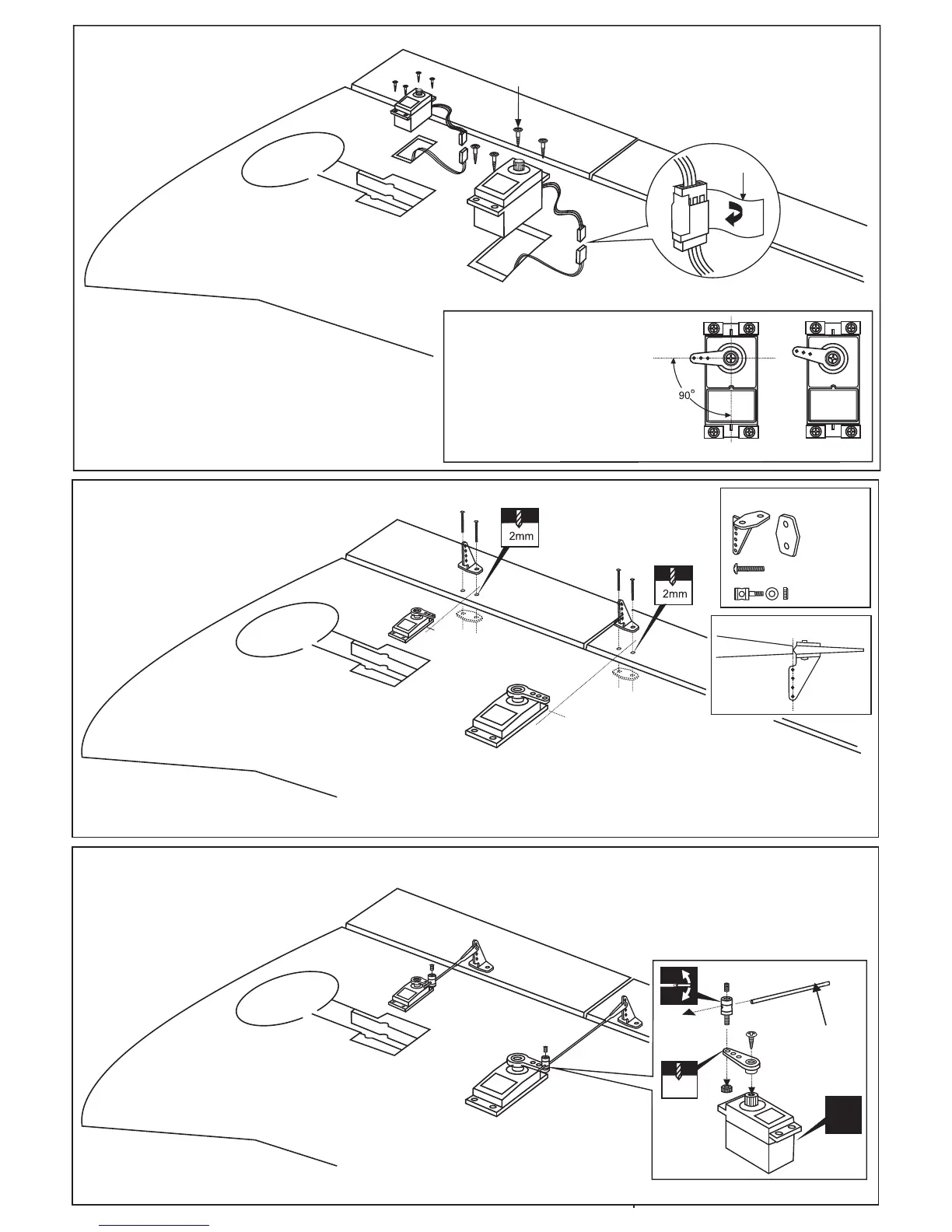

BONANZA BEECHCRAFT - Wing Assembly - Ailerons and Flaps; 1-Aileron and Flap Servo Installation; 2-Aileron;Flap Control Horns; 3-Aileron;Flap Linkages

1-Cut away the covering of the wing bottom
where the aileron servo goes.
2-Connect the aileron servo cord to the aileron
extension cord.
3-Install the aileron servo on the servo mount.
-Switch on the radio (trims centered)
then mount the ailerons servo horn
in neutral position.
-The servo horn should be
perpendicular to the servo
YES
NO
1-Depending on the position of the linkage, determine the location of aileron control horn.
The horn holes must be perfectly aligned with the axis of articulation.
2-Mark the position of the “foot” of the horn on the aileron. Then, with the drill, make the 2
holes.
3-Install the aileron control horn as shown.
Included with the
radio set.
Adhesive
tape
Plastic control horn
..........4
2x30mm....8
..........4
Control horn Alignment
Do the same way with second
wing half.
Do the same way with second
wing half.
Do the same way with second
wing half.
X
3mm set Screw
2 mm
Aileron pushrod
D=5/64”(2mm)
1-Aileron and Flap servo
2-Aileron/Flap control horn
3-Aileron/Flap linkages
WING - BOTTOM VIEW
WING - BOTTOM VIEW
WING - BOTTOM VIEW
