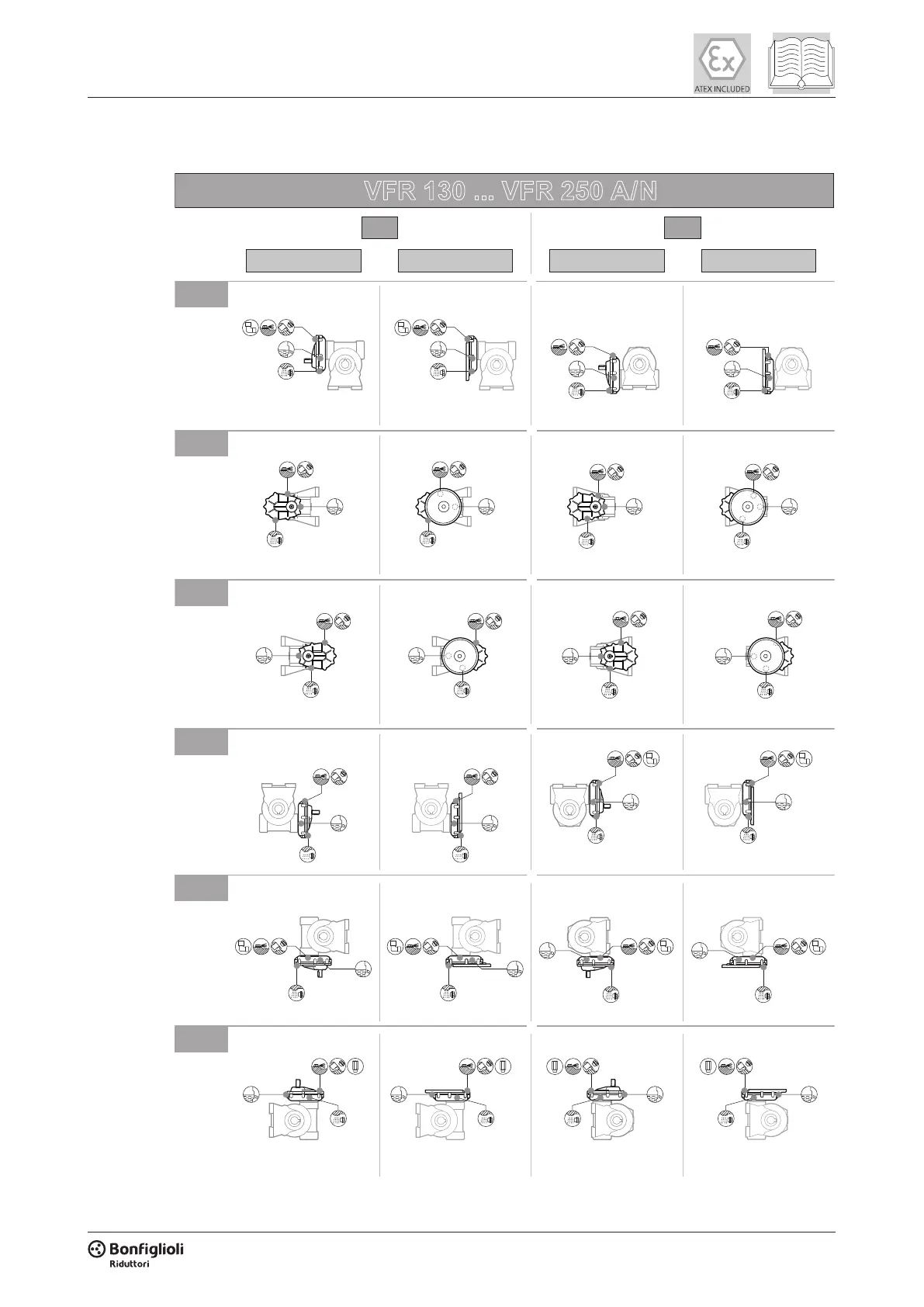

VFR 130 ... VFR 250 A/N
A N
HS P (IEC) HS P (IEC)
5.9.3.3 Worm gearboxes with helical pre-stage: VFR
Service plugs for the _VF (main reduction) section only are shown in section 5.9.3.1 of this manual.
