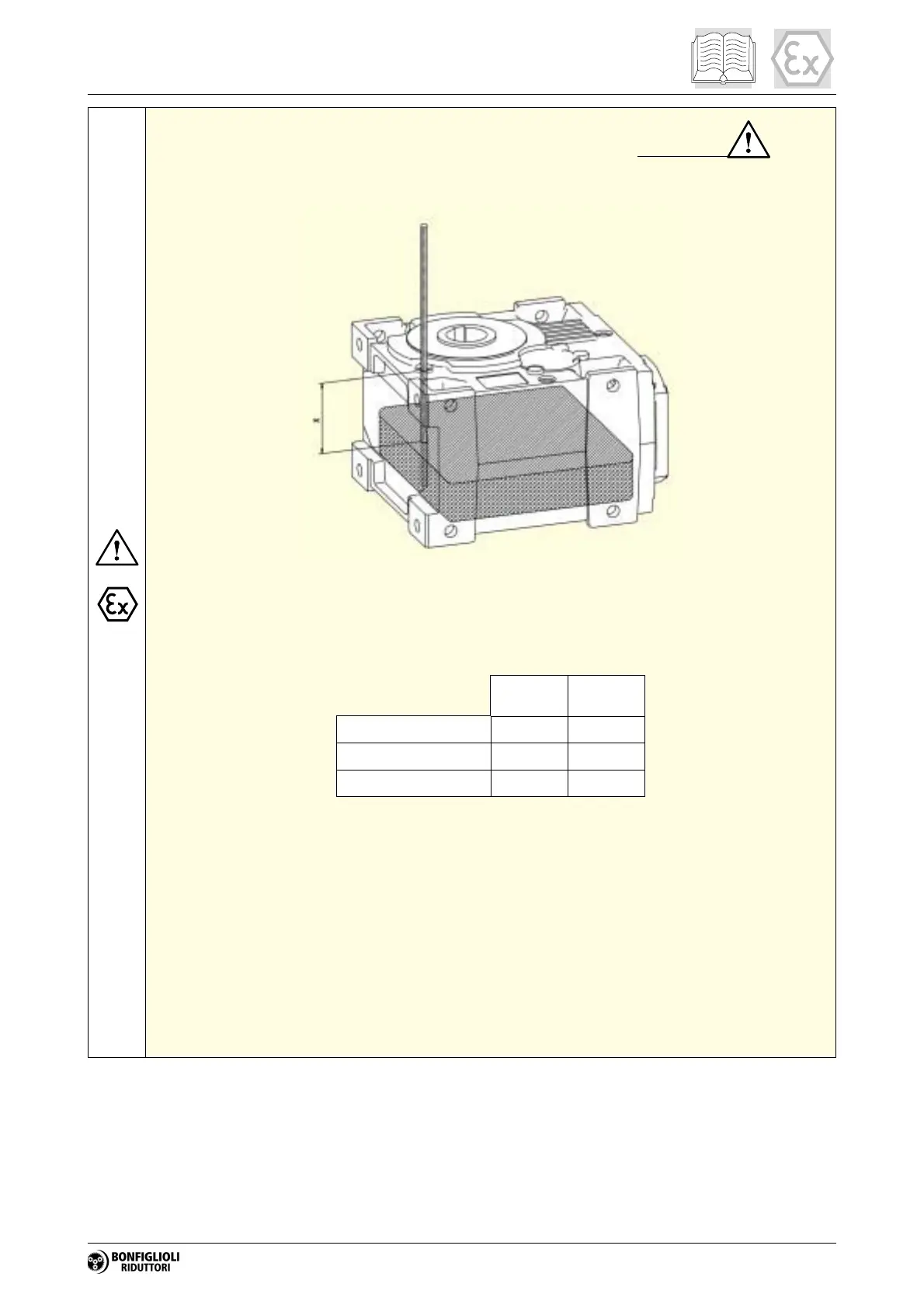

Bevel helical gear units A 10, A 20 and A 30 - Mounting positions B6 and B7
(S5)
Values in the table are given in mm
To check the oil level, proceed as follows:
1. Place the gear unit in the mounting position as shown in diagram (S5).
2. Insert a dipstick through the yellow service cap (on top of the gear unit) until it touches the
floor of the casing. Mark the level of the upper surface of the casing on the dipstick in this po
-
sition.
3. Extract the dipstick and measure the distance X shown in diagram (S5) above.
4. The value X must be less than the value given in table (A8).
B6 B7
A 10_ P63...P112 30 30
A 20_ P63...P112, HS 25 25
A 30_ P63...P112, HS 30 30
(A8)
