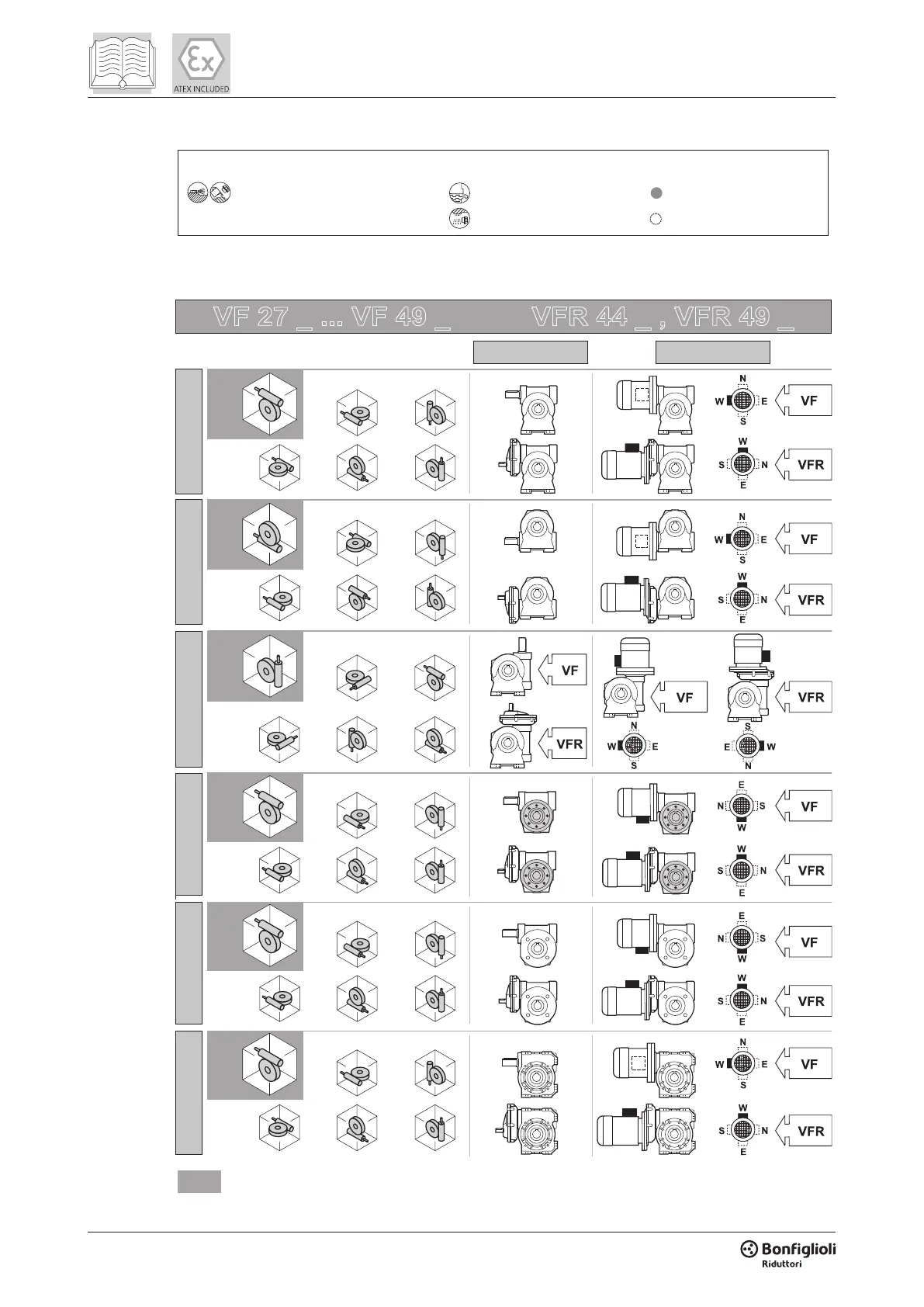

5.9.3 Mounting positions and service plugs
Legend:
Vent / ller plug
Level plug
Drain plug
Plug in sight
Plug not in sight
5.9.3.1 Wormgears, Serie VF:
U
B3
V6
B6
B7 V5
B8
VF 27 _ ... VF 49 _ VFR 44 _ , VFR 49 _
N
B3
V6B6
B7 V5
B8
V
B3
V6B6
B7 V5
B8
P
B3
V6B6
B7 V5
B8
F
B3
V6B6
B7 V5
B8
A
B3
V6
B6
B7 V5
B8
HS S - P (IEC)
Base mounting position. Gearboxes are plated only for base mounting position (B3). They can
nevertheless also be installed in any of the derived positions (B6, B7, B8, V5, V6). Mounting
position may not be changed after installation.
