BONFIGLIOLI W Series Installation Use And Service Manual
5
of 1
of 1 rating
54 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
44
Series S
P
F
A
1
1
1
A
1
A
1
1
Maximum permissible tilt during
handling: 15°
15°
1
5
°
MAX
1
Ring harness
Lift manually
(weight
£
15 kg)
M
Lift as per diagram A
A
M05
M1
M2
M3
M4
S1
01
MA
—
M
M
S2
01
MA
—
M
M
S3
01
MA
—
M
M
S4
01
AA
A
S5
01
AA
A
Reccomended:
solution
A
for
positioning.
45
47
Table of Contents
Default Chapter
3
Table of Contents
3
1 General Information
4
Purpose of the Manual
4
Equipment Identification
5
Glossary and Terminology
6
Requesting Technical Assistance
6
Manufacturer's Liability
6
2 Technical Information
7
Gear Unit Description
7
Conformity to Standards
7
Operating Limits and Conditions
8
3 Safety Information
9
Safety Standards
9
4 Handling and Transport
10
Packaging
10
Handling Instructions
11
Moving Packages
11
Moving the Equipment
11
Storage
12
5 Installation
13
Installing the Gear Unit
13
Gear Units with Solid Output Shaft
16
Gear Units with Hollow Output Shaft
16
Gear Units with Shrink Disk
17
Shaft Mounted Gear Units Series F
17
Installing an Iec-Standard Flanged Motor
18
6 Testing the Gear Unit
19
7 Using the Equipment
21
8 Maintenance
22
Routine Maintenance
23
Lubricants
25
Oil Change
25
Recommended/Permitted Oils
26
Checking Efficiency
28
Cleaning
28
Paint
28
9 Replacing Parts
29
Taking Apart of the Iec-Standard Flanged Motor
29
Scrapping the Gear Unit
29
10 Troubleshooting
30
Annex 1 - Checking Oil Level on Atex-Specified Gear Units
31
Annex 2 - Lubricant Charge Quantity
34
Helical In-Line Gear Units, Series C
34
Bevel Helical Gear Units, Series a
35
Shaft-Mounted Gear Units, Series F
36
Worm Gear Units, Series V
37
Worm Gear Units, Series W
38
Single-Stage Helical Gear Units, Series S
38
Annex 3 - Customer's Shaft
39
Series a
39
Series F
40
Series VF and W
41

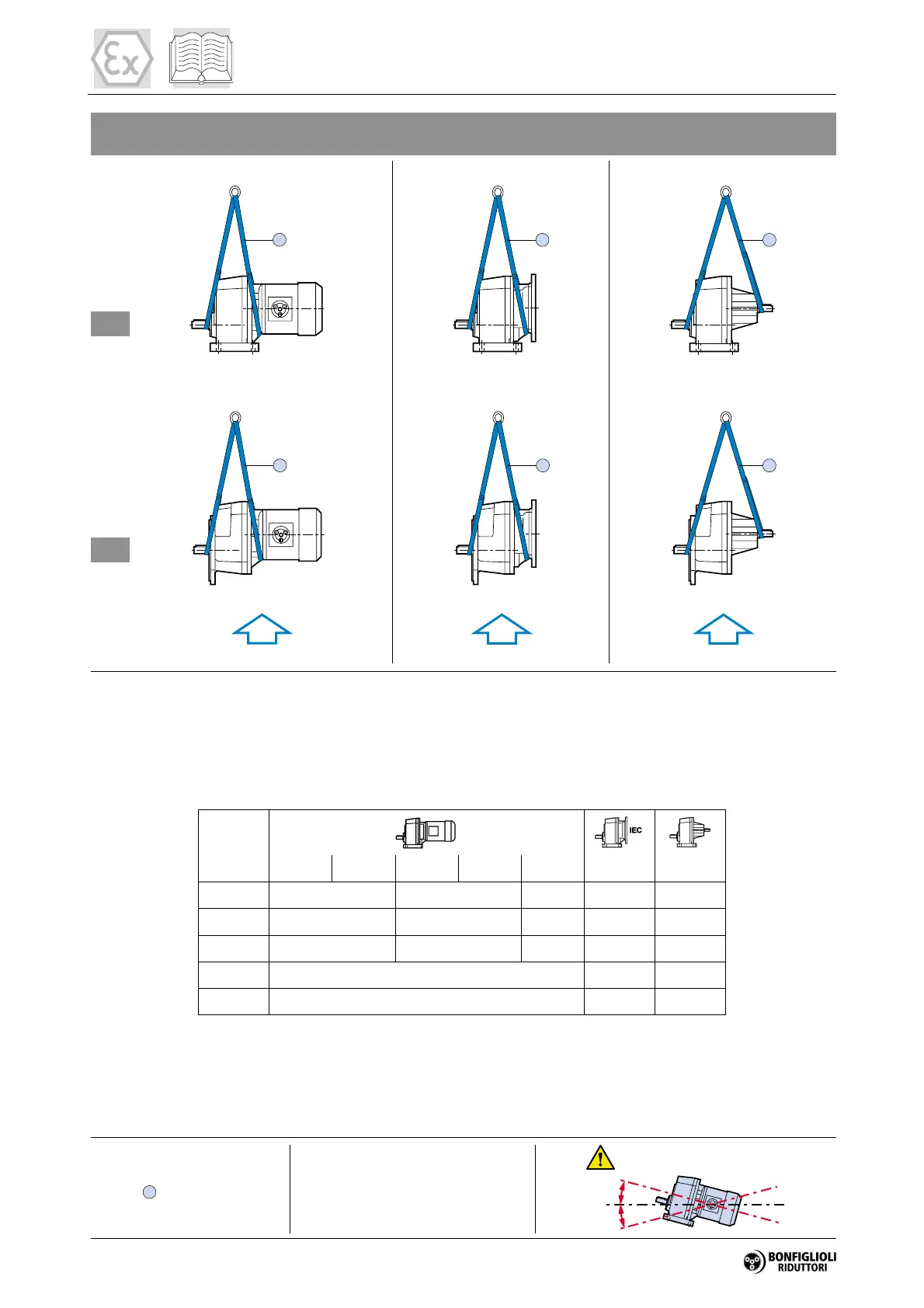

Annex 4 - Lifting
42
Annex 5 - Installing the Motor on Type Vfr Worm Gear Units
49
Annex 6 - Calibrating the Torque Limiter Slip Torque
50
Other manuals for BONFIGLIOLI W Series
Installation, Operation And Maintenance Manual
68 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the BONFIGLIOLI W Series and is the answer not in the manual?
Ask a question
BONFIGLIOLI W Series Specifications
General
Brand
BONFIGLIOLI
Model
W Series
Category
Engine
Language
English
