Boon FLAIR - Adjusting Seat Height and Using Brake; Adjusting Seat Height; Operating the Brake System

6

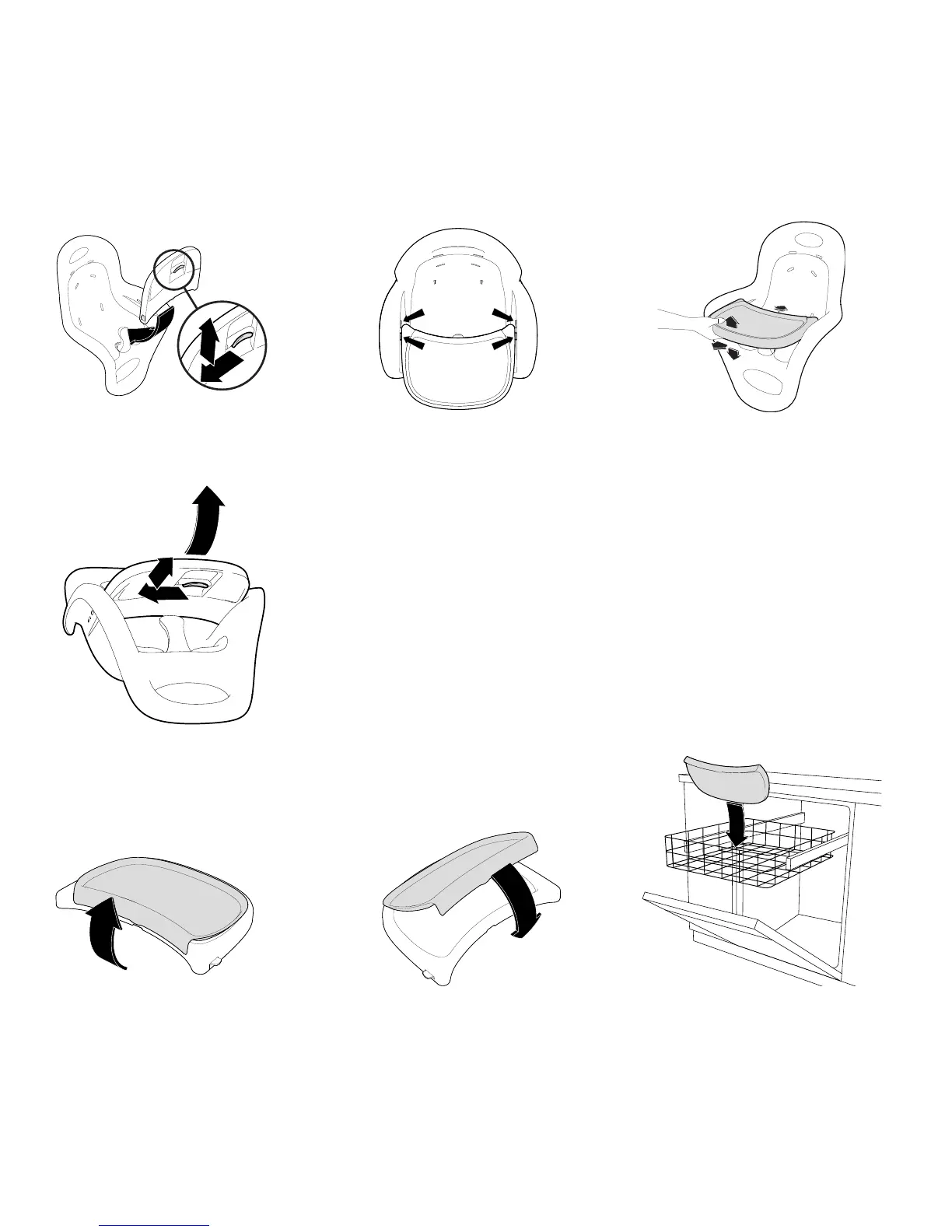

USING THE TRAY LINER
REMOVING TRAY LINER
Pull release tab at back of tray outward and lift up.
REINSERTING TRAY LINER
Place front edge of tray liner into the tray then clip back
edge over tray.
USING THE TRAY
REMOVING THE TRAY OR CHANGING
ADJUSTMENT POSITIONS
To release locking tabs: 1) slide orange handle to left, then
2) pull handle toward front of tray. Make sure that tabs have
retracted fully into the tray. Pull tray out or relocate to the other
adjustment position. DO NOT place tray in dishwasher or
submerse in water.
1
To release locking tabs: 1) slide orange handle to left,
then 2) pull handle toward front of tray. Place tray on seat
arm grooves.
2
Position locking tabs at appropriate slots. Tabs should fit
into slots in seat arms. There are two adjustment positions
for the tray. Make sure that tabs are aligned in same
adjustment position slots on BOTH sides of seat and
release the handle and slide lock.
3
Pull on tray to ensure that it is firmly in place.
1
2
3
2
1
ATTACHING THE TRAY
W WARNING
• The tray is not designed to hold the child in the seat.
The child should be secured in the highchair at all
times by the restraint system.
CLEANING TRAY LINER
The tray liner may be placed in the dishwasher for cleaning
(top rack only).
DO NOT place tray in dishwasher or submerse in water.
