Booth BAR2H - Model Numbering Convention; Spare Parts

Model N u m b e r i ng
Spare P a r t s

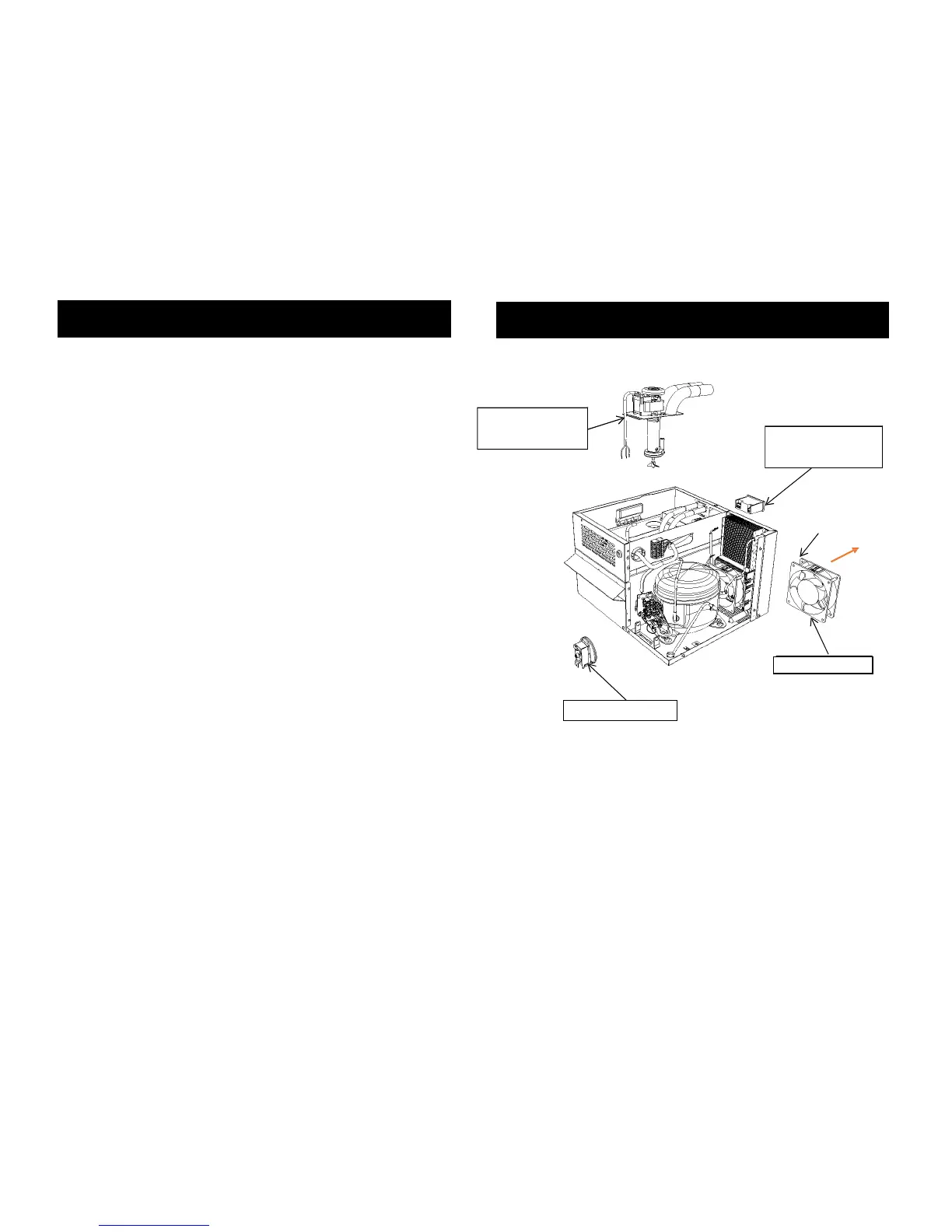

SPC8/2 Pump – 1 A 5176
SPC12/4 Pump – 1 A 5177
E li w e ll C on tr o ll e r – 1 A 5362
DFX C on tr o ll e r – 1 A 6310
4 9
UNIT NUMBER (BAR2H) (X) (Y) (Z)
KEY:
BAR2H
BASE TYPE
(X)
PUMP
(Y)
CONTROL OPTION
(Z)
NO OF COILS/DECK OPTION
REFERENCE
PART #
DESCRIPTION
(X)
PUMP
2
1A5176
SPC8/2 PUMP
4
1A5177
SPC12/4
(Y)
CONTROL
M
1A5361
MECHANICAL
E
1A5362
ELIWELL
D
1A6310
DFX CONTROL
(Z)
DECK
0
1A6305
NO COILS
1
1A6306
1 COIL
2
1A6307
2 COILS
3
1A6308
3 COILS
Mechanical Stat – 1A5361
1B5514 – Cooling Fan
Model Numbering Convention
Spare Parts
Electrical Connections
this side
D i r e c t i on o f
a i r fl o w
