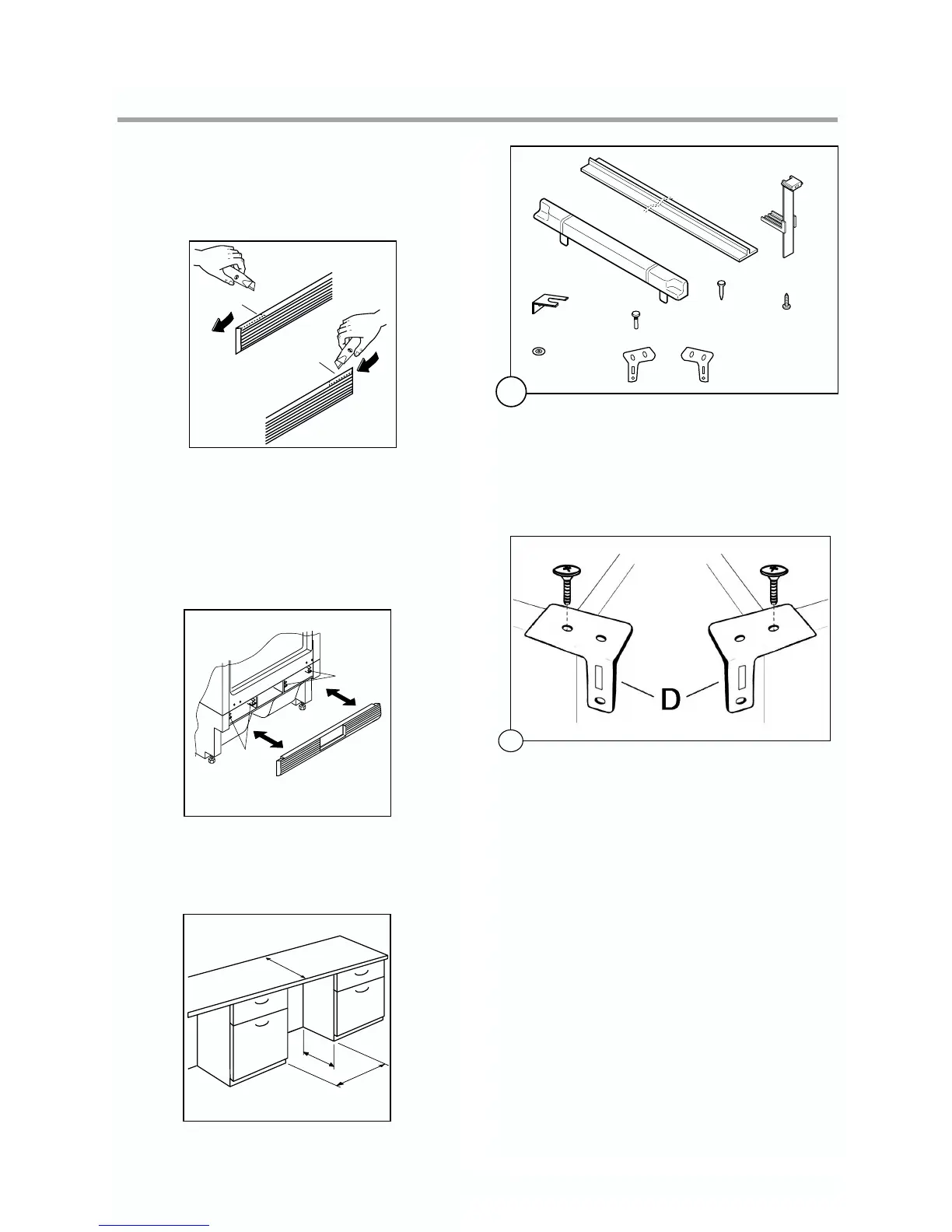

1. Installation kit
Building in the appliance under a worktop
Grid preparation
Left door opening:
Remove the left side (A) of the grid cutting it from the
rear (see figure).
Right door opening:
Remove the right side (B) of the grid cutting it from
the rear (see figure).
To position the grid on the appliance proceed as
follows:
Apply the grid to the base of the appliance by
pushing on to the clasps (a) until they click.
DO002/2
A
B
DO001
a
a
Building-in
Dimensions of the recess
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
DO013
600
550
min.
600
2. Two cabinet securing brackets (D) are supplied
with the installation pack. They need to be
assembled onto the cabinet prior to cabinet being
pushed into the Kitchen aperture.
- To fit these brackets remove the two screws at the
top left and right hand front corners of the cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
Left hand
bracket
Right hand
bracket
2
1xA
2xD
1xB
2xC
2xL
18xI
2xF
2xG
1xK
1
