3. Assembly drawings

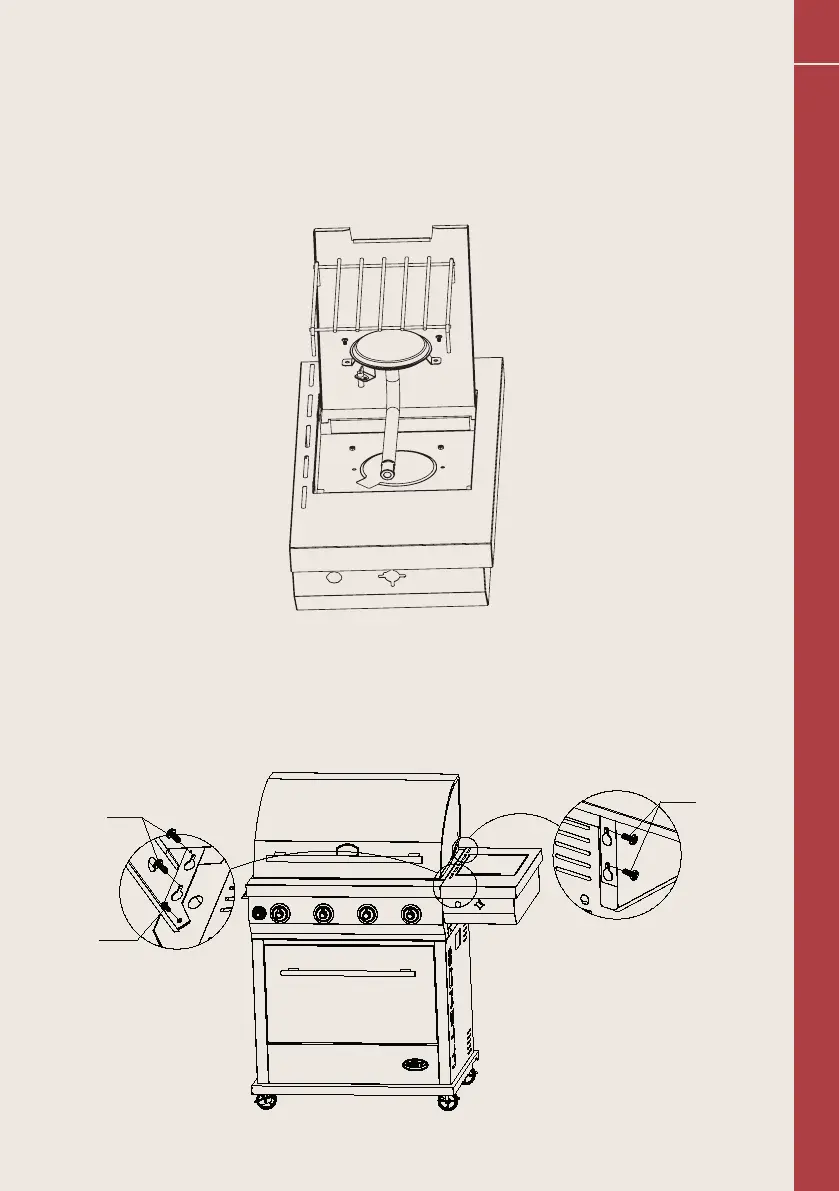

Step 1
Remove the pan stand and loosen the M4 nut and screw to unfasten the side
burner.
Step 2 - a) Loosen the 4x M6 and 1x M4 screws on the right side of the barbecue by
about 6 mm.
b) Slide the cut-outs of the side burner over the screws that you have
loosened.
c) Tighten the screws again in order to secure the side burner.
M4 screw
M4 screw
M4 screw
