ENBoretti Maggiore / User guide - Installation advice

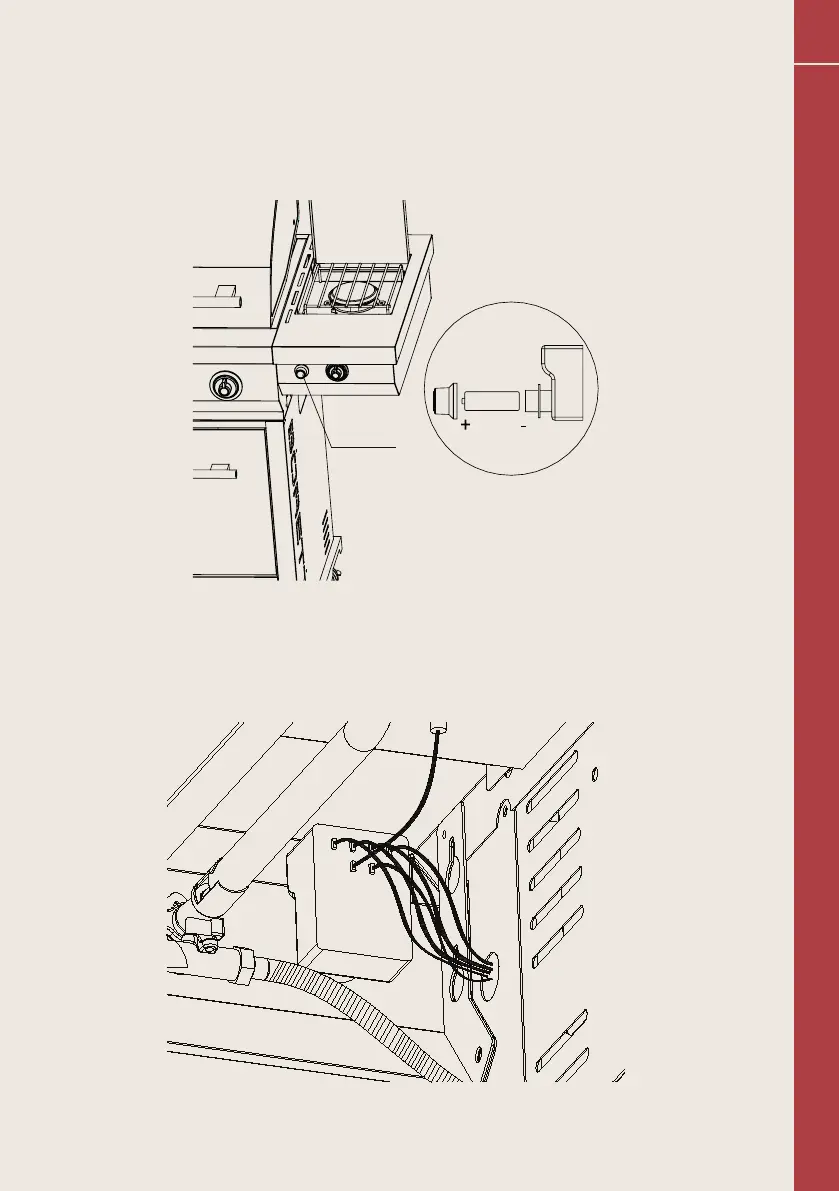

Step 5 - a) Slide the screw thread part of the igniter through the opening at the front
of the side burner and install the lock nut.
b) Place the battery in the holder with the + side facing forwards.
c) Screw the top on the igniter.
Electronic igniter
Step 6 - a) Connect the end of the side burner ignition cable with the electronic
igniter.
b) Connect the five wires that protrude from the side of the BBQ with the
electronic igniter.
