ENDPLATE BRACKET KIT INSTALLATION
The Borla CrateMuffler™ Endplate Bracket Kit allow the fabricator to create a service-removable hanger system. This approach also al-
lows unlimited customization (by the customer) in color-matching or polishing components for builders looking for creative detailing.
Borla Endplate Brackets bolt directly to the Borla CrateMuffler™ Endplates with slip-on U-Nuts and M6 bolts/washers. They can be rotat-
ed 90-degrees (4-positions) on Center-Exit Borla CrateMuffler™ allowing design flexibility. (Note: Endplate Brackets have (1) single-
position on Offset-Exit Borla CrateMuffler™).
Hangers are welded to Borla Endplate Brackets; hangers are inserted into rubber isolators (kit available separately, PN-60582). This system
allows the fabricator to complete a styled hanger tailored to the vehicle.

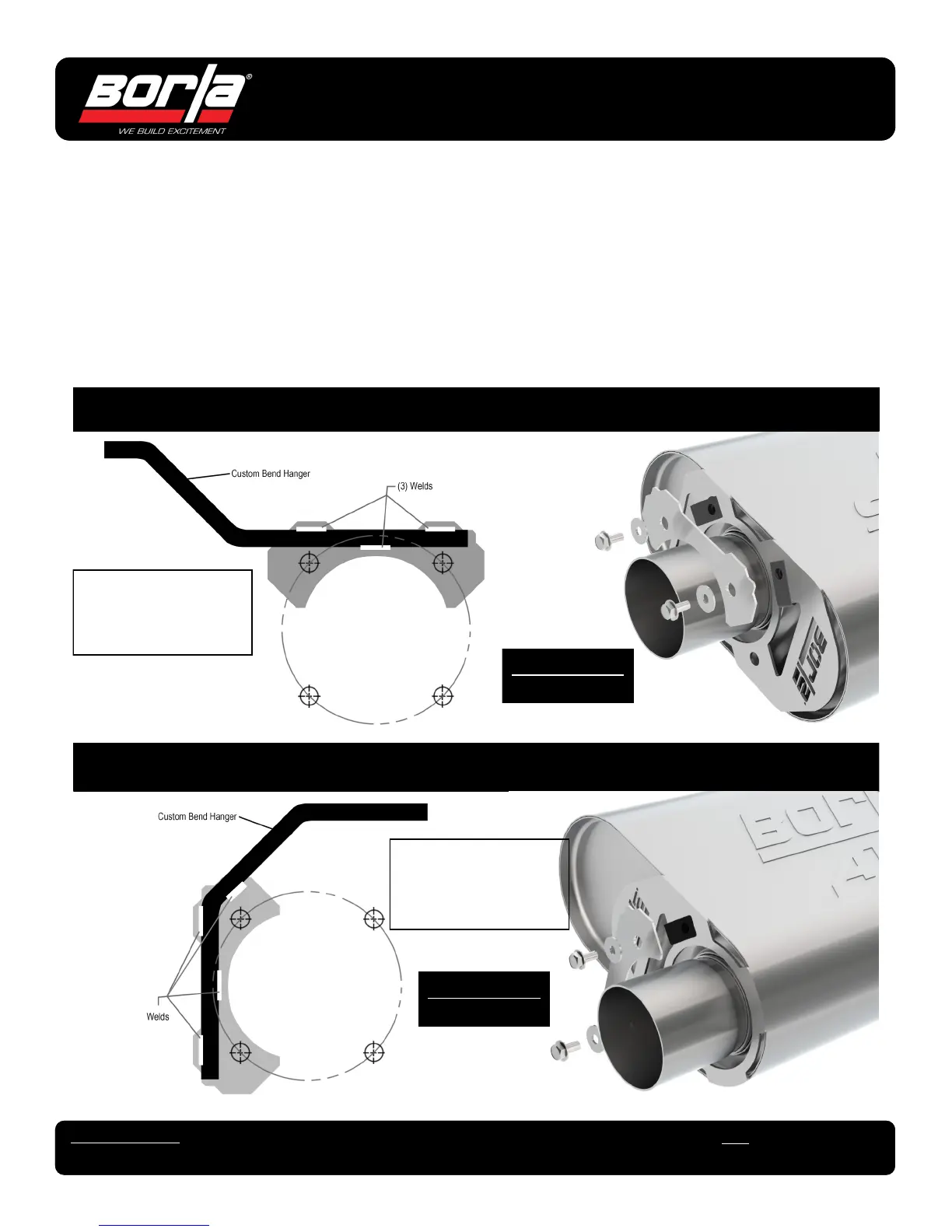

RECOMMENDED HANGER WELDS for a CENTER-EXIT ENDPLATE BRACKET
RECOMMENDED HANGER WELDS for a OFFSET-EXIT ENDPLATE BRACKET
M6 Bolt Torque:
6-10 ft. lbs.
M6 Bolt Torque:
6-10 ft. lbs.
(4)
NOTE: HANGERS IN
OPTIONAL KIT ARE IN
STRAIGHT SECTIONS. BEND
HANGERS AS REQUIRED
FOR INSTALLATION.
NOTE: HANGERS IN
OPTIONAL KIT ARE IN
STRAIGHT SECTIONS. BEND
HANGERS AS REQUIRED
FOR INSTALLATION.
