BORLA CrateMuffler - 8-Piece Bracket Kit Hanger Layout

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
7 of 8
BORLA PERFORMANCE INDUSTRIES
8-PIECE BRACKET KIT
The Borla 8-Piece Bracket Kit is designed to compliment Borla Endplate Brackets (PN-60581) and Borla Tubing Brackets
(PNs 60578, 60579, or 60580) which completes the Borla CrateMuffler™ system. This system enables the fabricator to de-
sign a styled hanger tailored to the vehicle.
M6 Bolt Torque:
6-10 ft. lbs.
ISOLATOR
9.5MM HANGER
8MM HANGERS

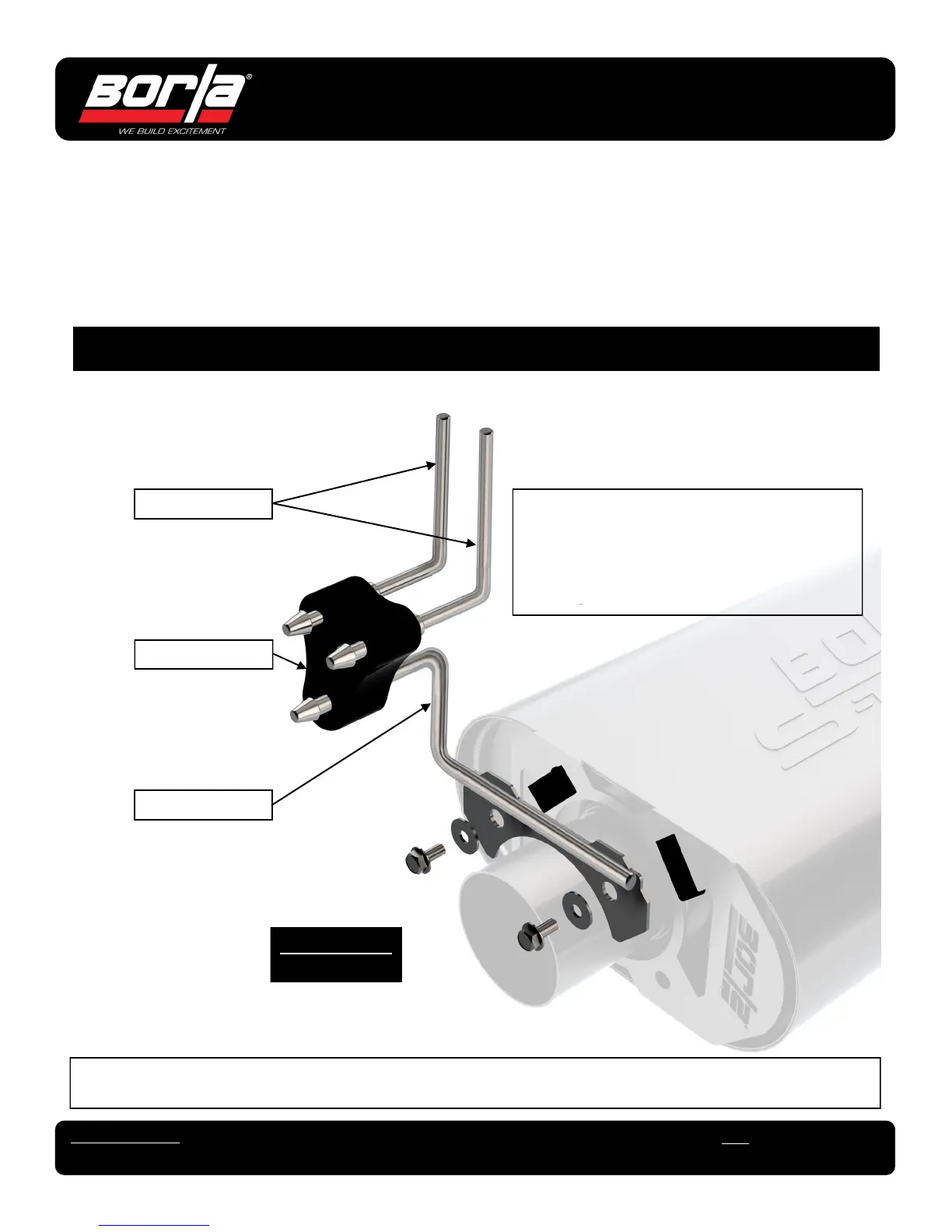

TYPICAL HANGER BEND LAYOUT - CENTER-EXIT CrateMuffler™ (LEFT-SIDE)
NOTE:
TYPICAL LEFT-SIDE INSTALLATION
IS SHOWN ON THIS PAGE.
PLEASE MIRROR THIS INSTALLATION
FOR RIGHT-SIDE INSTALLATION.
NOTE: HANGERS IN OPTIONAL KIT ARE IN STRAIGHT SECTIONS. BEND HANGERS AS REQUIRED FOR INSTALLATION.
