BORLA CrateMuffler - Tube Brackets Hanger Weld Locations

INSTALLATION GUIDE
CrateMuer™ Installaon Guide
PAGE
8 of 8
BORLA PERFORMANCE INDUSTRIES
TUBE BRACKETS
Borla Tube Brackets compliment Borla CrateMuffler™ aesthetics. They require less time to install (compared to bending
hanger rod to match tubing diameter) and with some creativity, there is flexibility to create a custom look.
Exhaust tubing is secured with welded Borla Tube Brackets, welded hangers inserted into rubber isolators (kit available sepa-
rately, PN-60582). This system allows the fabricator to complete a styled hanger tailored to the vehicle.
FRONT-SIDE WELD EXAMPLE
BACK-SIDE WELD EXAMPLE

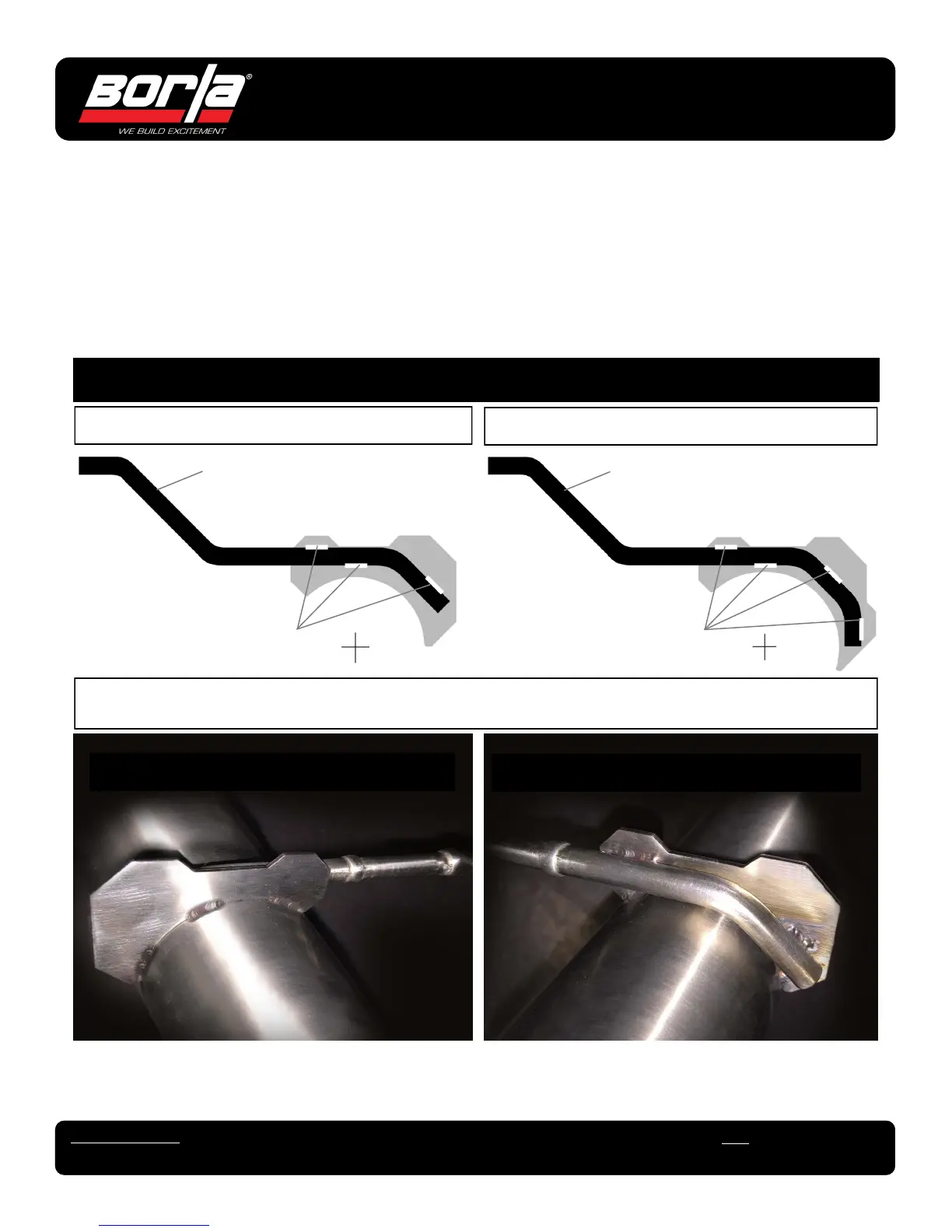

(RECOMMENDED) MINIMUM HANGER WELD LOCATIONS (BACK-SIDE)
Custom Bend Hanger
(4) Welds
60580 (3.00”)
Custom Bend Hanger
(3) Welds
60578 (2.25”) & 60579 (2.50”)
NOTE: HANGERS IN OPTIONAL KIT ARE IN STRAIGHT SECTIONS. BEND HANGERS AS REQUIRED FOR INSTALLATION.
