Page 10

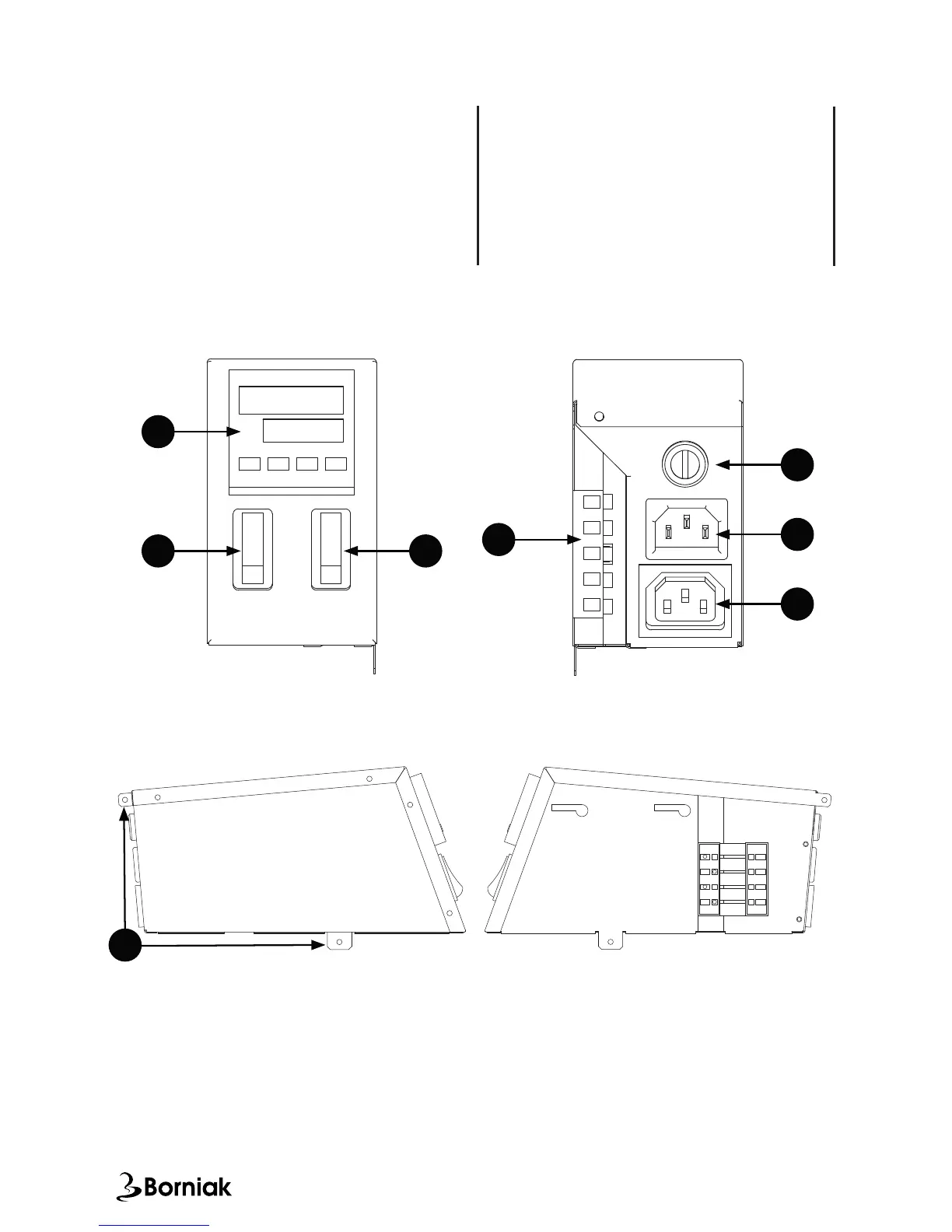

1. Display of the temperature controller
2. Smoker switch
3. Smoke generator switch
4. Fuse
5. Power outlet
6. Generator power outlet
7. Electrical connector
8. Holding and locking plates
DIGITAL CONTROL PANEL
The panel is used to control the temperature
in the chamber. We start the smoker with the
switch (2).
On the controller (1) - see p. 11 - set the
desired temperature. With the connector
(7), the controller controls the burner in the
smoker. With the switch (3), we activate the
smoke generator connected to the outlet (6).
4
FRONT BACK
LEFT RIGHT
5
6
7
1
2 3
8
