ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE
1. FEATURES & MODELS
This "Borum Industrial Drill Press" delivers precision and power... and is designed to handle the demands of a professional
workshop environment. With a powerful long-life industrial quality 3/4 HP motor (that's fully enclosed in a durable metal
hood) double-wide spindle bearings and a precision spindle, this is one very reliable drilling machine.
Equipped with 16 drilling speeds from 162 to 3,000rpm and a 16mm drilling capacity this robust and user-friendly drill press
is ideal for a busy maintenance workshop or small production factory.
Perfect for fabricators looking for a drill press that's rugged enough to handle the demands of light and medium duty
production work and accurate enough to consistently deliver precise results.
2. ASSEMBLY

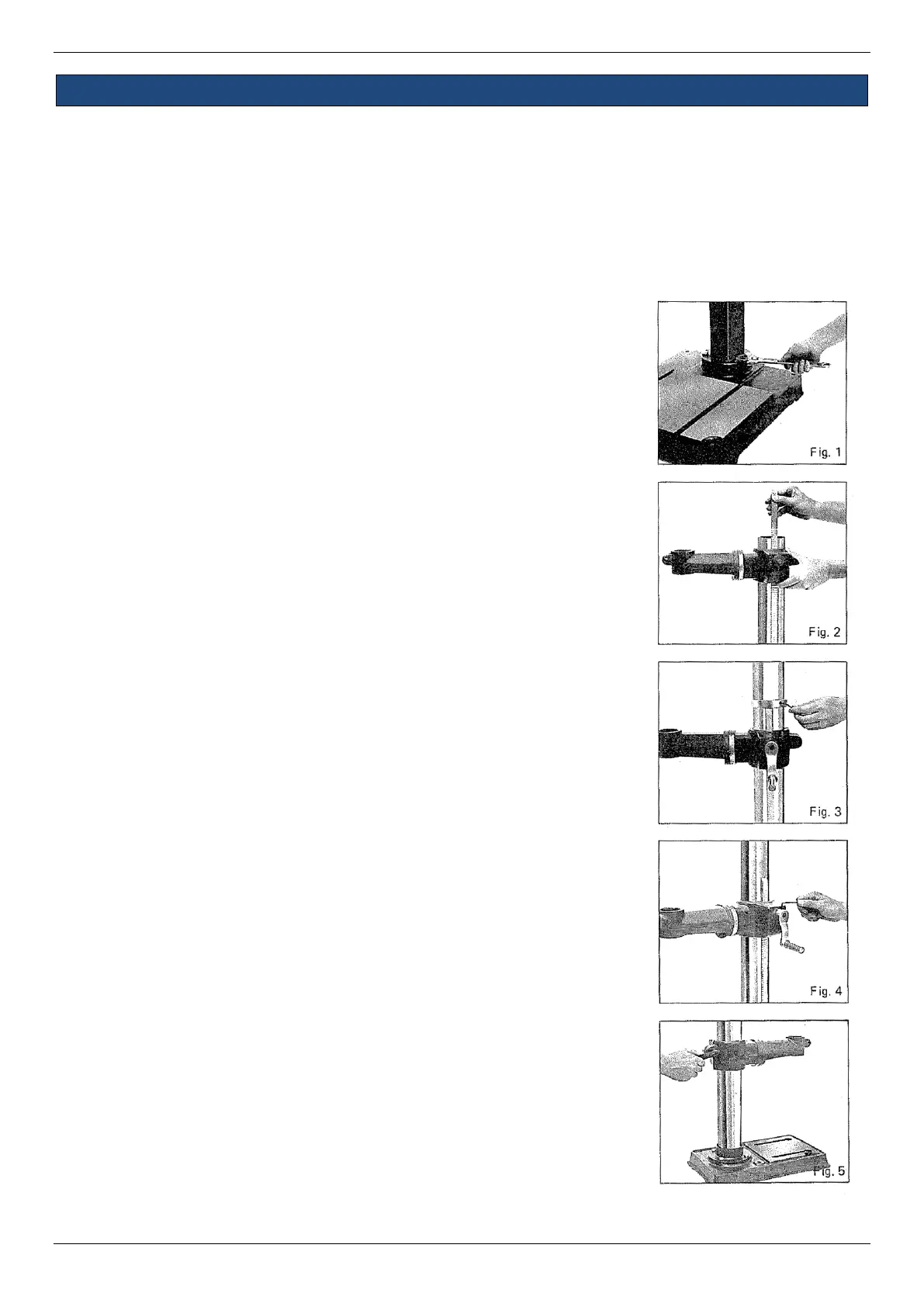

Fig 1. Column Assembly
1. Place column assembly on base and align holes on column support with
holes on base.
2. Secure the column with 4 bolts and washers (provided)
Fig 2. Table Bracket Installation
1. Remove collar and rack
2. Install table bracket and rack
Fig 3. Collar Installation
1. Install collar and tighten firmly
Fig 4. Bracket Installation
1. Install bracket, handle and clamp bolt
2. Tighten handle with attached set screw
Fig 5.
1. Install clamp bolt to tighten
To Next Page
